Embraco NEK6214Z Compressor

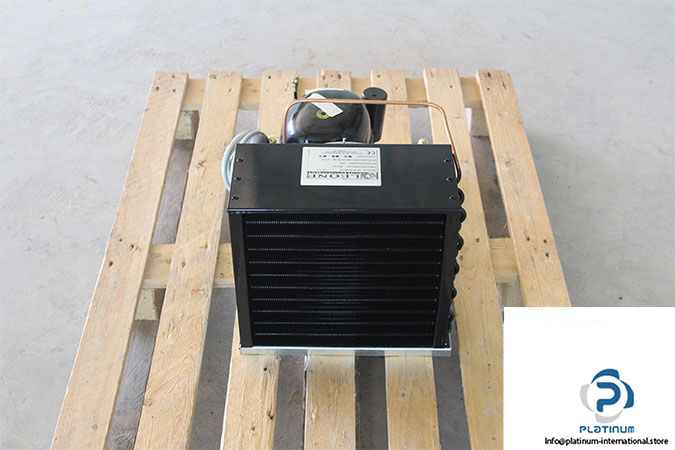

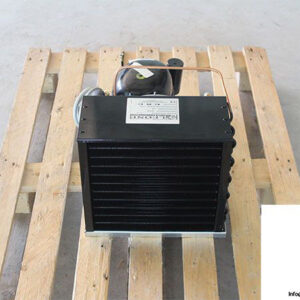

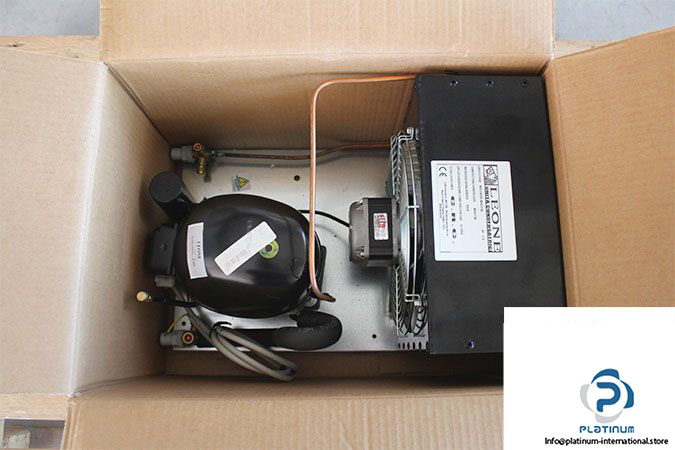

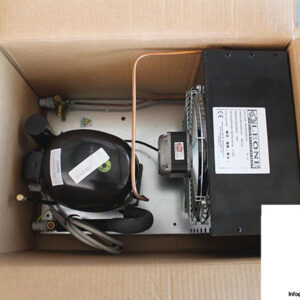

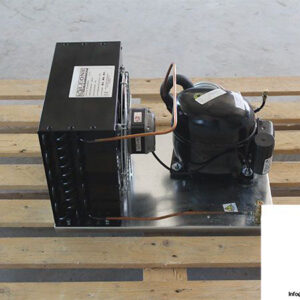

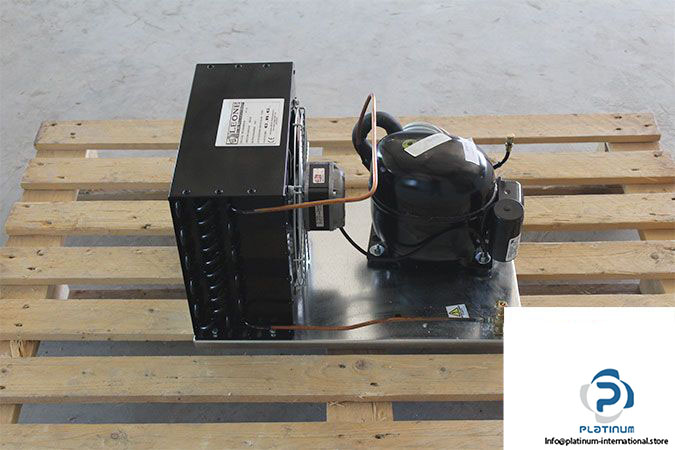

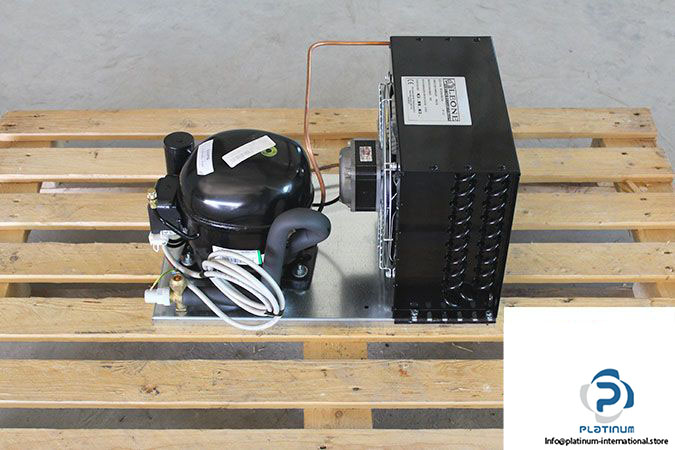

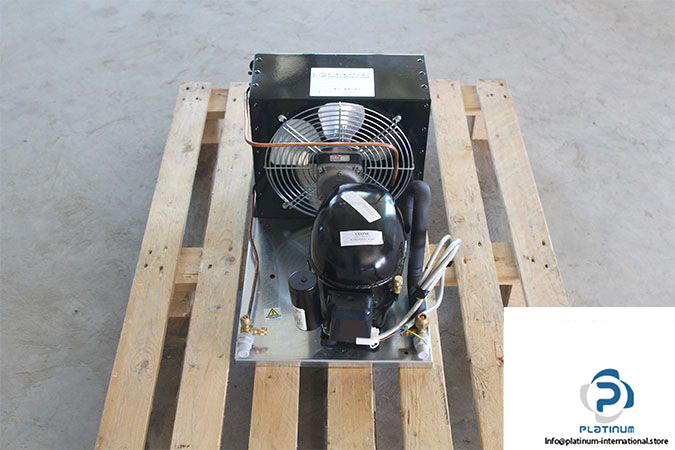

EMBRACO NEK6214Z COMPRESSOR WITH ELCO NET2T25PVN004 MOTOR

This complete compressor and motor assembly is ideal for refrigeration and cooling systems. The Embraco NEK6214Z single-phase compressor provides high efficiency with R-134a refrigerant compatibility, while the attached ELCO shaded pole motor ensures dependable airflow and consistent operation in commercial applications.

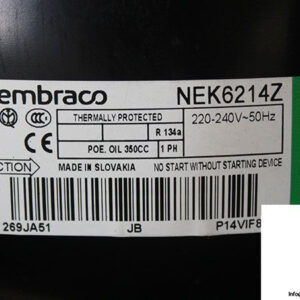

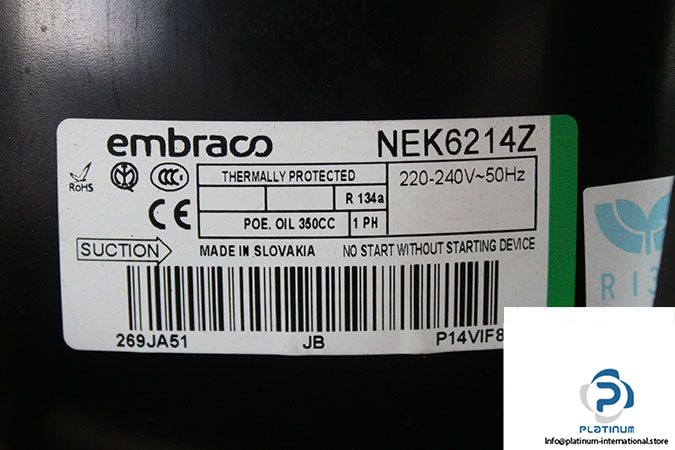

Manufacturer: Embraco
Type: Compressor
Model: NEK6214Z
Engineering Nr.: 269HA51
Phase: 1~ Single Phase

Technical Information “ Compressor

• Horsepower: ¾ Hp
• Rated Voltage: 220-240 V
• Displacement: 16.8 cm³
• Bore: 31.16 mm
• Stroke: 11.0 mm
• Temperature Range: -15 to 10 °C
• Lubricant Type / Viscosity: ESTER / ISO22
• Frequency: 50 Hz
• Refrigerant: R-134a
• Lubricant Charge: 350 ml

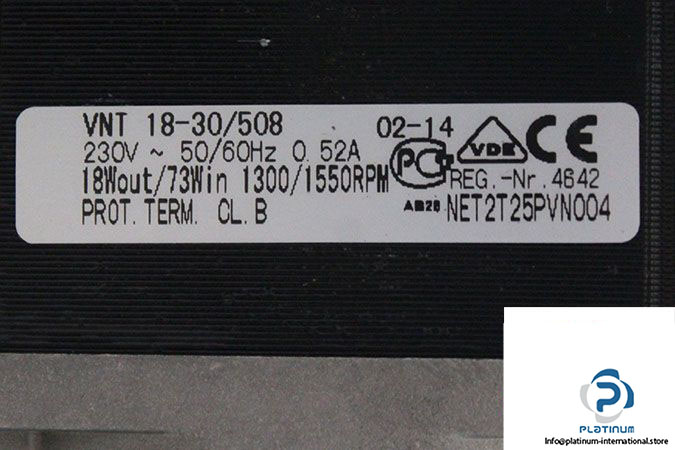

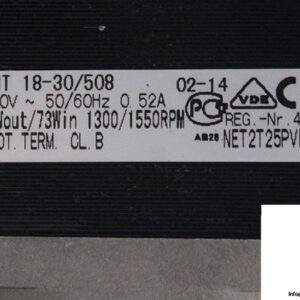

Attachment “ ELCO Shaded Pole Motor

Manufacturer: Elco
Type: Shaded Pole Motor
Model: NET2T25PVN004
Type Motor: VNT18-30/508

• Nominal Voltage: 230 V
• Rated Current: 0.52 A
• Power Input: 73 W
• Power Output: 18 W
• Frequency: 50/60 Hz
• Speed: 1300/1550 rpm
• Protection Degree: IP44
• Insulation Class: B
