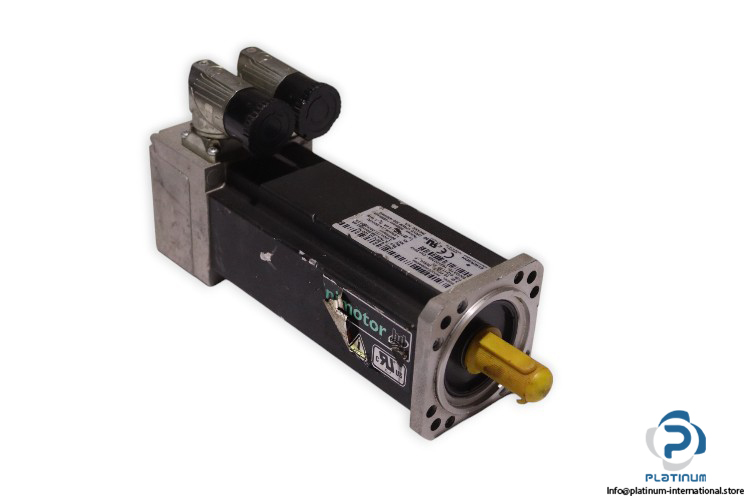

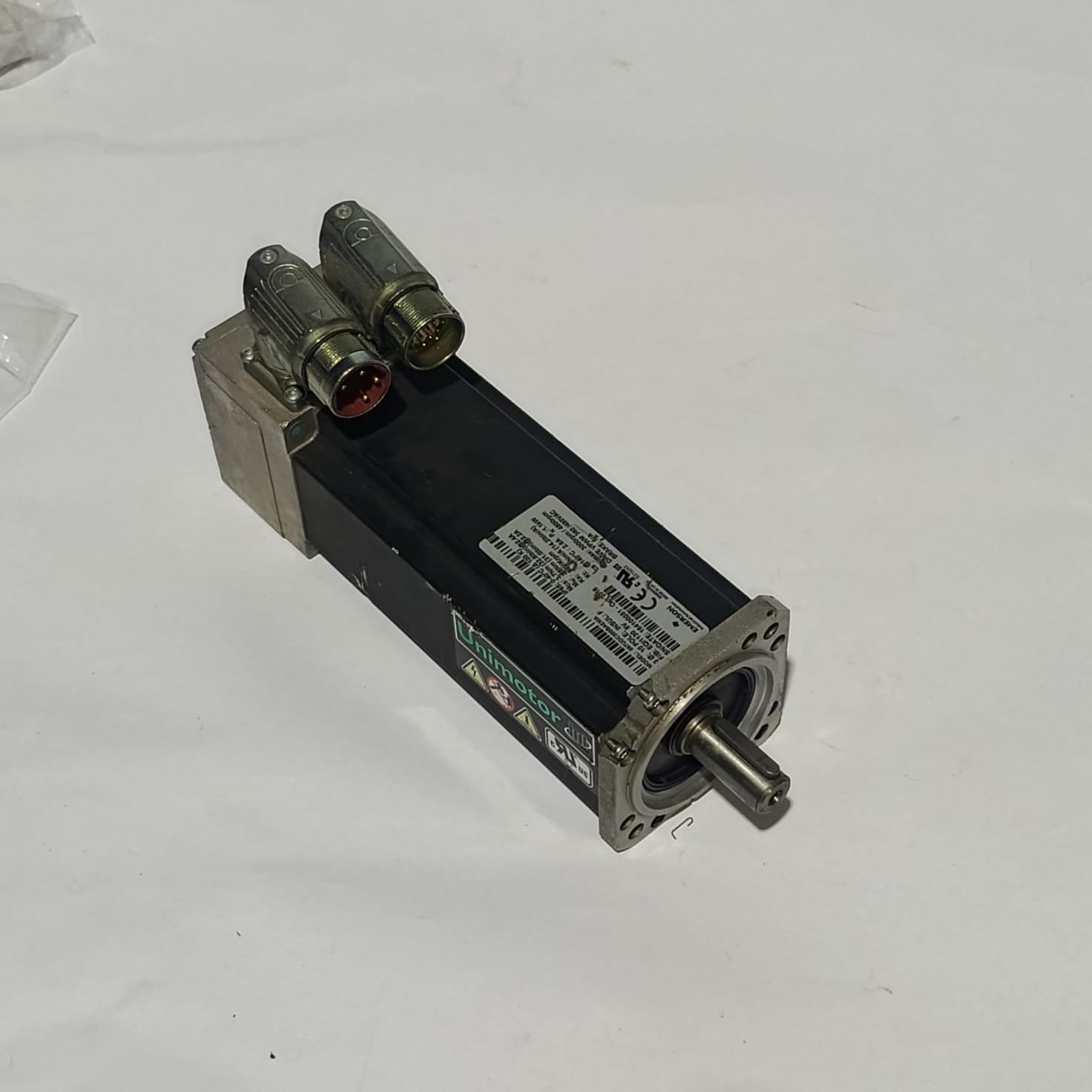

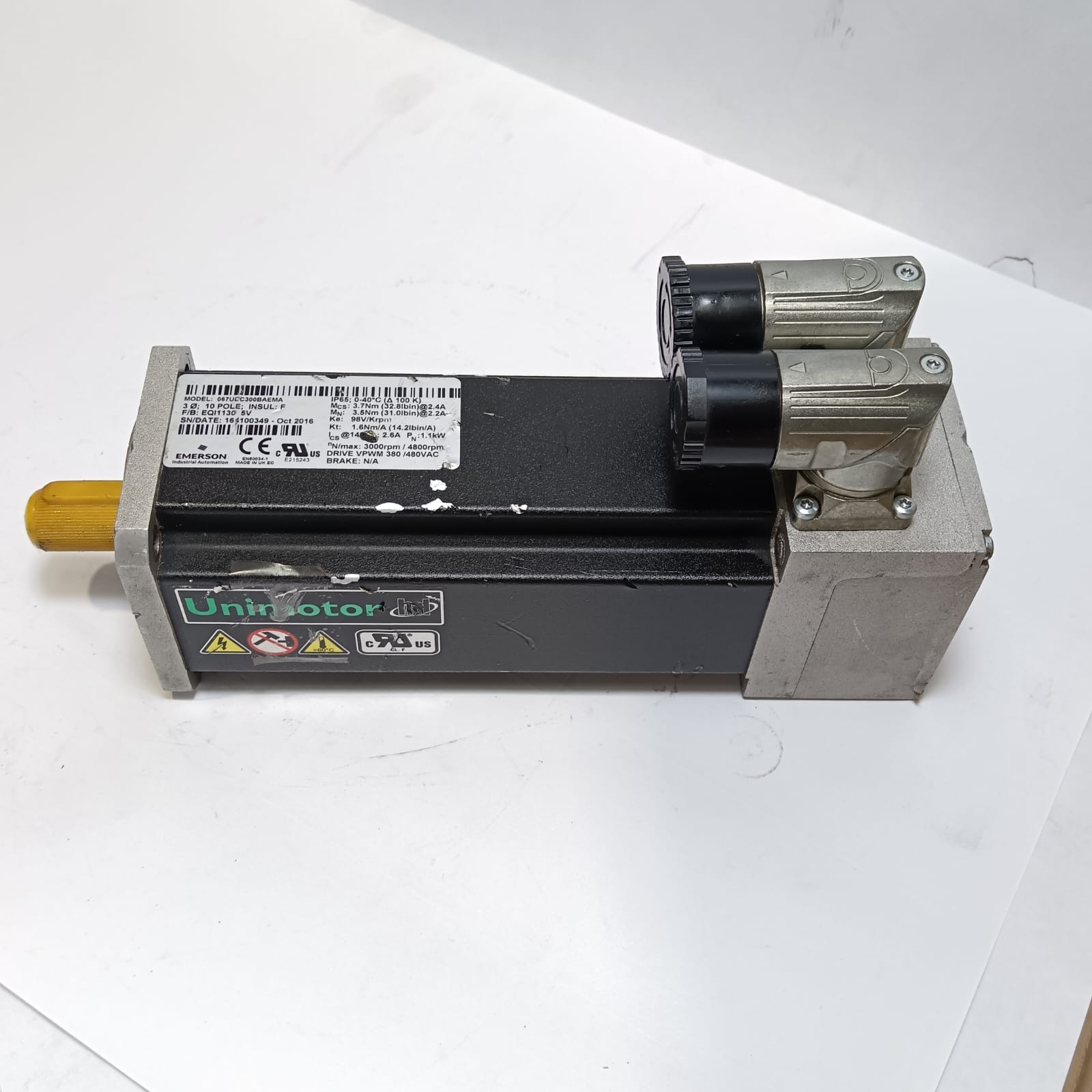

Emerson 067UDC300BAEMA Servo Motor
Manufacturer: EMERSON
Type: Servo Motor
Model: 067UDC300BAEMA
Rated Voltage: 380/480 VAC
Rated Power: 1.1 kW
Rated Torque: 3.5 Nm
Stall Torque: 3.7 Nm
Rated Current: 2.2 A
Stall Current: 2.4 A
Rated Speed: 3000 rpm
Max. Speed: 4800 rpm
Ke: 98 V/Krpm
Kt: 1.6 Nm/A
Protection Class [IP]: 65
Temperature: 0 … 40 ° C
Poles: 10
Insulation Class: F
