Emerson 115U3C305XAAEA115190-SBTD Servo Motor
Used
In stock1 unitReady to ship
servo motor
The EMERSON 115U3C305XAAEA115190-SBTD Servo Motor offers 2.98 kW rated power, 3000 RPM rated speed, and exceptional torque for reliable industrial use with an IP65 protection class.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

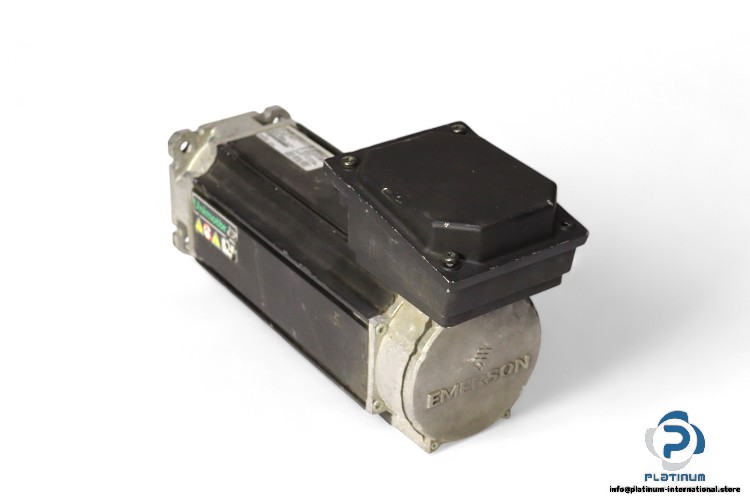

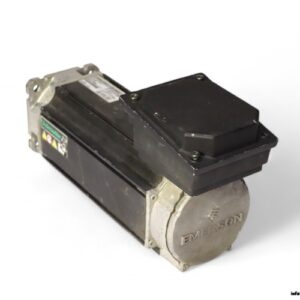

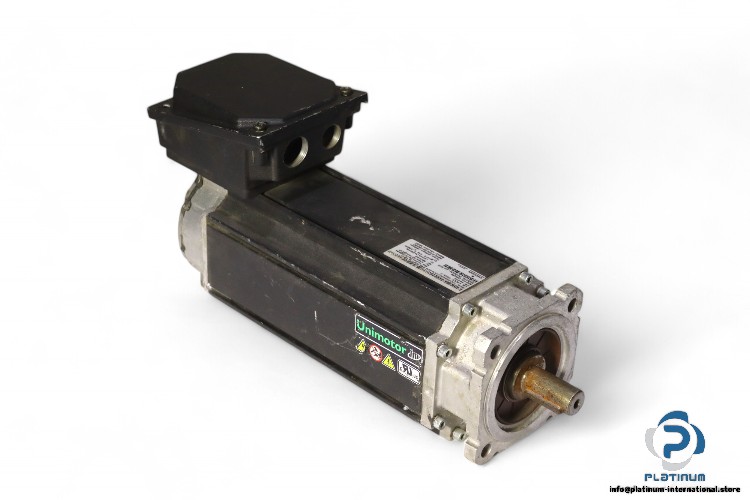

EMERSON 115U3C305XAAEA115190-SBTD SERVO MOTOR
The EMERSON 115U3C305XAAEA115190-SBTD Servo Motor is a high-performance motor designed for precision applications. With a rated power of 2.98 kW, rated speed of 3000 RPM, and exceptional torque characteristics, this servo motor delivers reliable performance for industrial and commercial use.
Manufacturer: EMERSON
Type: Servo Motor
Model: 115U3C305XAAEA115190-SBTD
MFN NO: 7085259

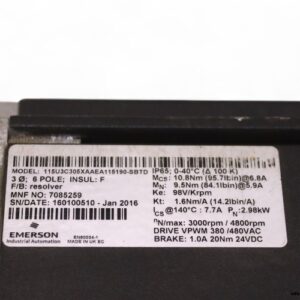

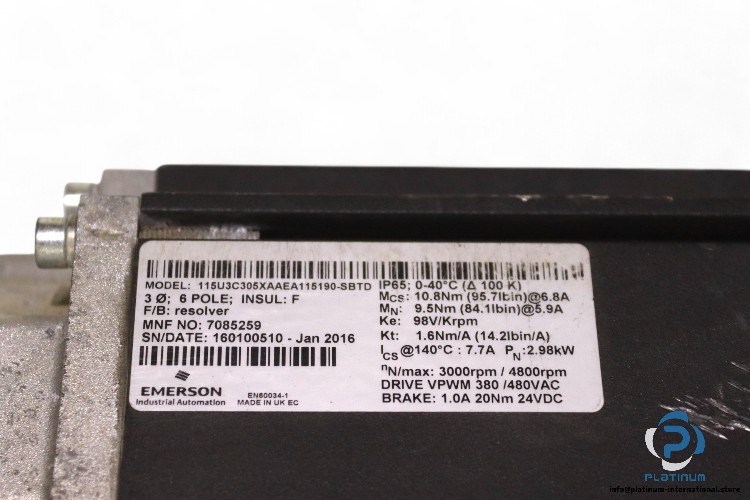

Technical Specifications
- Rated Voltage: 380/480 VAC
- Rated Current: 7.7 A
- Rated Power: 2.98 kW
- Rated Torque: 9.5 Nm at 5.9 A
- Stall Torque: 10.8 Nm at 6.8 A
- Rated Speed: 3000 RPM
- Max Speed: 4800 RPM
- Voltage Constant: 98 V/KRPM
- Torque Constant: 1.6 Nm/A
- Protection Class: IP65
- Insulation Class: F
- Number of Poles: 6
- Temperature Range: 0 to 40 °C
- Brake Voltage: 24 VDC
- Brake Current: 1 A
- Brake Torque: 20 Nm
