Endress Hauser FTL 361 DBQ7AB2K 1000 Level Limit Switch

Manufacturer: ENDRESS HAUSER

Type: LEVEL LIMIT DETECTION

Model: LIQUIPHANT II

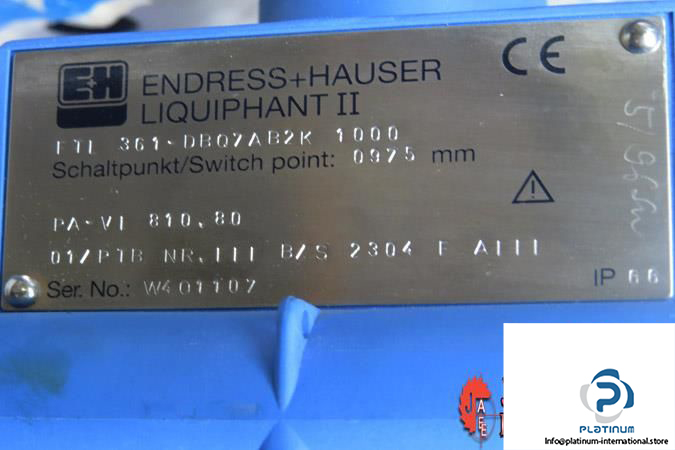

Order code: FTL361-DBQ7AB2K

Ser. No.: W401107

Version: with extension tube

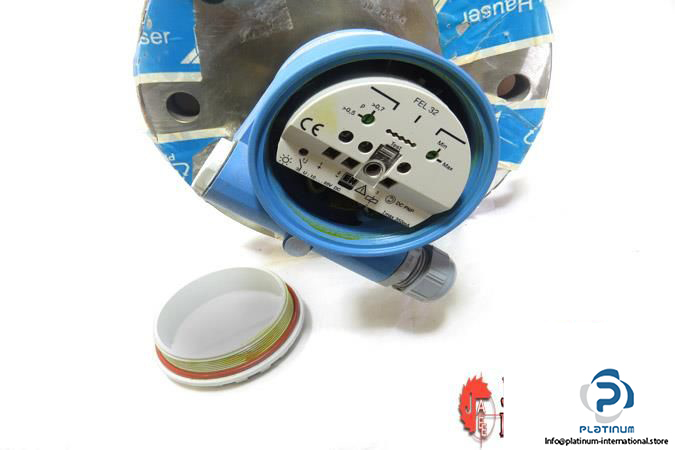

Electronic insert: FEL 32 Three-wire DC connection PNP

Application: for all liquids

MAX. temp.: 150 °C

Density: greater than 0.5 g/cm3

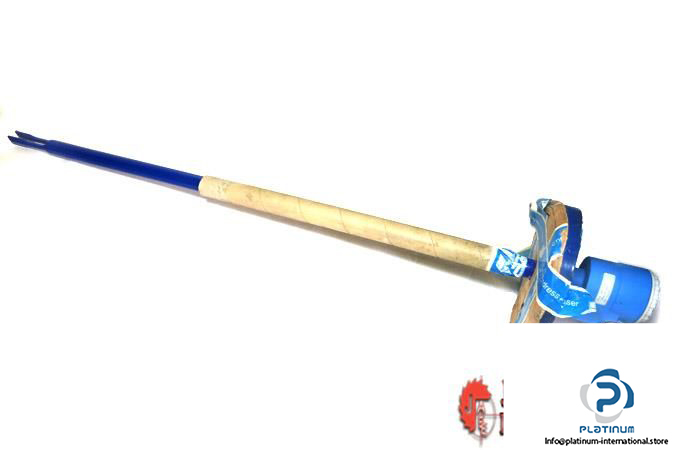

Probe length: 1000 mm

Switch point:  975 mm

Operating voltage: 10 V … 55 V

Continuous load: max. 350 mA

Current consumption: max. 15 mA
