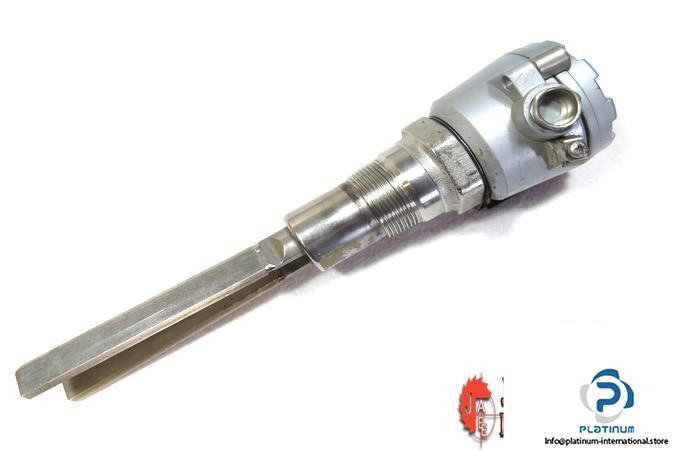

Endress Hauser FTM930Z-GN1DPSS Level Limit Switch

Manufacturer: ENDRESS HAUSER

Type: LEVEL LIMIT SWITCH

Model: SOLIPHANT

Order Code: FTM930ZGN1DPSS

Sensor Version: COMPACT

Electronic inserts: EM12

Load Connection: PNP

Electrical Connection: 3-wire DC

Operating Pressure: max. 16 bar

Power Supply: 10 V…55 V

Permanent load: max. 350 mA

Current Consumption: max 15 mA

Minimum bulk solids density: approx. 30 g/l

Protection Class: IP55

Process connection: thread R 11/2″ DIN 2999 (conical)

Probe length: 230 mm

Ambient Temperature: -20 … + 80 °C

Weight: 1.4 Kg

Condition: New
