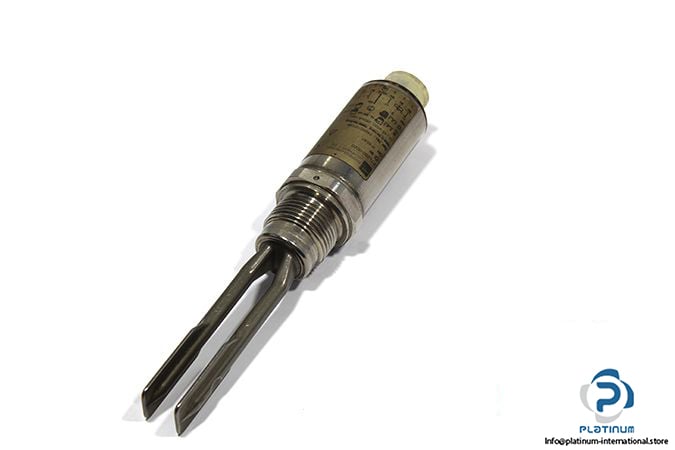

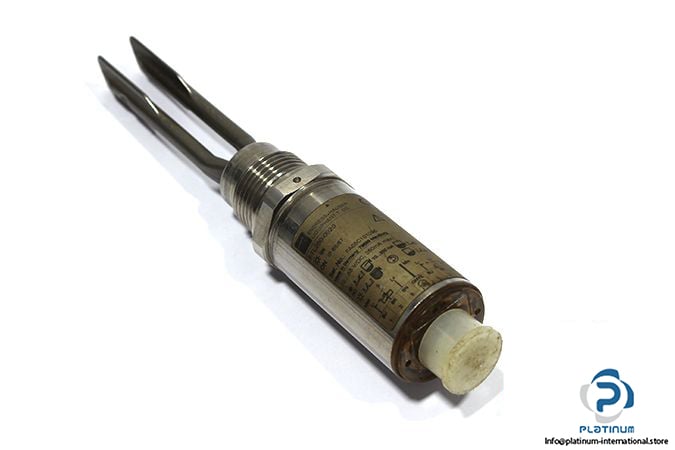

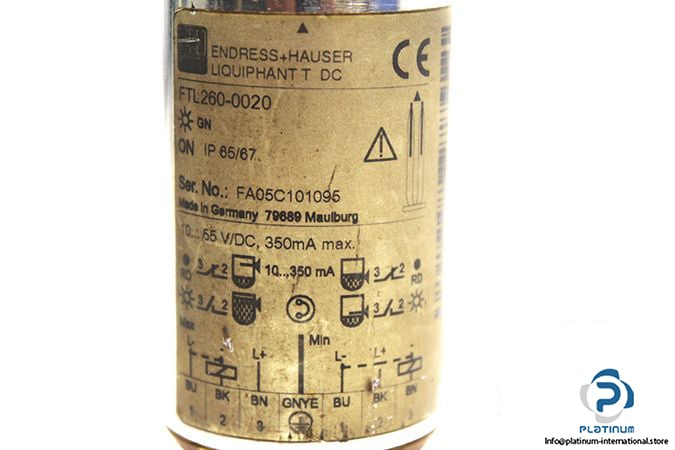

ENDRESS HAUSER FTL260-0020 POINT LEVEL SWITCH without plug

Manufacturer: ENDRESS HAUSER

Type: LEVEL LIMIT SWITCH

Family: LIQUIPHANT T

Model: FTL 260-0020

Sensor Version: COMPACT

The Liquiphant is a limit switch for liquid level detection in storage  tanks, tanks with agitators, and piping.

It can be used as an alternative to float switches as well as in applications where build-up, turbulence, liquid flow and gas bubbles are present.

Switch point: 118 mm

Supply Voltage: 10 … 55 V DC

Electrical Connection: 4-pin DC-PNP

Process Pressure Absolute: Vacuum … 40 bar

Density of Medium: min. 0.7 g/cm3

Rated Current: max 350 Ma

Probe Length: 130 mm

Process Connection: G 1 A, DIN ISO 228 / I

Connector: Valve Plug

Protection Class: IP67

Process temperature: -40 … 150°C

Ambient temperature: -40 … 70 °C

Weight: 0.43 kg
