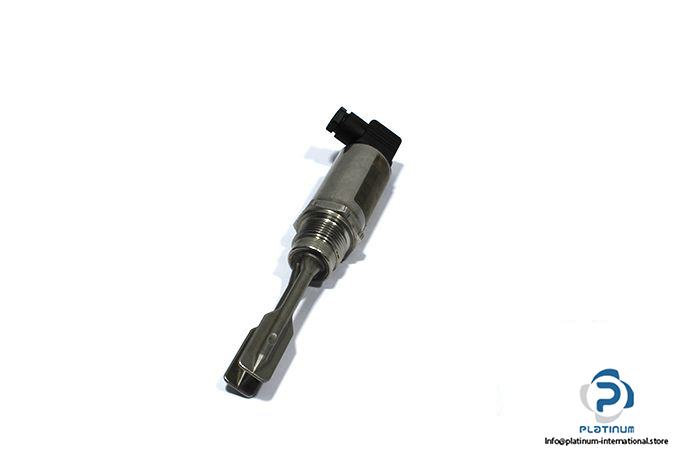

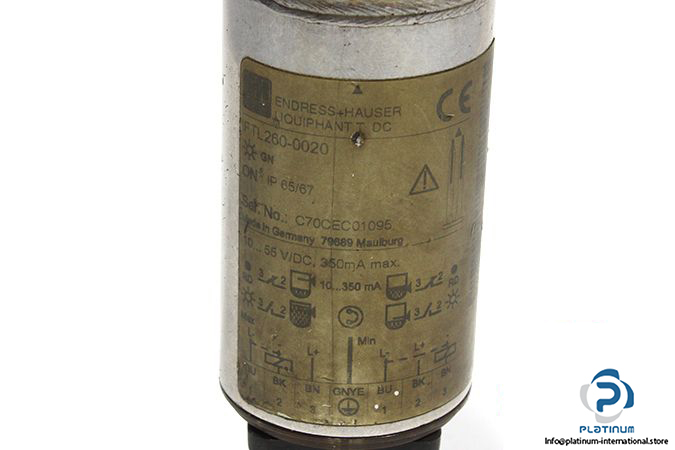

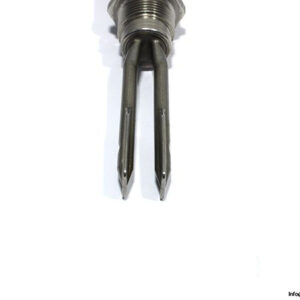

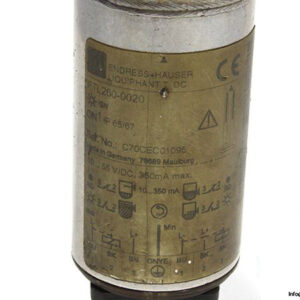

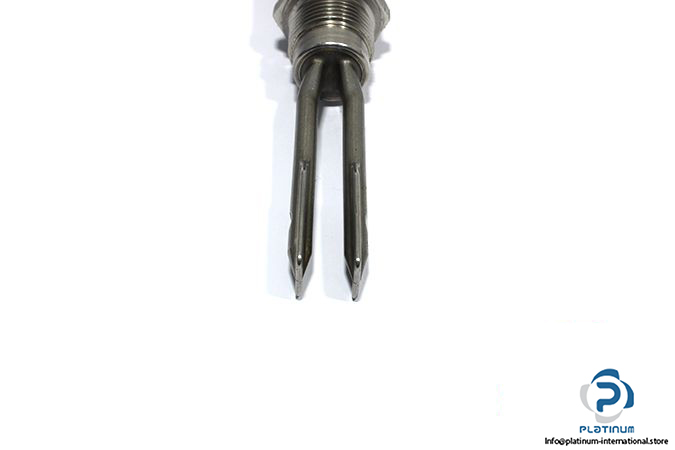

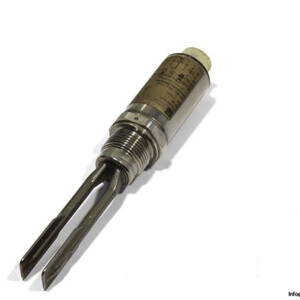

Endress Hauser FTL260-0020 Point Level Switch

Manufacturer: ENDRESS HAUSER

Type: LEVEL LIMIT SWITCH

Family: LIQUIPHANT T

Model: FTL 260-0020

Sensor Version: COMPACT

Switch point: 118 mm

Supply Voltage: 10 … 55 V DC

Switch Output: 3-wire DC-PNP

Process Pressure Absolute: Vacuum … 40 bar

Density of Medium: min. 0.7 g/cm³

Rated Current: max 350 mA

Probe Length: 130 mm

Process Connection: G 1 A, DIN ISO 228 / I

Connector: Valve Plug

Protection Class: IP67

Process temperature: -40 … 150°C

Ambient temperature: -40 … 70 °C

Weight: 0.43 kg
