Endress+Hauser DP62D-16071/0 Differential Pressure Flow Measurement System
Differential Pressure Flow Measurement System
Endress+Hauser Deltatop system designed for accurate air flow measurement using differential pressure technology with integrated Deltabar S transmitter and industrial-grade manifold assembly.Endress+Hauser Deltatop Differential Pressure Flow Measurement System

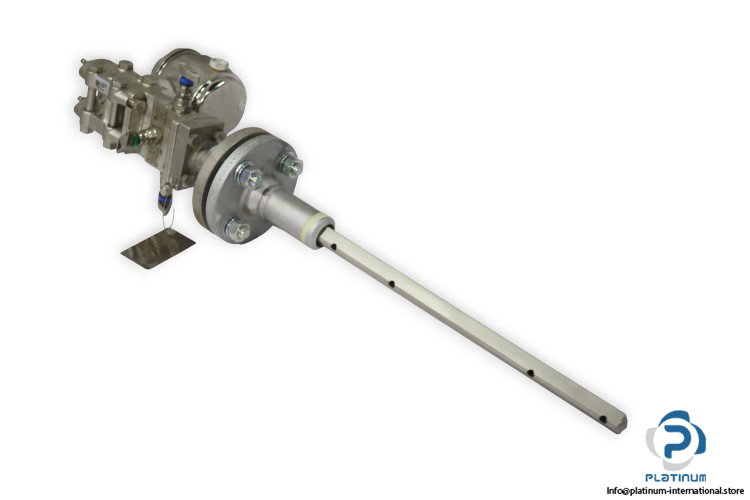

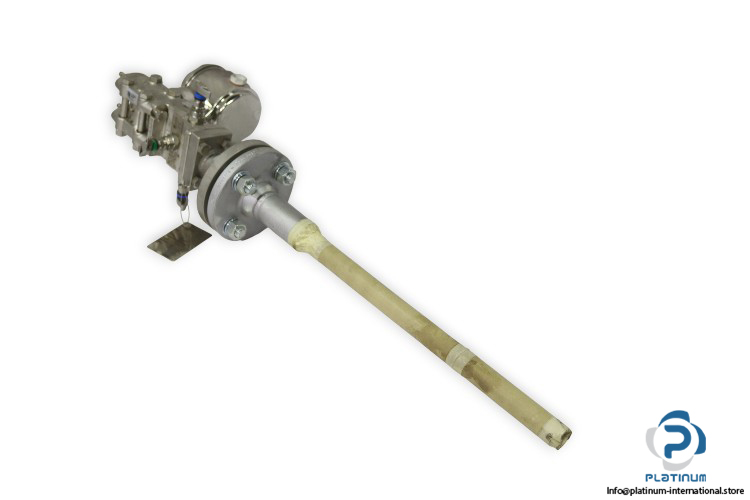

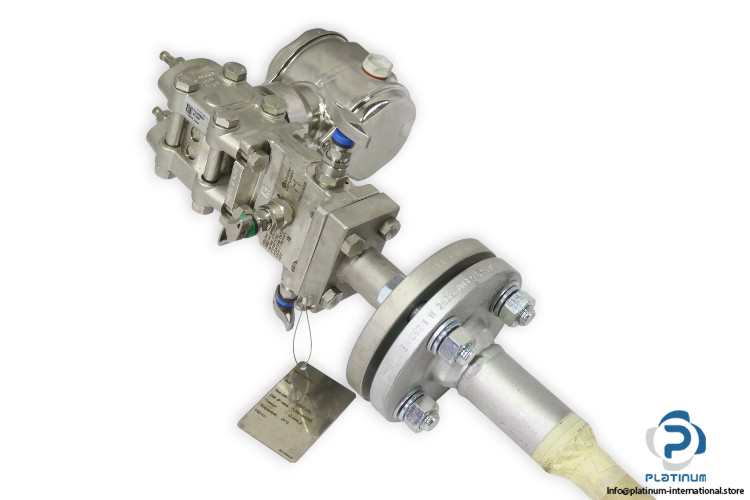

The Endress+Hauser Deltatop is a high-precision differential pressure flow measurement system engineered for accurate and reliable flow monitoring in industrial process applications. Designed for air flow measurement in large pipelines, the system integrates a primary flow element, transmitter, and manifold assembly to ensure stable performance and dependable measurement in demanding environments.
Manufacturer: Endress+Hauser
Type: Differential Pressure Flow Measurement System
Model: Deltatop

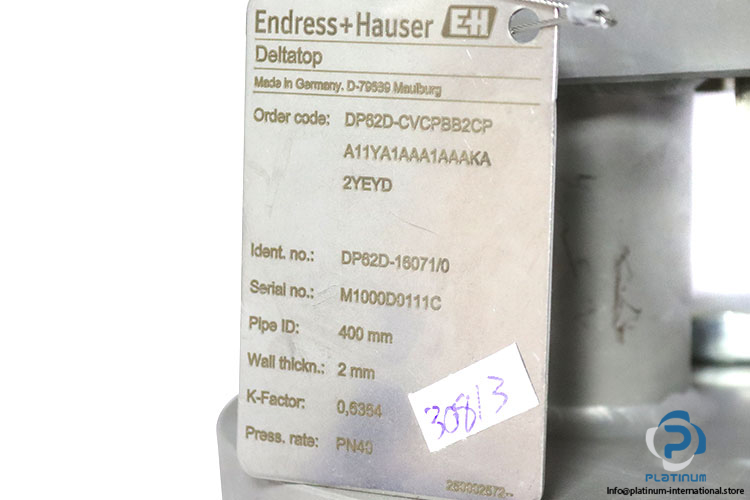

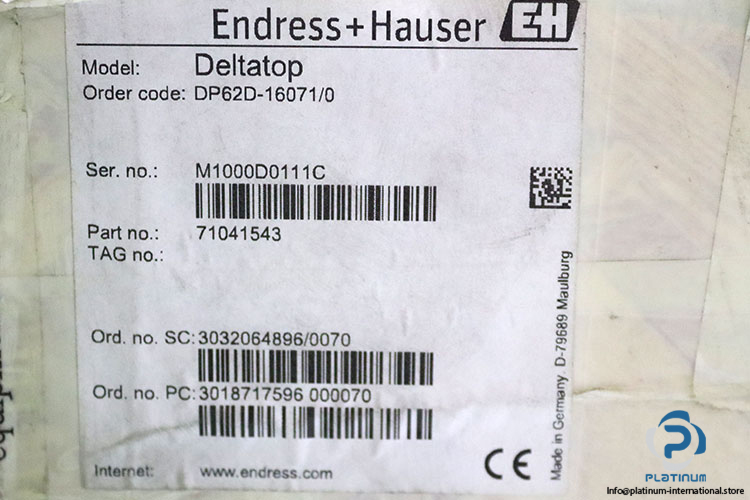

ID. No.: DP62D 16071/0
Order Code (Full): DP82D-CVCPBB2CP A11YA1AAA1AAAKA 2YEYD
Serial No.: M1000D0111C
Part no.: 71041543
Ord. no. SC: 3032064896/0070
Ord. no. PC: 3018717596 000070
Transmitter Attachment
Materials
Compliance
CE
IEC
EAC
Manifold Attachment

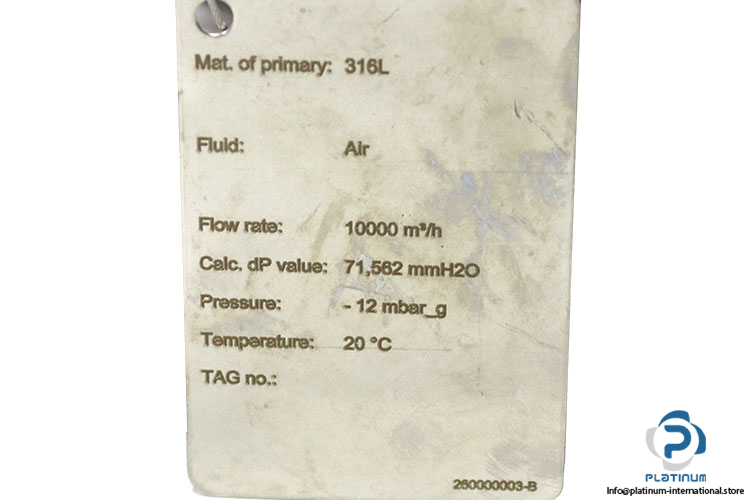

| Fluid | Air |
| Flow Rate | 10000 m³/h |
| Calculated Differential Pressure (dP) | 71.562 mmH‚‚O |
| Pressure Rating | 40 bar |
| Process Pressure | -12 mbar (gauge) |
| Process Temperature | 20 °C |
| Pipe Inner Diameter | 400 mm |
| Pipe Wall Thickness | 2 mm |
| Primary Element Material | 316L Stainless Steel |
| K-Factor | 0.6394 |

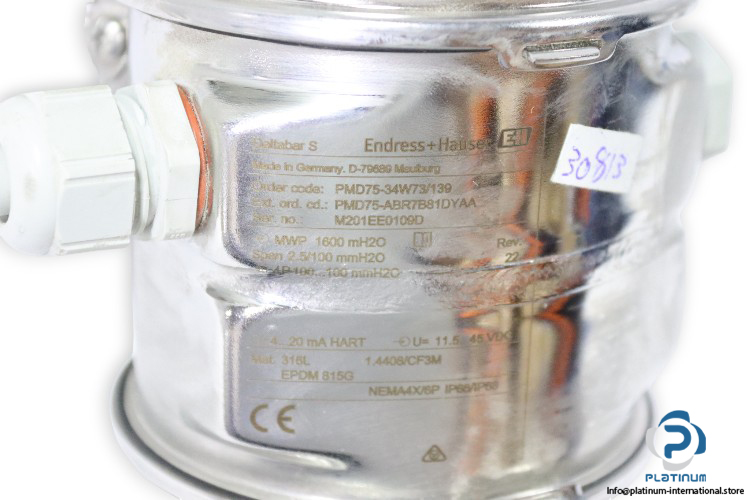

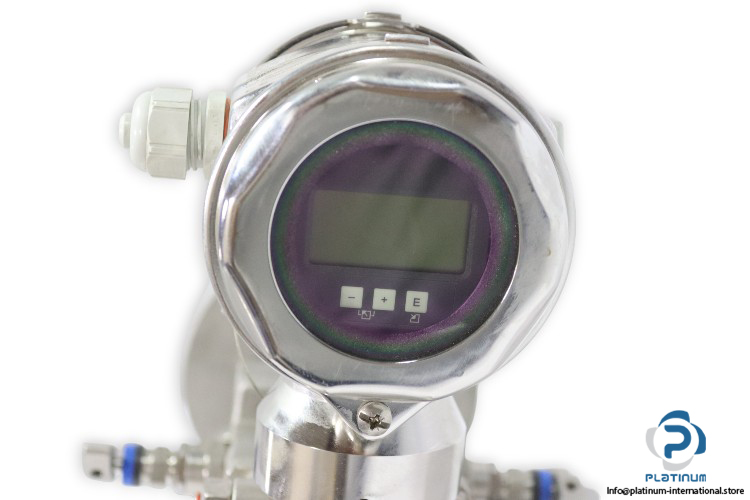

| Transmitter Model | Deltabar S |
| Order Code | PMD75-34W73/139 |
| Extended Order Code | PMD75-ABR7B81DYAA |
| Serial Number | M201EE0109D |
| REV. | 22 |
| Output Signal | 4 “ 20 mA HART |
| Supply Voltage | 11.5 “ 45 V DC |
| Maximum Working Pressure (MWP) | 1600 mH‚‚O |
| Maximum Differential Pressure | 2.5/100 mmH‚‚O |
| Lower Measuring Range | -100 to 100 mmH‚‚O |
| Process Wetted Material | 316L Stainless Steel |
| Additional Material | 1.4408 / CF3M |
| Seal Material | EPDM 815G |
| Protection Class | NEMA 4X / 6P |
| Ingress Protection | IP65 / IP68 |

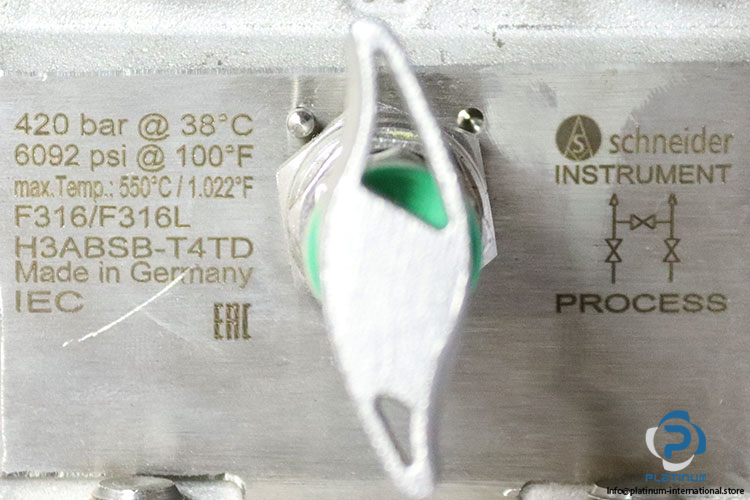

| Maximum Pressure | 420 bar at 38°C |
| Equivalent Pressure | 6092 psi at 100°F |
| Maximum Temperature | 550°C / 1022°F |
| Material | F316 / F316L |
| Recommendation | Ideal for accurate air flow monitoring in large pipelines and industrial process systems where reliable differential pressure measurement is critical. |
