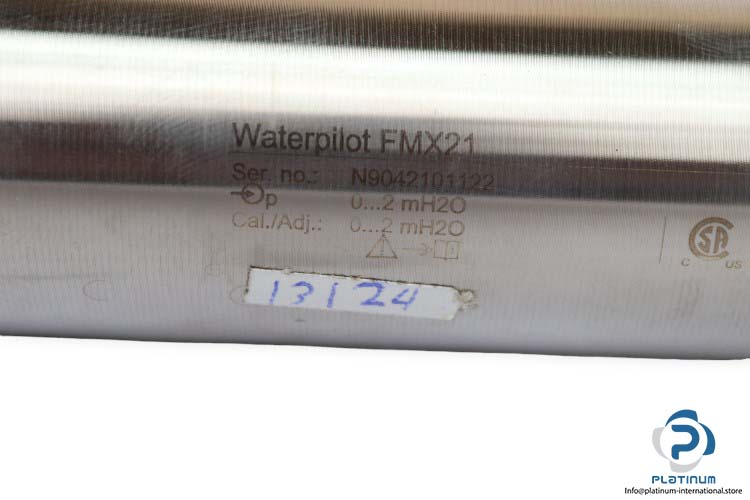

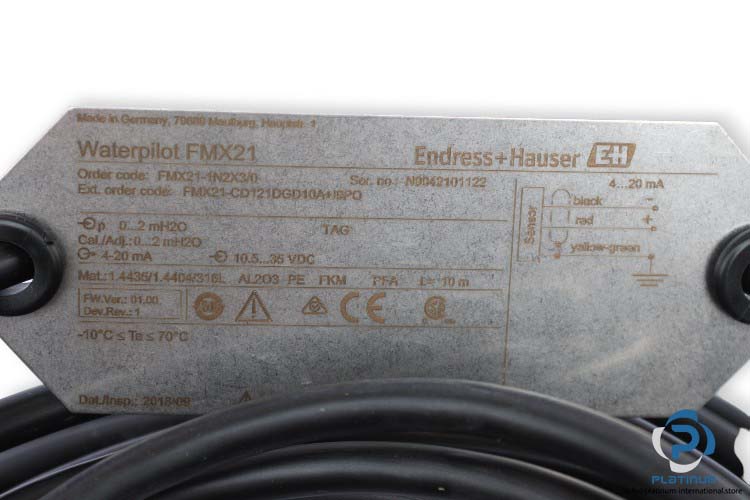

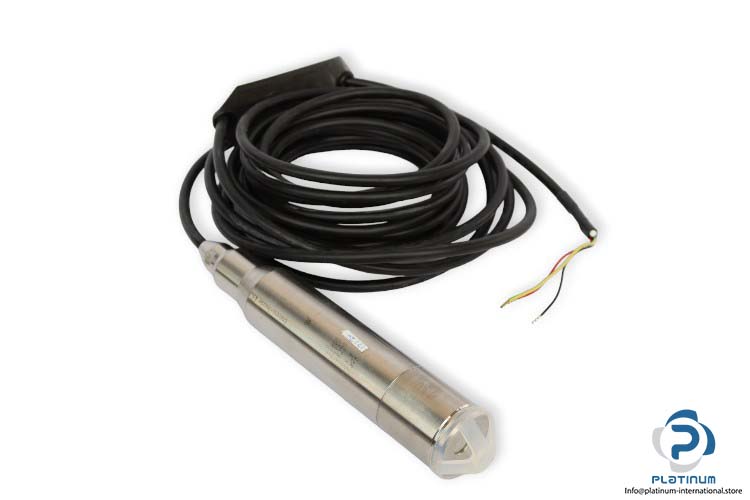

Endress+Hauser Waterpilot FMX21 Pressure Sensor
Manufacturer: ENDRESS+HAUSER
Type: Pressure Sensor
Model: WATERPILOT FMX21
Order Code: FMX21-1N2X3/0
Series: FMX
Function: WATERPILOT FMX21 Is a Pressure Sensor for Hydrostatic Level Measurement, Ideally Suited to Wastewater and Wastewater Treatment Plants
Measurement Distance Max.: 200 m H2O
Pressure Measuring Range: 100 mbar … 20 bar (1.5 … 300 PSI)
Overload Pressure: to 40 bar (600 PSI)
Process Temperature Range: -10 … 70 °C
Rated Voltage: 10.5 … 35 V DC
Output Current: 4 … 20 mA (Analog, HART (can be inverted) with Superimposed Digital Communication Protocol HART 6.0, 2-Wire)

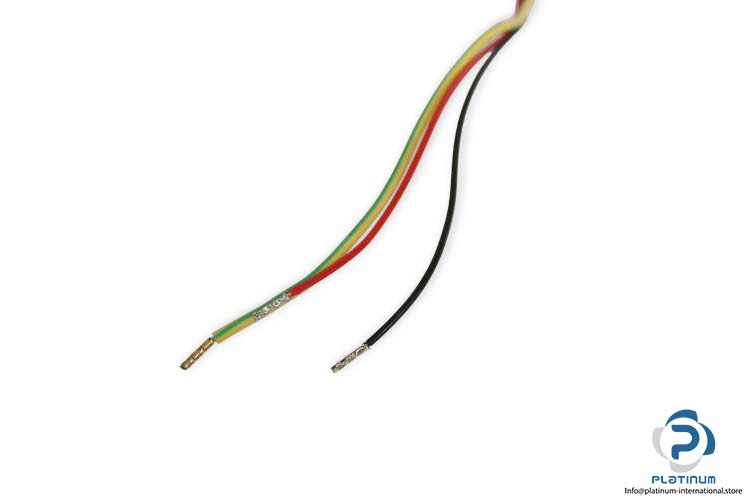

Electrical Connection: Cable, 3-Wires
Material: Stainless Steel
Protection Class: IP66/67
Sensor Length, Diameter: 247, 42 mm
