Enolgas S2301 Pneumatic Actuator
New
In stock2 unitsReady to ship
Pneumatic Actuator
The ENOLGAS S2301 pneumatic actuator is a durable double acting unit with a 90 degree rotation angle, 15 Nm torque at 6 bar, and NAMUR ISO 5211 mounting interface for precise valve control.155211ActingActuatorAutomationComponentsDoubleEnolgasG1/4IndustrialISOmountNamurNmPneumaticS2301Valve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

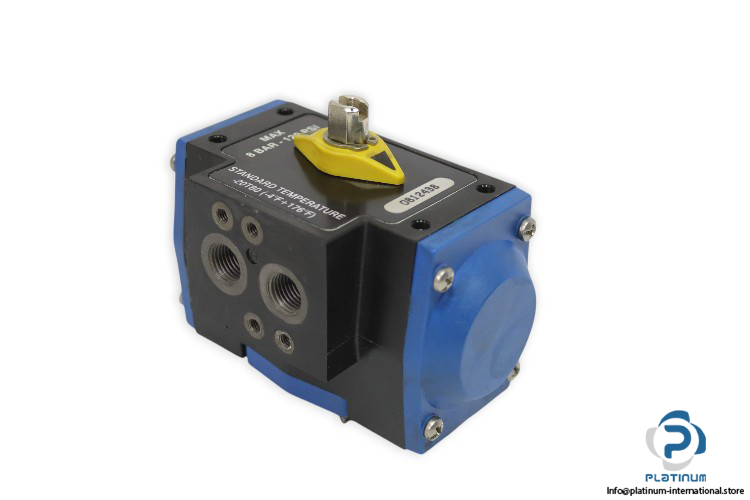

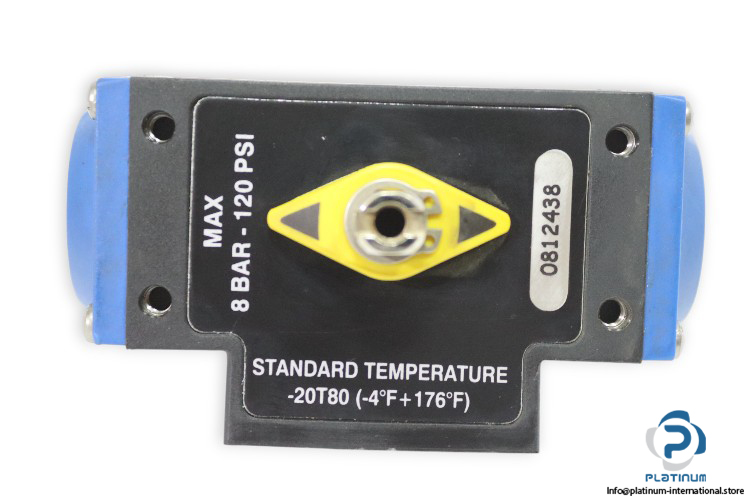

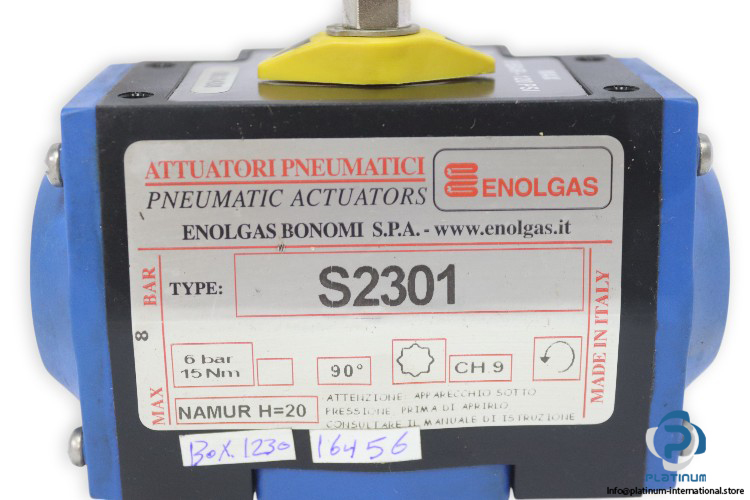

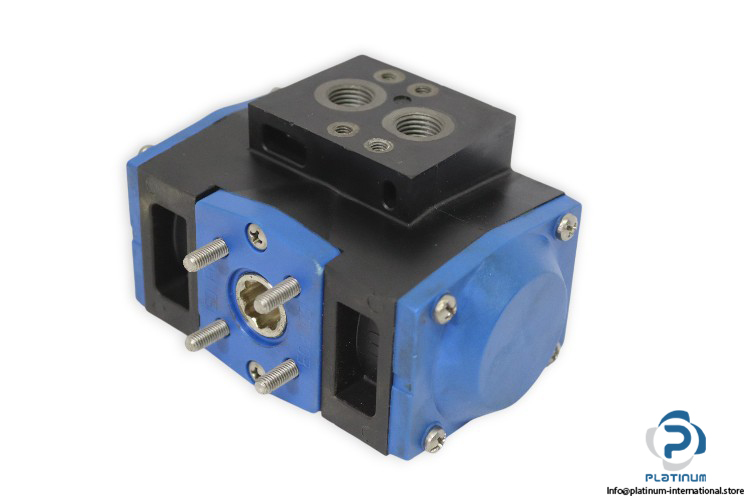

ENOLGAS S2301 Pneumatic Actuator
The ENOLGAS S2301 Pneumatic Actuator is designed for reliable and efficient valve automation. Built for durability, it provides smooth rotation and consistent torque for a wide range of industrial applications using compressed air.
Manufacturer: ENOLGAS
Type: Pneumatic Actuator
Model: S2301
Item No.: 0812438
| Operating Media | Compressed filtered air, not necessarily lubricated |
| Actuation Type | Double Acting |
| Operating Pressure | Max 8 bar |
| Temperature Range | -20 to +85 °C |
| Rotation Angle | 90° |
| Maximum Torque at 6 Bar | 15 Nm |
| Port Size | G1/4 |
| Mounting Interface | NAMUR H=20 (ISO 5211 Standard) |
| Drive Type | Star-shaped (CH9) output shaft |
