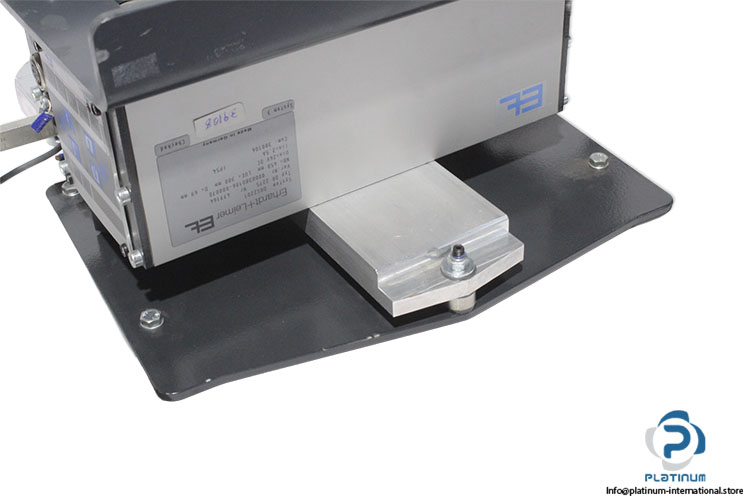

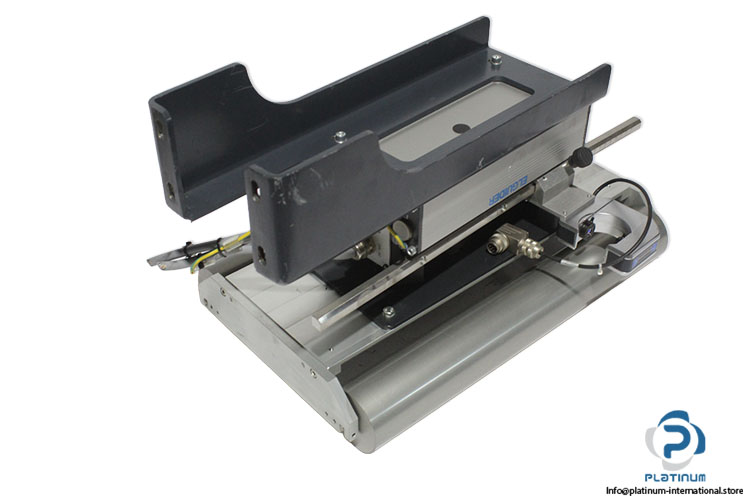

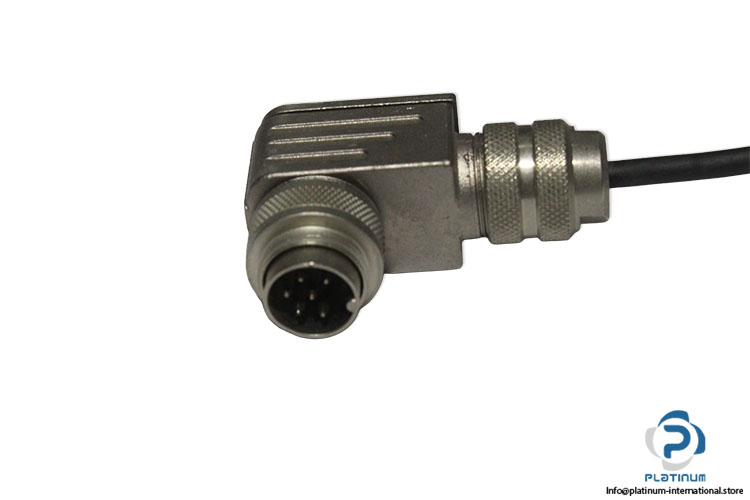

Erhardt+Leimer DRS2201 / FR4631 WEB Guiding System With Base AND Roll AND Sensor

In stock1 unitReady to ship

999,99$

Web Guiding System Erhardt+Leimer DRS2201 web guiding system with base, roll, and FR 4635 infrared edge sensor, designed for precise web alignment and position control in industrial automation applications.

Manufacturer
ERHARDT+LEIMER
SKU
1093695
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

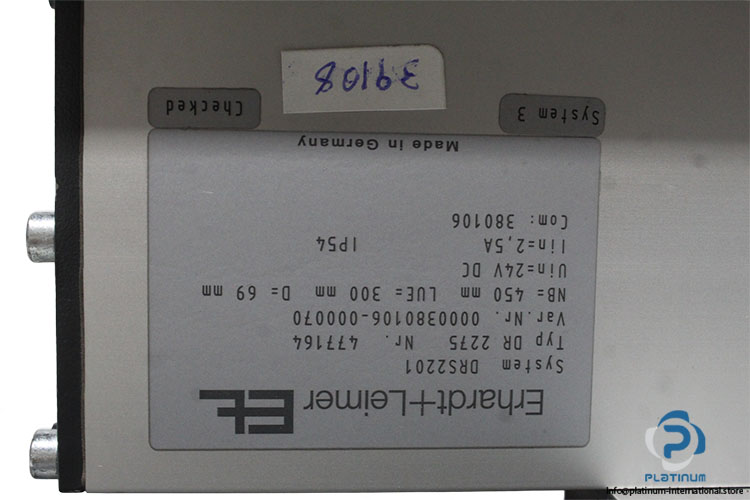

SeriesDRS20

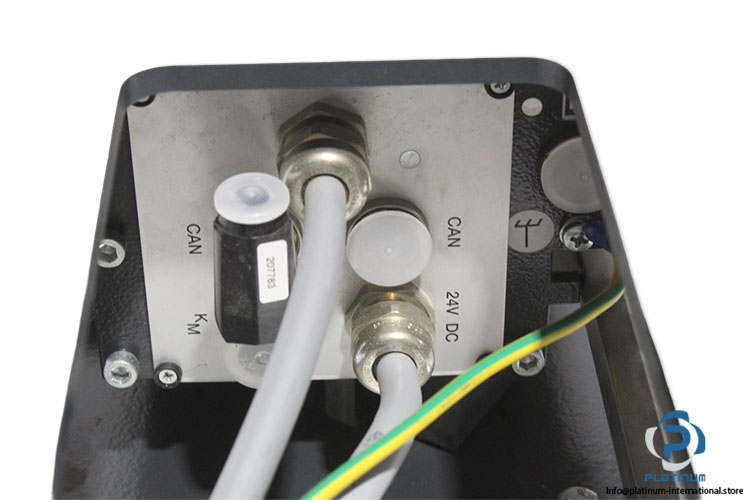

Operating voltage20 to 30 V DC
Current consumptionMax. 1.5 A DC
Roller diameter D60/80 mm
Nominal actuating travel LÜ 250 mm±14 mm
Nominal actuating travel LÜ 300 mm±18 mm
Actuating speed TL 250 mm25 mm/s
Actuating speed TL 300 mm29 mm/s
Web speedmax.300 m/min
Web tension200 N
Positional accuracymax. ±0.15 mm
Error frequency2 Hz
Ambient temperature10 °C to +50 °C

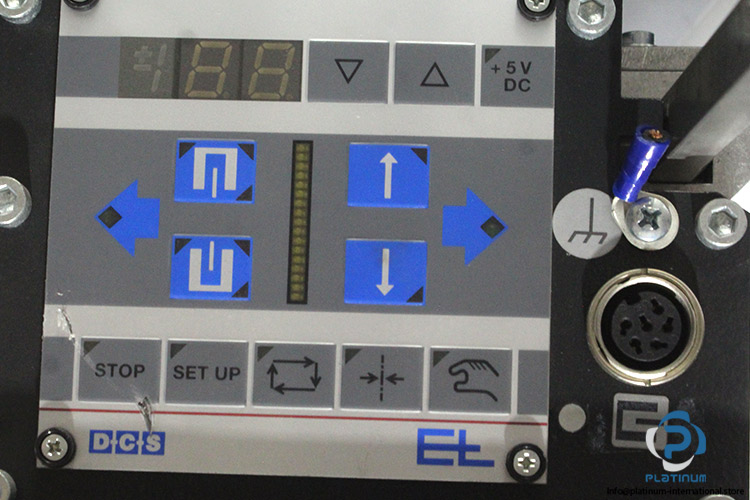

Digital I/O interface5 digital inputs, 1 digital output
Protection classIP54
Attachment ManufacturerERHARDT+LEIMER

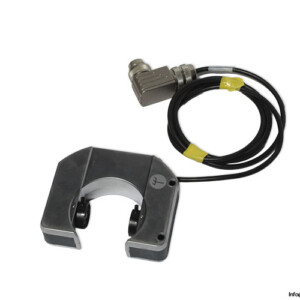

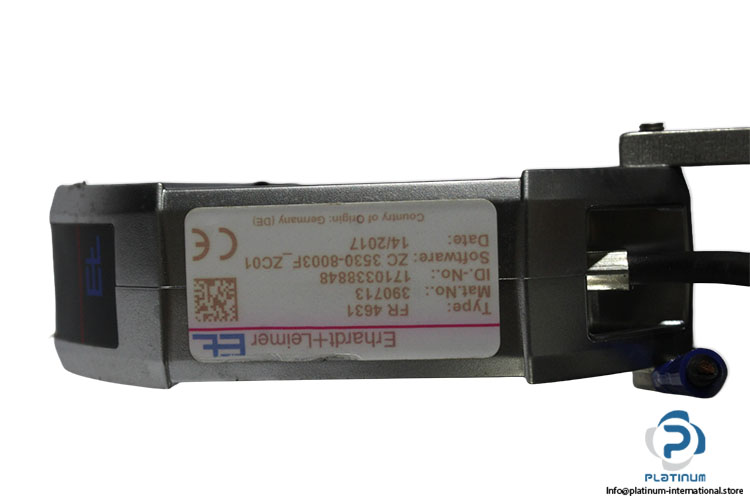

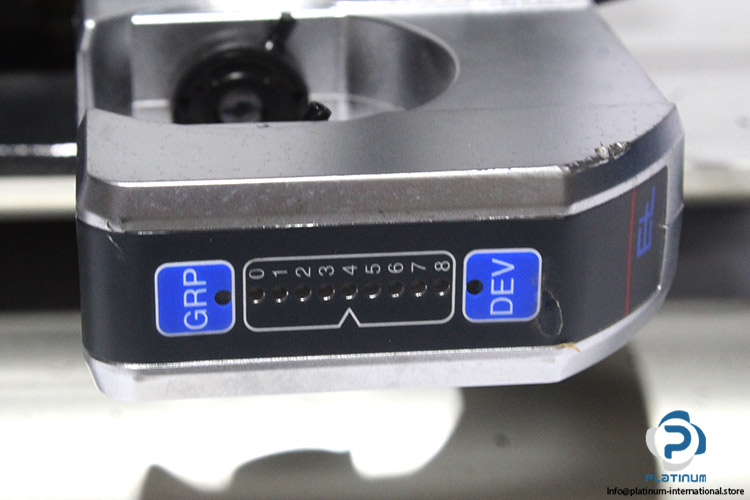

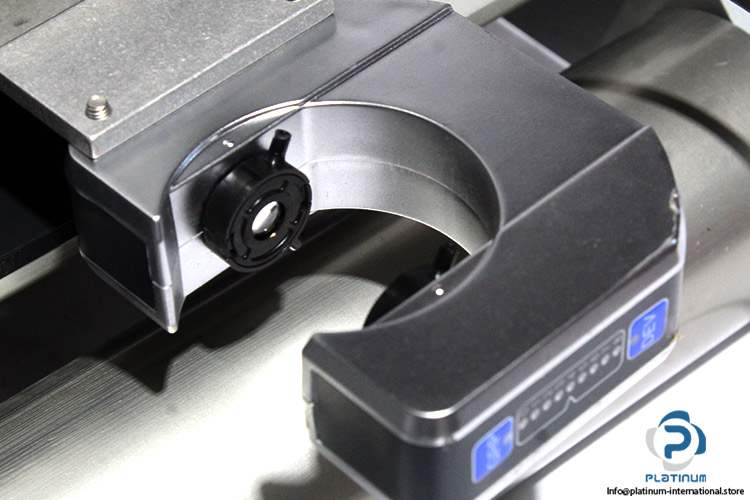

Type of AttachmentInfrared edge sensor
Attachment ModelFR 4635
SoftwareZC 3530-8003F_ZC01
Voltage / Current24V, 50 mA
Measuring range±2,5 mm
Resolution0,01 mm
Linearity±0,2 mm
Wave length880 nm
Scanning rate200 Hz
Lead lengthmax. 10 m
Operating pressure blow-off devicemin. 0,1 bar, max. 0,2 bar
Filter of air regulator5 micrometers
Dimensions (L x W x H)76,2 x 27 x 92,4 mm
ConditionNew
Stock keyJO-004
SKU1093695
Weight16,5

More From ERHARDT+LEIMER

Erhardt+Leimer FE 5201 Color Line Sensor
Used

ERHARDT+LEIMER

Erhardt+Leimer FE 5201 Color Line Sensor

SKU: 1093680

Qty: 3

299,99$

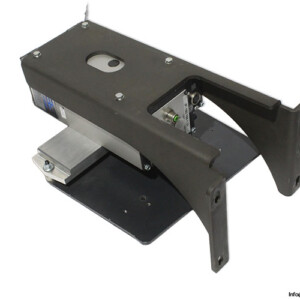

Erhardt+Leimer DRS2201 WEB Guiding System With Base AND Roll
