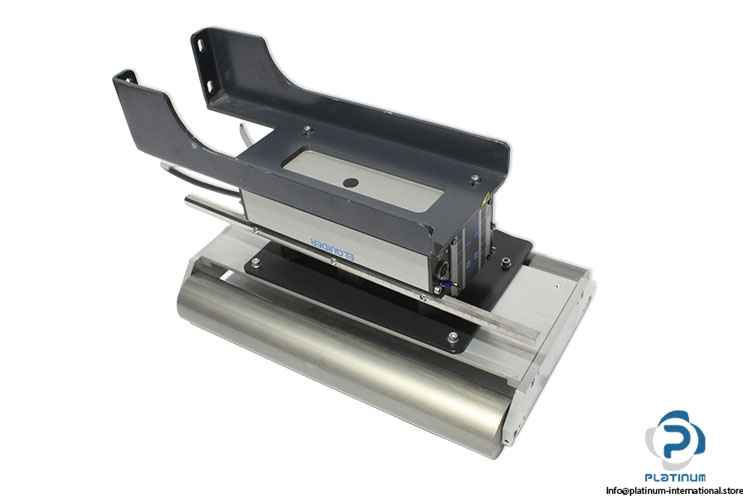

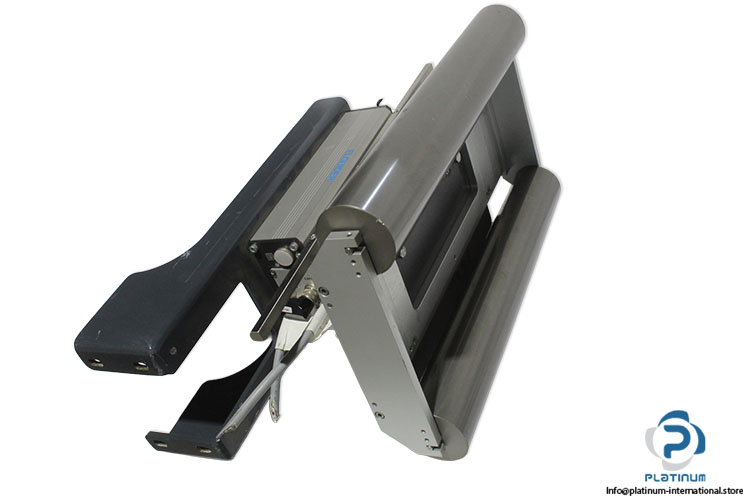

Erhardt+Leimer DRS2201 WEB Guiding System With Base AND Roll
Used
In stock1 unitReady to ship
888,88$
Web Guiding System ERHARDT+LEIMER DRS2201 ELGUIDER DRS20 web guiding system with base and roll, designed for precise web positioning and control in industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | ELGUIDER DRS20 |
| Code | DR 2275, 0000508495-000010, 508495 |
| Operating voltage | 20 to 30 V DC |
| Current consumption | Max. 1.5 A DC |
| Roller diameter D | 60/80 mm |
| Nominal actuating travel LÜ 250 mm | ±14 mm |
| Nominal actuating travel LÜ 300 mm | ±18 mm |
| Actuating speed TL 250 mm | 25 mm/s |
| Actuating speed TL 300 mm | 29 mm/s |
| Web speed | max.300 m/min |
| Web tension | 200 N |
| Positional accuracy | max. ±0.15 mm |
| Error frequency | 2 Hz |
| Ambient temperature | 10 °C to +50 °C |

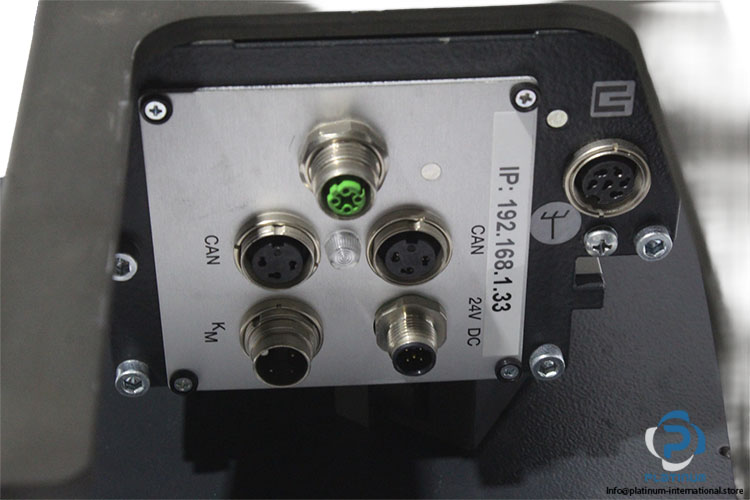

| Digital I/O interface | 5 digital inputs, 1 digital output |
| Protection class | IP54 |
| Condition | Used |
| Stock key | JO-004 |
| SKU | 1093694 |
| Weight | 16,3 |
