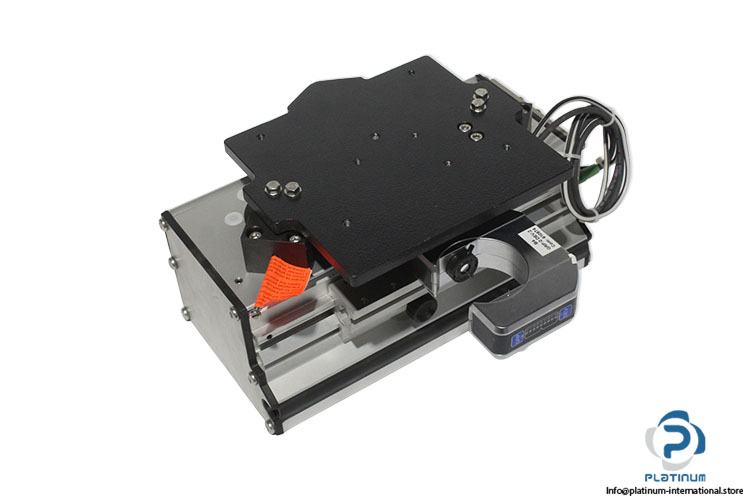

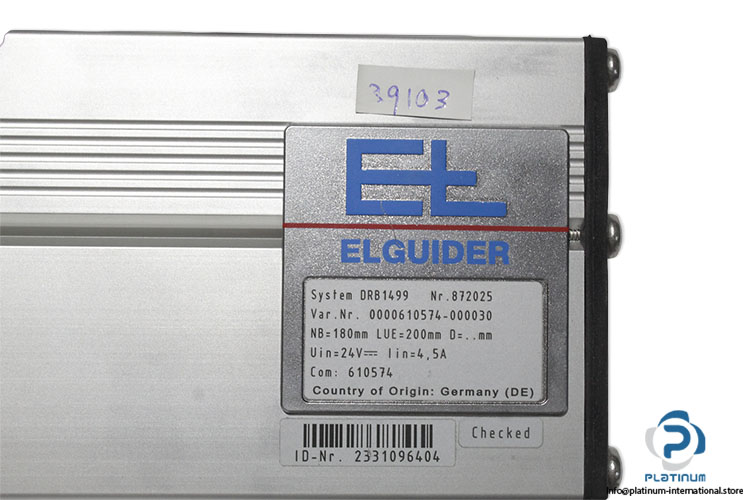

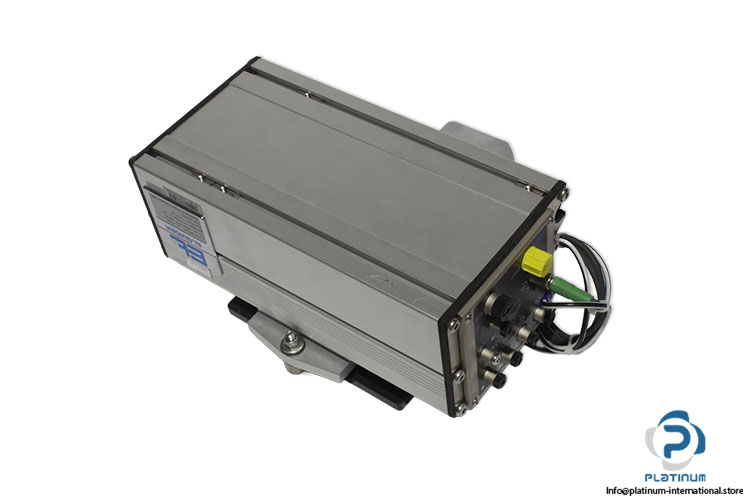

Erhardt+Leimer DRB1499 / 842025 WEB Guiding System

In stock1 unitReady to ship

999,99$

Web Guiding System ERHARDT+LEIMER web guiding system with precise web positioning, up to 150 mm/s actuating speed and 300 N web tension, supplied with an FR 4635 infrared edge sensor for industrial automation applications.

Manufacturer
ERHARDT+LEIMER
SKU
1093692
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Code478736
Supply Voltage24V
Input Current4,5 A
Nominal actuating speedmax. 150 mm / s
Web tensionMax. 300 N
Roller diameter D40/60/80 mm
Nominal range20 to 30 V DC (ripple included)
Nominal range with power supply100 to 240 V, 50/60 Hz

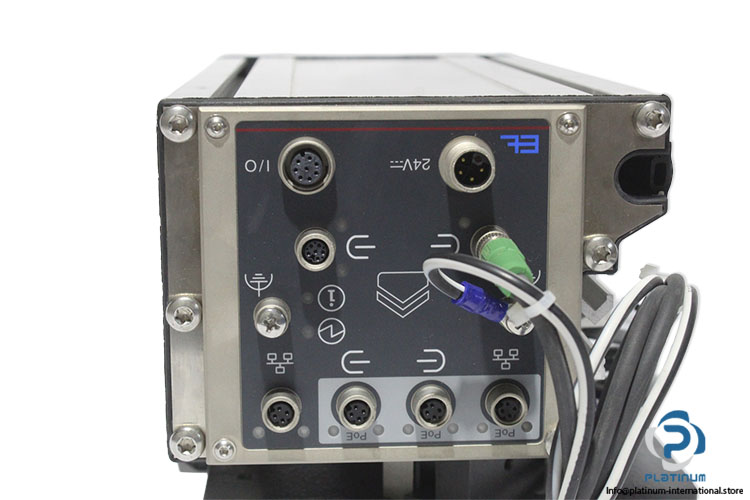

Digital I/O interface(5 digital inputs, configurable), (1 output, configurable)
Protection classIP 54

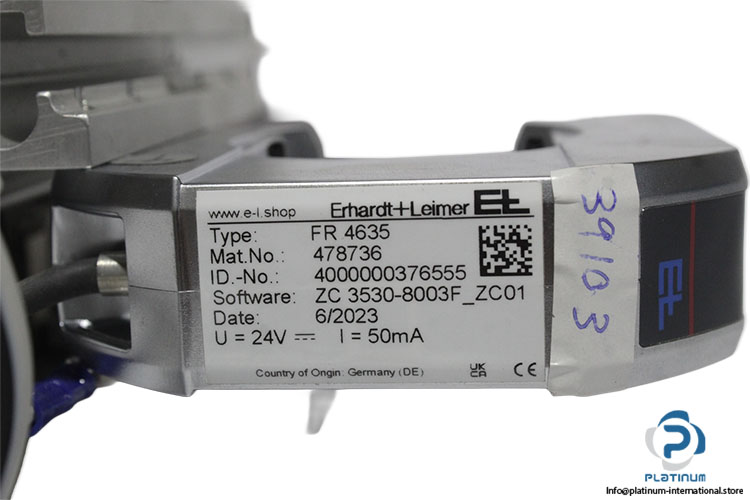

Attachment ManufacturerERHARDT+LEIMER

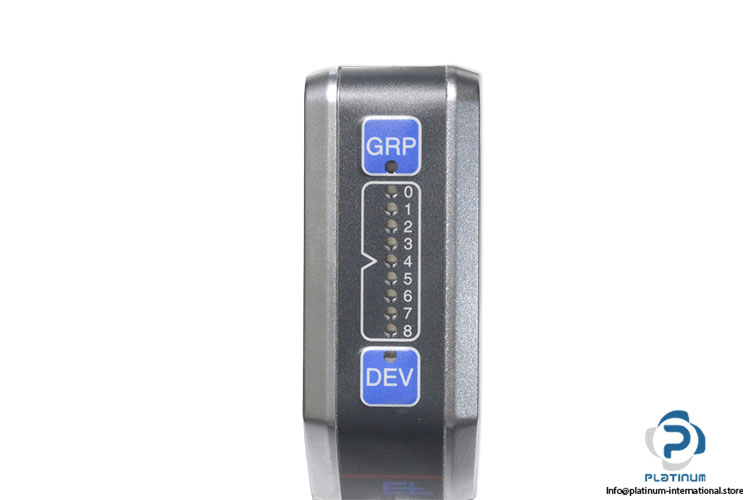

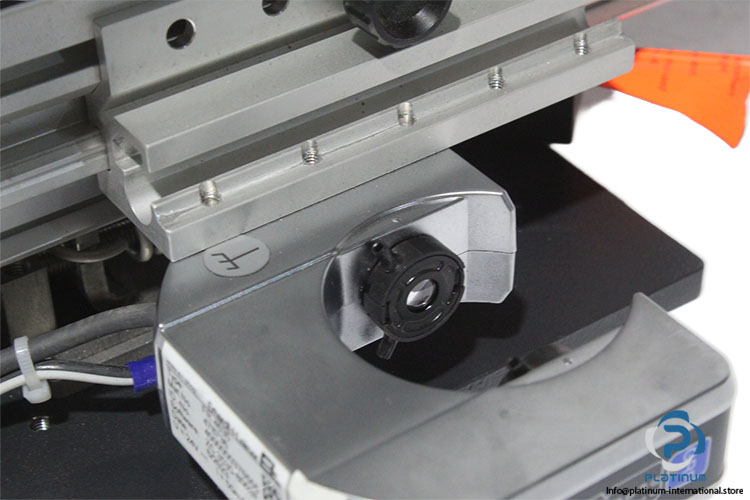

Type of AttachmentInfrared edge sensor
Attachment ModelFR 4635
SoftwareZC 3530-8003F_ZC01
Voltage / Current24V, 50 mA
Measuring range±2,5 mm
Resolution0,01 mm
Linearity±0,2 mm
Wave length880 nm
Scanning rate200 Hz
Lead lengthmax. 10 m
Operating pressure blow-off devicemin. 0,1 bar, max. 0,2 bar
Filter of air regulator5 micrometers
Dimensions (L x W x H)76,2 x 27 x 92,4 mm
Ambient temperature10 to +50 °C
ConditionNew
Stock keyJO-004
SKU1093692
Weight7,5
