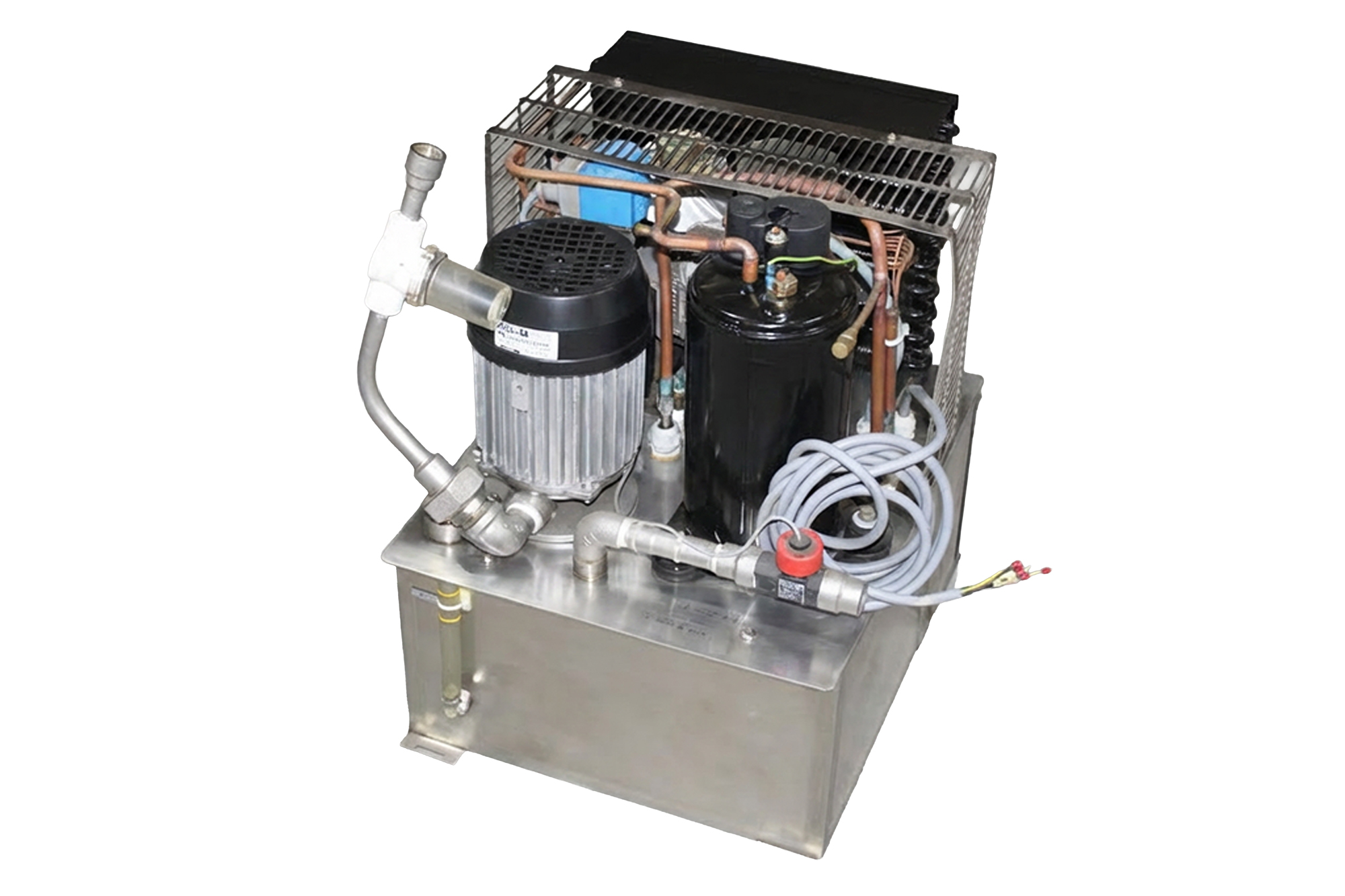

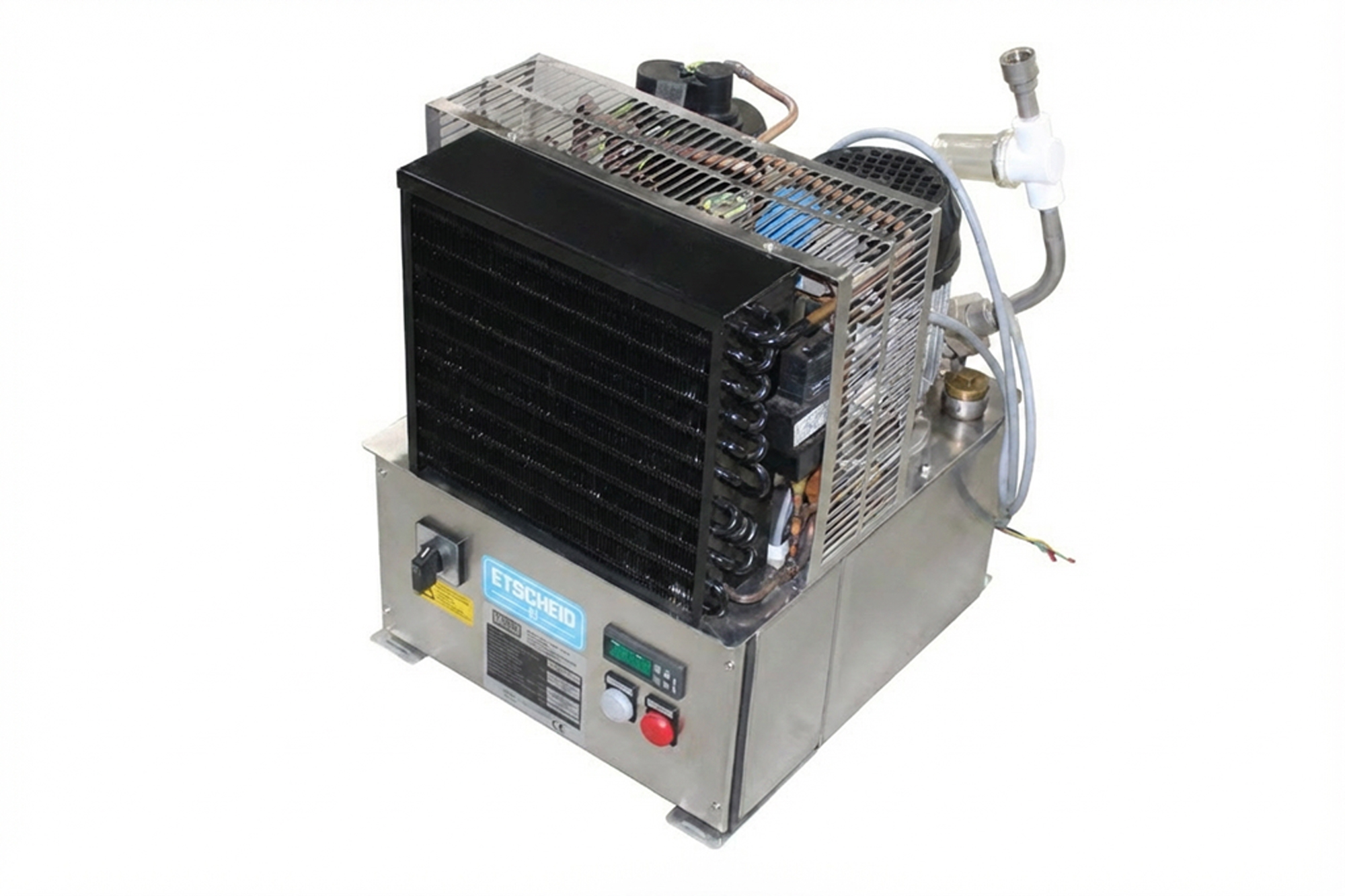

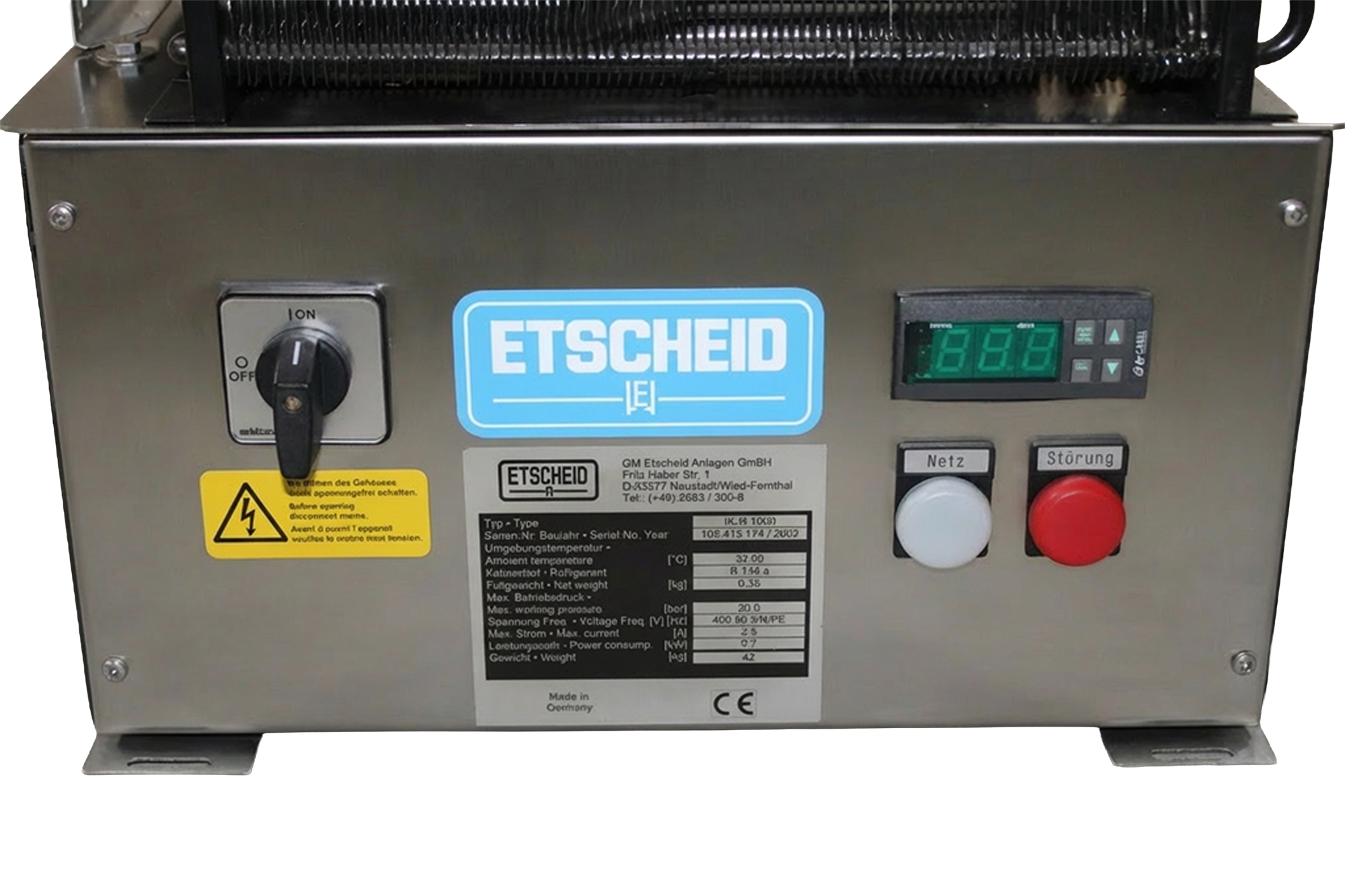

Etscheid IK-R 1000 Liquid Cooling Unit
New
In stock1 unitReady to ship
1 999,99$
with R134a refrigerant, 400 V AC supply, SPECK pump, compressor, fan speed control, and solenoid coil.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

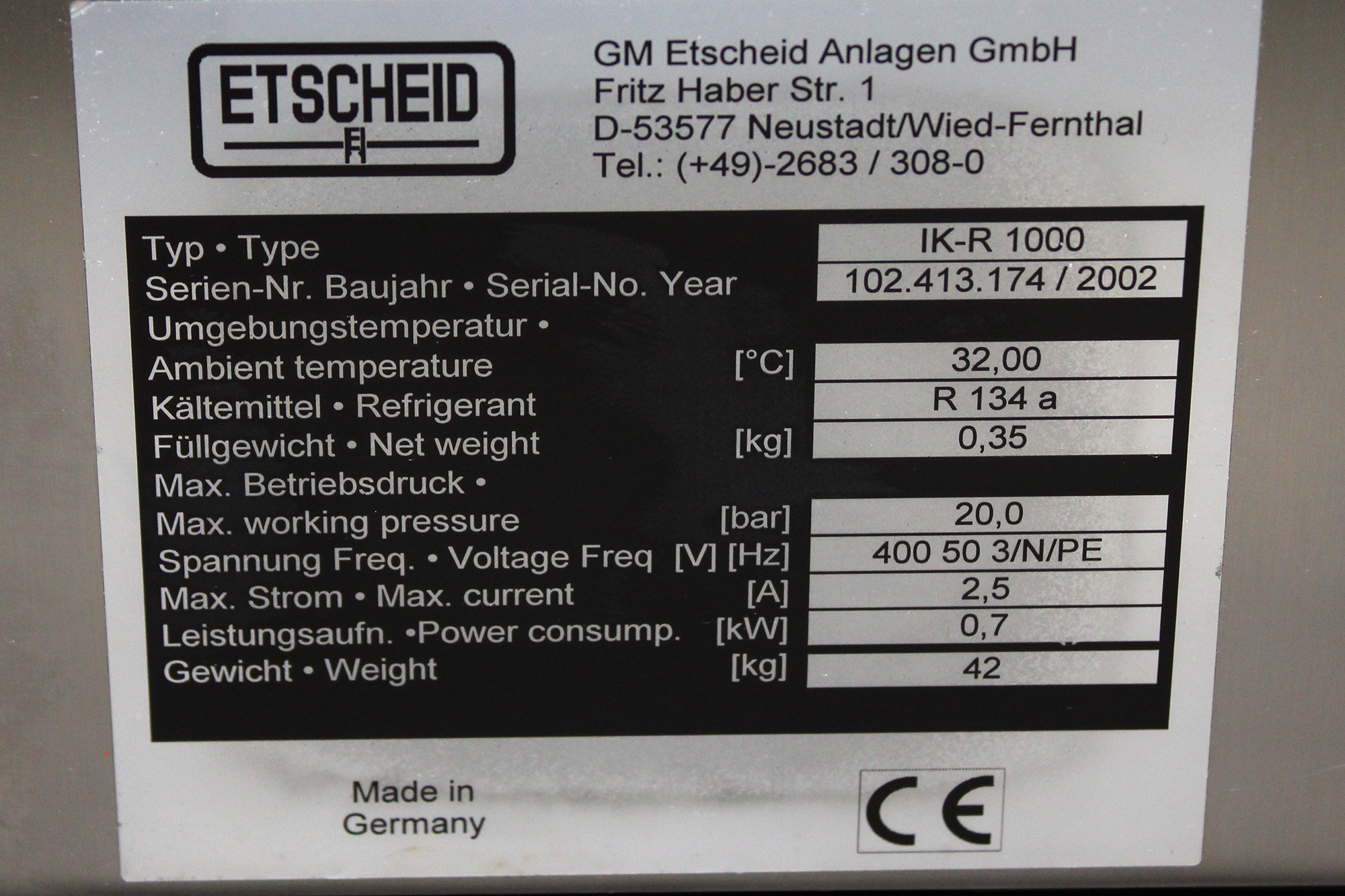

| Serial No. | 102.413.174 / 2002 |
| Refrigerant | R 134 a |
| Working Pressure Max. | 20 bar |
| Voltage | 400 V AC |
| Current Max. | 2.5 A |
| Power Consumption | 0.7 kW |
| Ambient Temperature | +32°C |

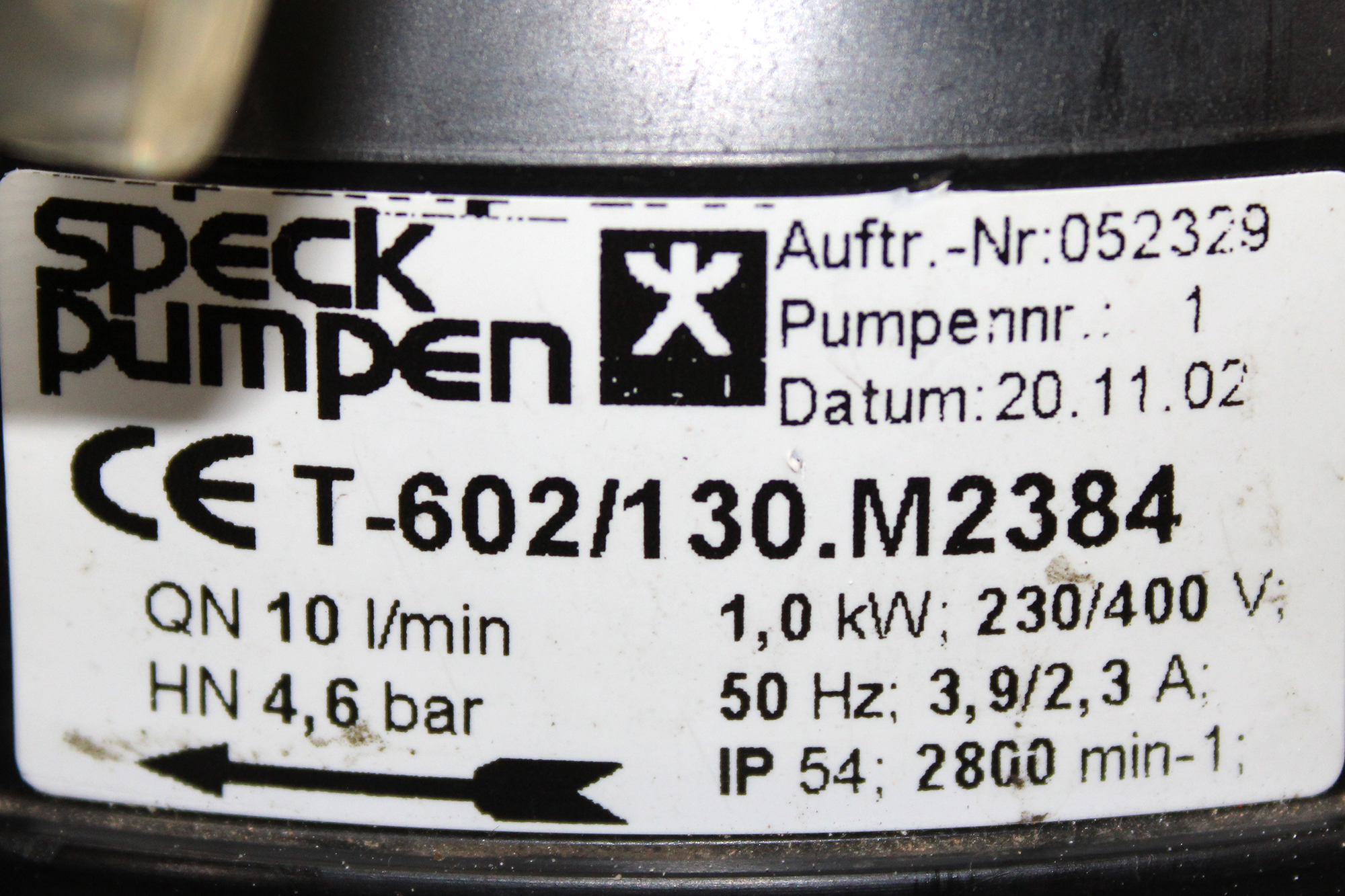

| Attachment 1 | SPECK PUMPEN T-602/130.M2384 SUBMERSIBLE PUMP |
| Submersible Pump Manufacturer | SPECK PUMPEN |
| Attachment 1 Type | Submersible Pump with Peripheral Impeller |
| Submersible Pump Model | T-602/130.M2384 |
| Submersible Pump Order No. | 052329 |
| Submersible Pump Rated Voltage | 230/400 V AC |
| Submersible Pump Rated Current | 3,9/2,3 A |
| Submersible Pump Rated Power | 1,0 kW |
| Submersible Pump Rated Speed | 2800 min-1 |
| Submersible Pump Frequency | 50 Hz |
| Submersible Pump Pressure Max. | 4.6 bar |
| Submersible Pump Rated Flow | 10 l/min |
| Submersible Pump Protection Class | IP54 |
| Submersible Pump Temperature | -5 … 50 °C |

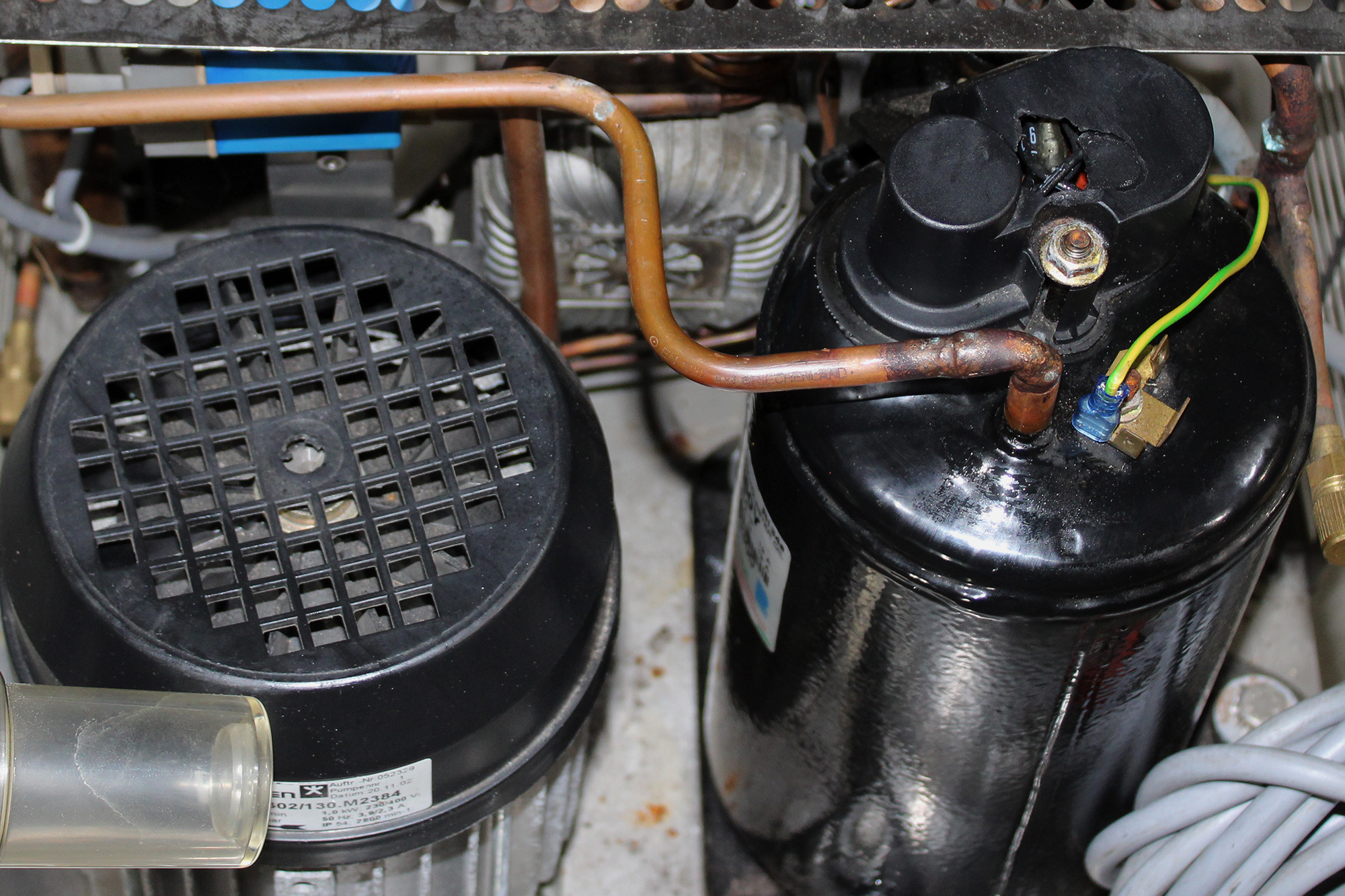

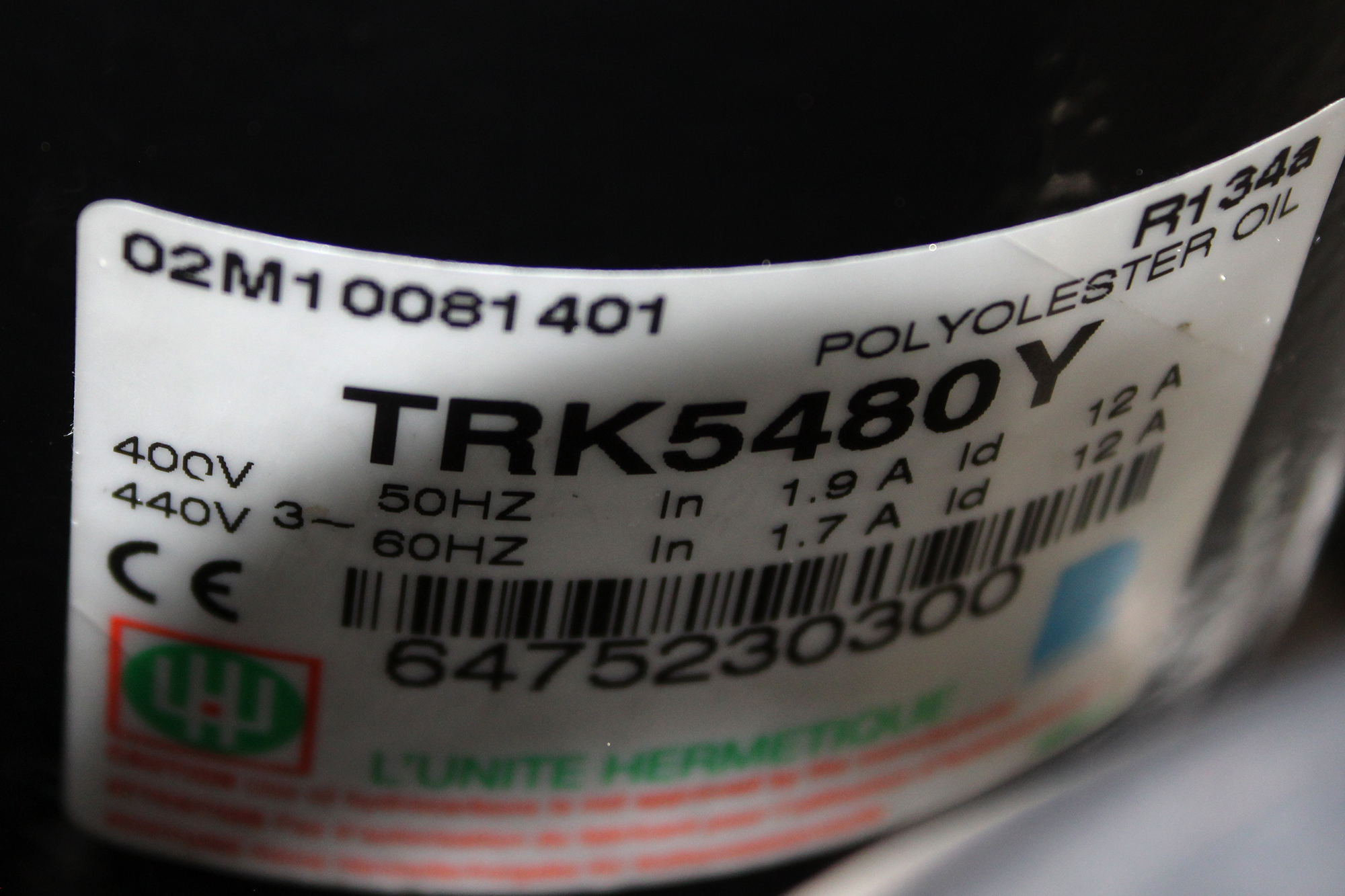

| Attachment 2 | L'UNITE HERMETIQUE TRK5480Y AIR CONDITIONING COMPRESSOR |
| Compressor Manufacturer | L'UNITE HERMETIQUE |
| Attachment 2 Type | Air Conditioning Compressor |
| Compressor Model | TRK5480Y |
| Compressor Alternative Model | R134a |
| Compressor Part No. | 6475230300 / 02M10081 401 |
| Compressor Rated Voltage | 3-Phase 400-440 V AC |
| Compressor Rated Start Current LRA | 12/12 A |
| Compressor Rated Rated Current RLA | 1.9/1.7 A |
| Compressor Displacement | 18.1 cm³ |
| Compressor Frequency | 50 ... 60 Hz |
| Compressor Oil Charge | 414 cm³ |
| Compressor Windings Resistance | 19.9 Ohms |

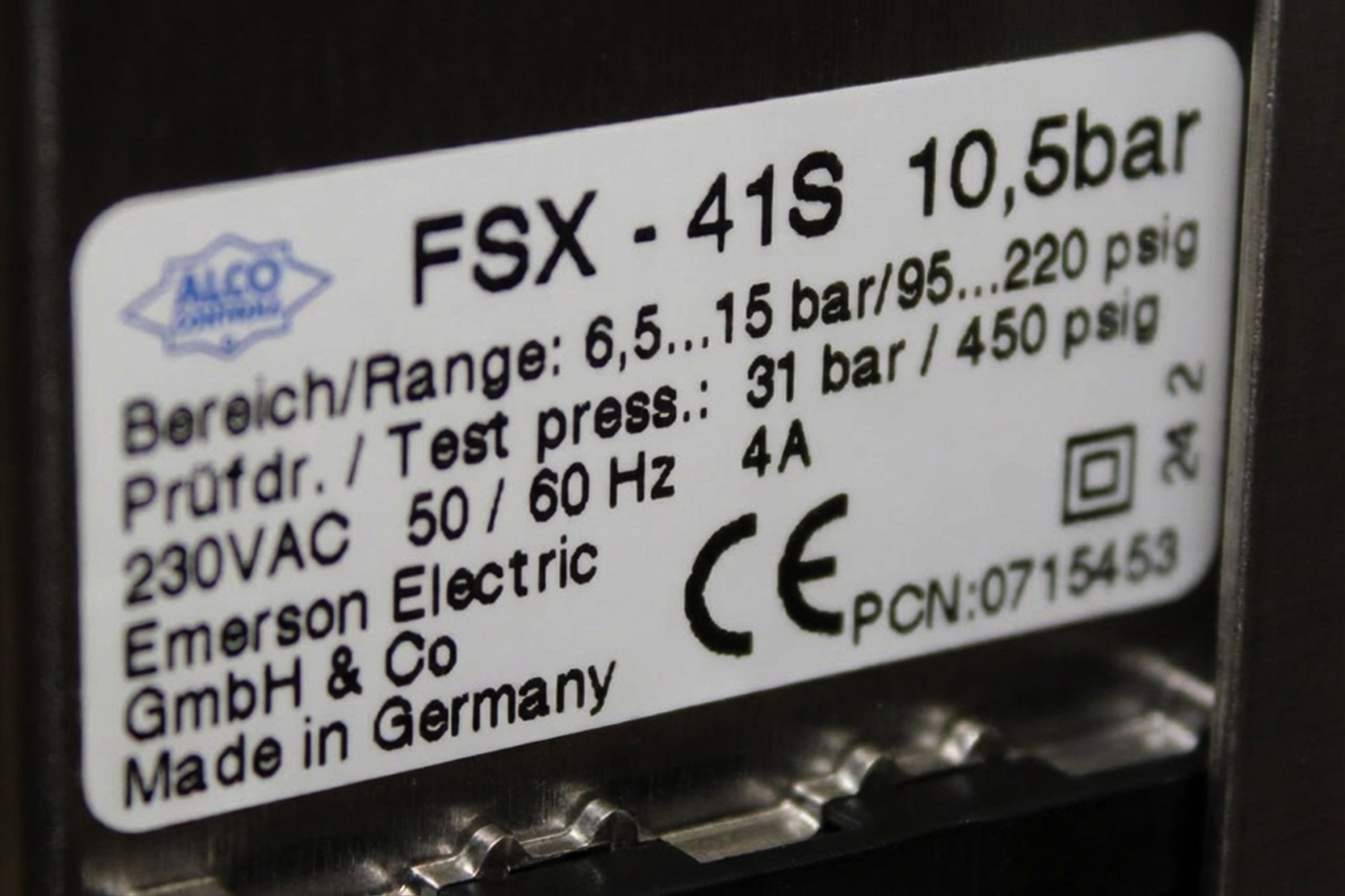

| Attachment 3 | ALCO FSX-41S ELECTRIC FAN SPEED CONTROL |
| Electric Fan Manufacturer | ALCO / EMERSON ELECTRIC |
| Attachment 3 Type | Electric Fan Speed Control |
| Electric Fan Model | FSX-41S |
| Electric Fan P CN | 0715453 |
| Electric Fan Series | X |
| Electric Fan Nominal Pressure | 10.5 bar |
| Electric Fan Pressure Range | 6.5 to 15 bar (95 to 220 psig) |
| Electric Fan Test Pressure | 31 bar / 450 psig |
| Electric Fan Rated Voltage | 230 V AC |
| Electric Fan Rated Current | 4 A |
| Electric Fan Frequency | 50 ... 60 Hz |
| Electric Fan Ambient Temperature | -20 … 55 °C |

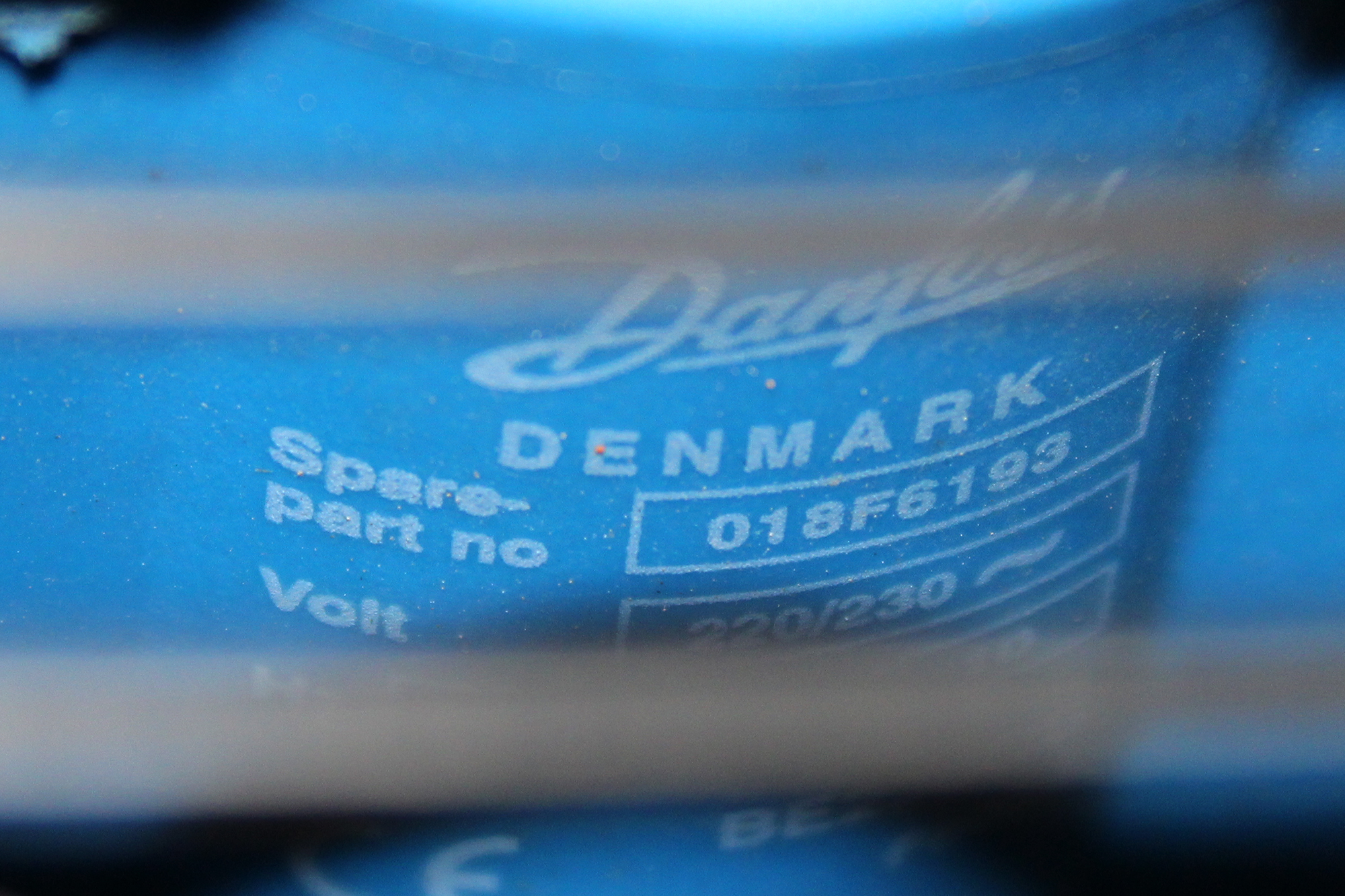

| Attachment 4 | DANFOSS BE230CS SOLENOID COIL |
| Solenoid Coil Manufacturer | DANFOSS |
| Attachment 4 Type | Solenoid Coil |
| Solenoid Coil Model | BE230CS |
| Solenoid Coil Part No. | 018F6193 |
| Solenoid Coil Supply Voltage | 220/230 V AC |
| Solenoid Coil Frequency | 50 … 60 Hz |
| Solenoid Coil Power Consumption | 10 W |
| Solenoid Coil Protection Class | IP20 |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103272 |
| Weight | 49,02 |
