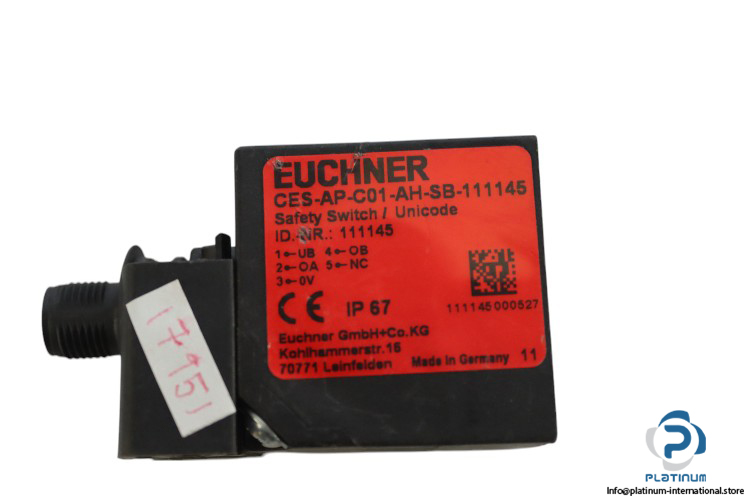

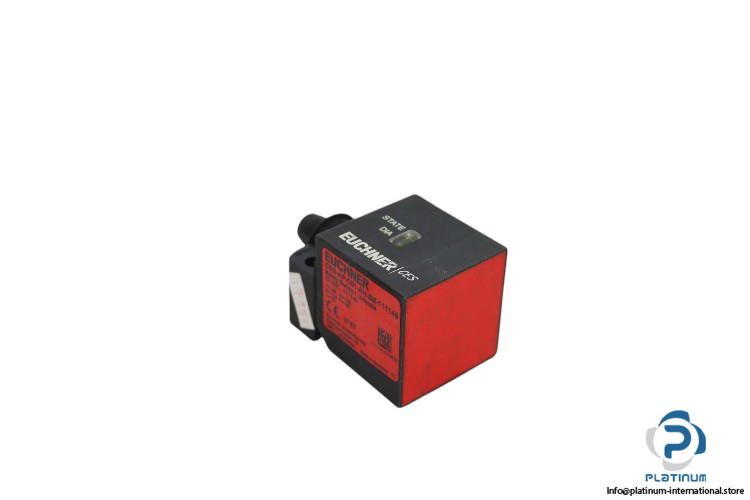

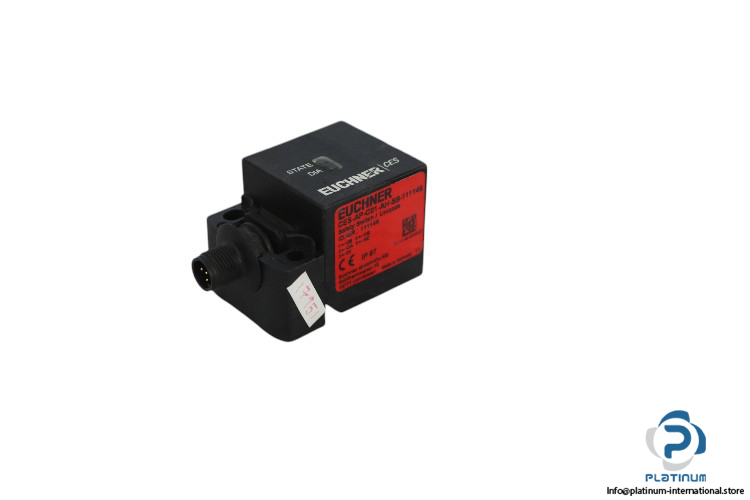

Euchner CES-AP-C01-AH-SB Safety Switch

Euchner Safety Switch/Unicode CESAPC01AHSB

Euchner Safety Switch/Unicode CESAPC01AHSB is designed to provide reliable safety solutions in industrial environments. This product ensures safety and precision with high-quality components and easy-to-use features.

• Manufacturer: Euchner
• Type: Safety Switch/Unicode
• Model: CESAPC01AHSB
• ID. No.: 111145

Technical Data:

• Operating Voltage: 24 V DC
• Rated Insulation Voltage Ui: 75 V
• Output Voltage:
• LOW U(OA, OB): 0 to 1 V DC
• HIGH U(OA, OB): UB – 1.5 to UB V DC
• Rated Impulse Withstand Voltage Uimp: 1.5 kV
• Turn-On Time Safety Outputs: max. 400 ms
• Rated Conditional Short-Circuit Current: max. 100 A
• Connection Type: M12 Plug Connector, 5-pin
• Output Type: Semiconductor Outputs
• Tightening Torque Fixing Screws: max. 1 Nm
• Switching Frequency: max. 1 Hz
• Mounting Distance: min. 40 mm
• Degree of Protection: IP67
• Ambient Temperature: -20 to +55 degrees Celsius
