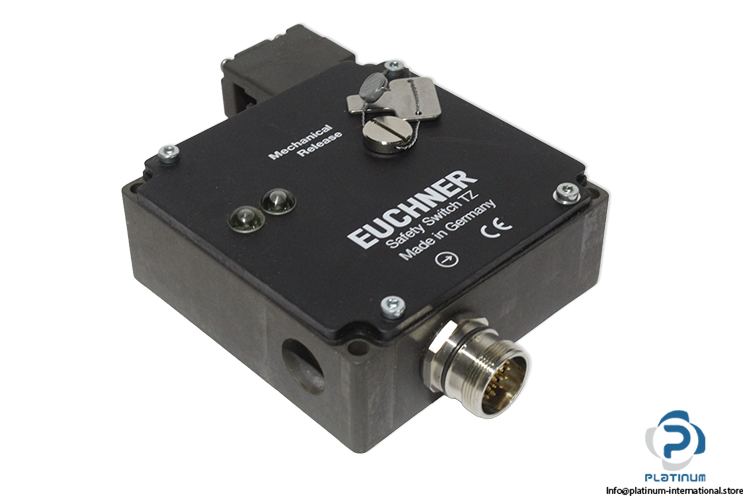

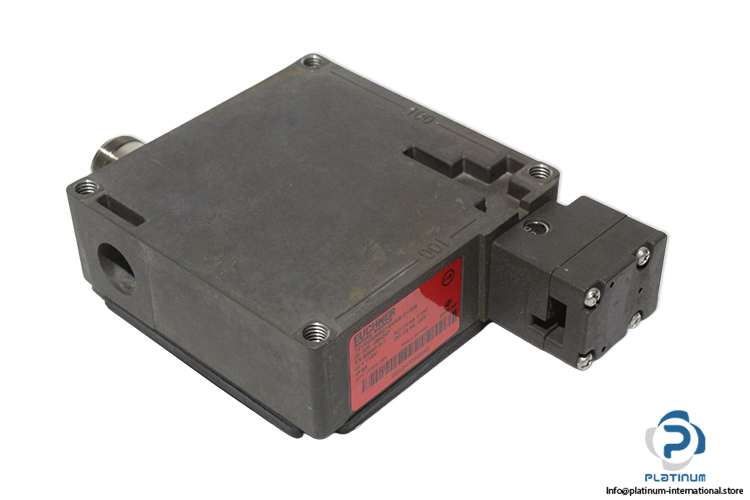

Euchner TZ1RE024RC18VAB Interlock Safety Switch
New
In stock1 unitReady to ship
233,33$
Interlock Safety Switch EUCHNER TZ1RE024RC18VAB interlock safety switch with 24 V AC/DC solenoid, guard lock monitoring, and lever arm with steel roller.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 084247 |
| Solenoid Operating Voltage | 24 V AC/DC |
| Rated Insulation Voltage Ui | 50 V |
| Rated Impulse Voltage (Uimp) | 1.5 kV |
| Door Position No Contacts No. | 1 Normally Open (NO) |
| Guard Lock Monitoring Contacts No. | 2 Normally Open (NO) |
| Door Position Positively Driven Contacts No. | 2 |
| Guard Lock Monitoring Positively Driven Contacts No. | 2 |
| Switching Voltage | 12 V |
| Switching Current | 1 mA |
| Thermal Rated Current | 4 A |
| Extraction Force | 30 N |
| Actuating Force | 35 N |
| Retention Force | 10 N |
| Actuator Type | Lever Arm with Steel Roller |

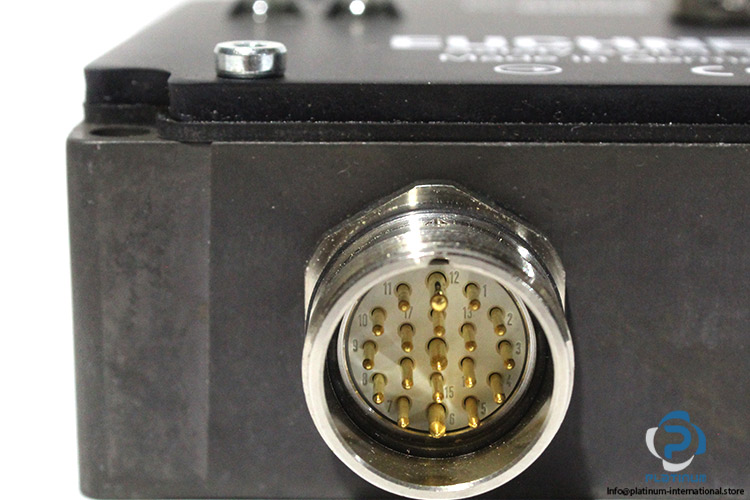

| Connection | Plug Connector RC18 |
| Material | Anodized Die-Cast Alloy |
| Protection Class | IP40 |
| Ambient Temperature | -25 … 80 °C |
| Dimensions | 110 x 110 x 31 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103944 |
| Weight | 1,32 |
