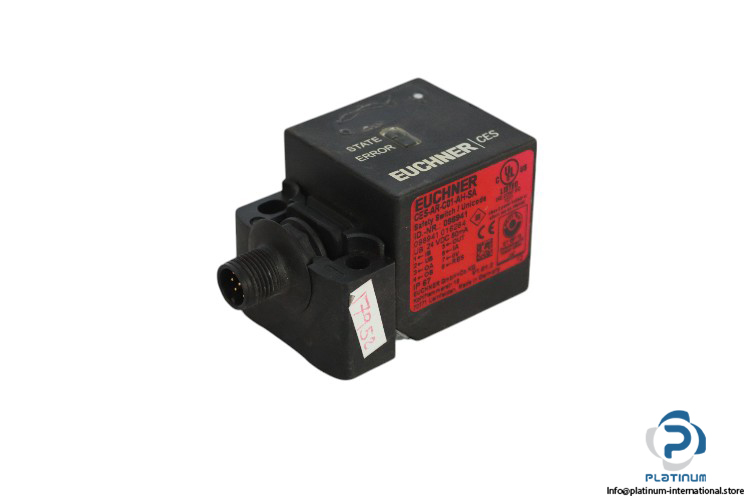

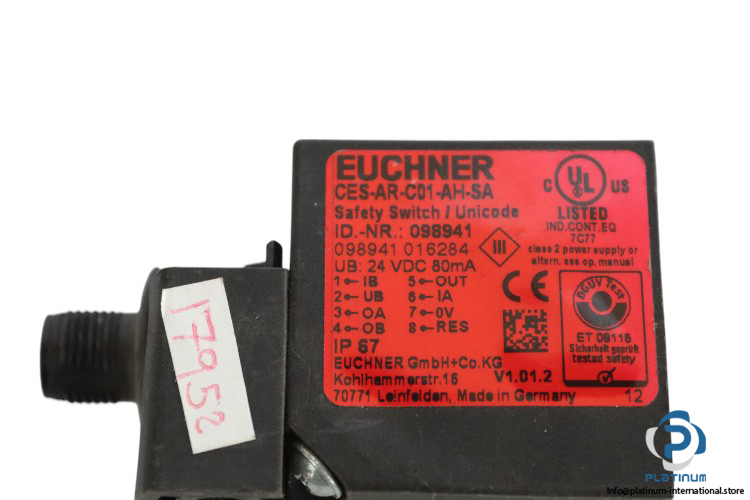

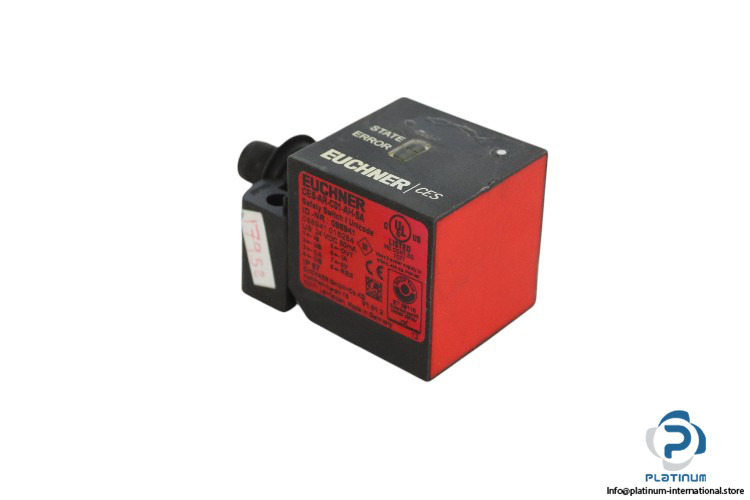

Euchner CES-AR-C01-AH-SA Safety Switch
Used
In stock1 unitReady to ship
Euchner Safety Switch/Unicode CESARC01AHSA with 24 V DC operating voltage, semiconductor outputs, and IP67 protection. Designed for secure industrial applications with a max. output current of 80 mA.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Euchner Safety Switch/Unicode CESARC01AHSA
Euchner Safety Switch/Unicode CESARC01AHSA is a highly reliable and precise safety switch designed to provide secure operation in industrial applications. Below are the key technical specifications:
- Manufacturer: Euchner
- Type: Safety Switch/Unicode
- Model: CESARC01AHSA
- Order No.: 098941
Technical Data:
- Operating Voltage: 24 V DC
- Rated Insulation Voltage (Ui): 75 V
- Output Voltage:
- LOW U(OA, OB): 0 to 1 V DC
- HIGH U(OA, OB): UB-1.5 to UB V DC
- Rated Impulse Withstand Voltage (Uimp): 1.5 kV
- Turn-on Time Safety Outputs: max. 400 ms
- Output Current: max. 80 mA
- Connection Type: M12 plug connector, 8-pin
- Output Type: Semiconductor outputs
- Tightening Torque Fixing Screws: max. 1 Nm
- Switching Frequency: max. 1 Hz
- Mounting Distance: min. 40 mm
- Degree of Protection: IP67
- Ambient Temperature: -20 to +55 degrees Celsius
