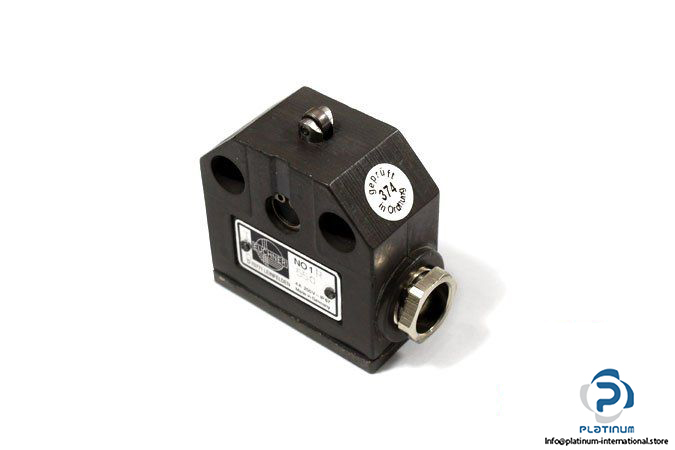

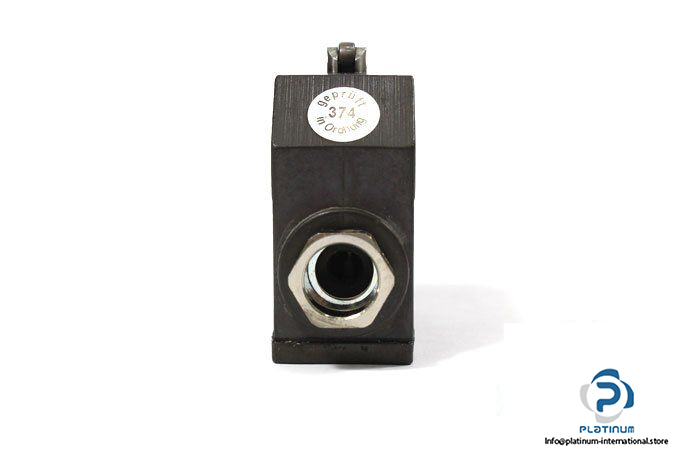

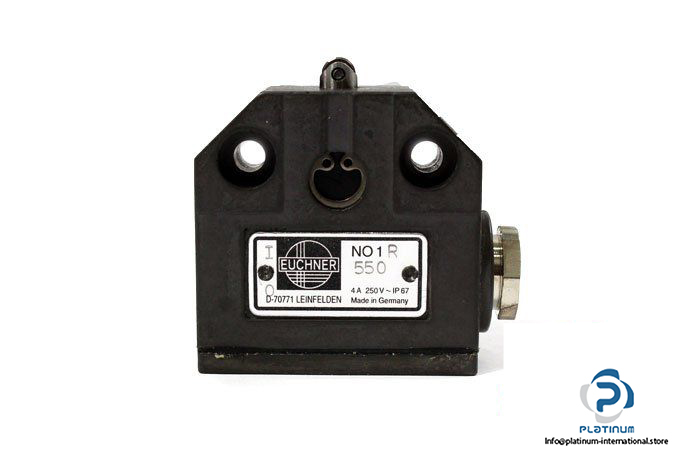

Euchner N01R550 Precision Single Limit Switch

Manufacturer: EUCHNER

Type: PRECISION SINGLE LIMIT SWITCH

Series: N01

Model No.: N01R550

Part No.: 012108

Actuating force: 15 … 20 N

Switching principle: Changeover contact with snap-action function

Connector type: Terminal compartment

Enclosure rating: IP67

Ambient Operating temperature: -5 … 80°C

Dimensions: 40 x 20 x 40 mm

Weight: 0.07 Kg

Housing material: Anodized die-cast alloy

Contact material: Silver alloy, gold flashed
