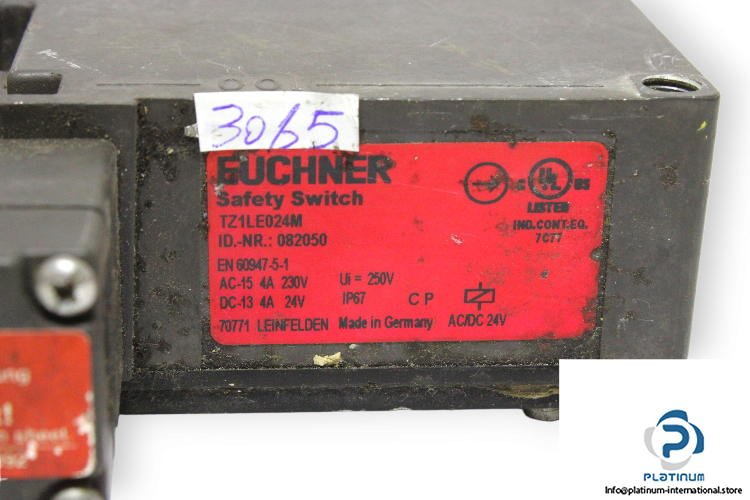

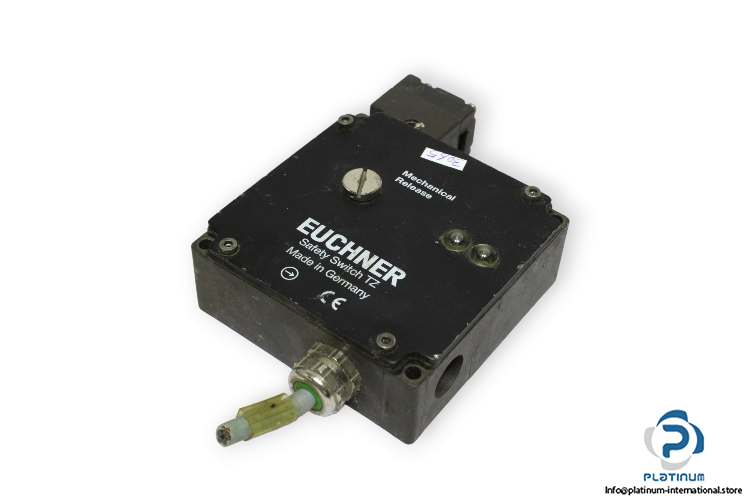

Euchner TZ1LE024M Safety Switch

Manufacturer: EUCHNER
Type: Safety Switch
Model: TZ1LE024M
Part No.: 082050

Switching principle: Slow-action
Power consumption: 10 W
Connection cross section: 0.34 … 1.5 mm²
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Solenoid operating voltage: AC/DC 24 V
Switching voltage: min. at 10 mA  12 V
Switching current: min. at 24 V 1 mA
thermal rated current Ith: 4 A
Approach speed: max. 20 m/min

Extraction force: 30 N

Actuation frequency: max. 1200 1/h

Actuating force: 35 N
Ambient Temperature: -25 … 80 °C
Protection Class: IP67
