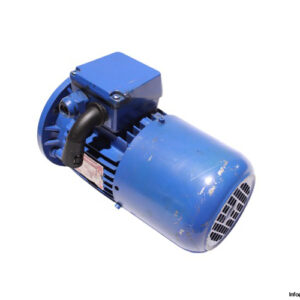

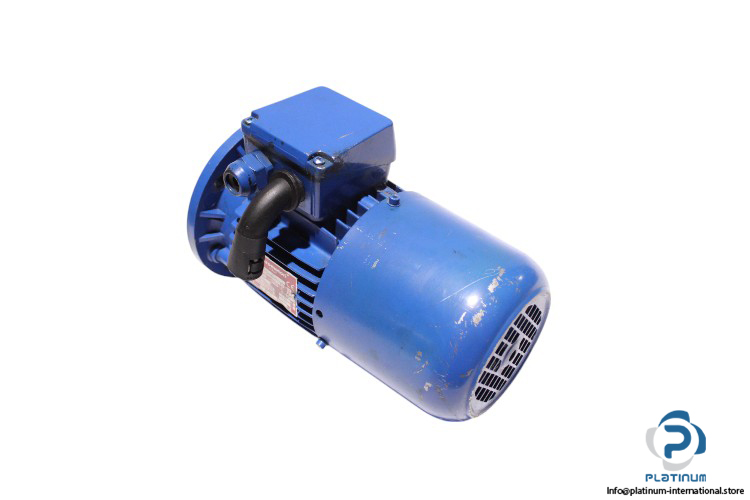

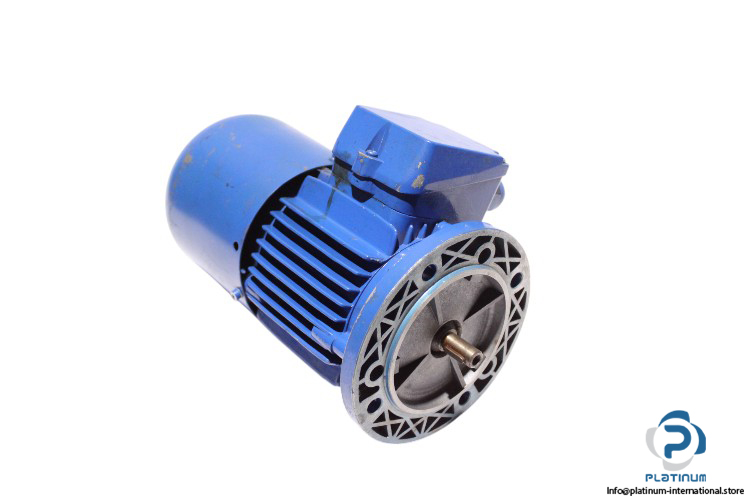

Euromotori 2MAFE 63-4 Brake Motor

EUROMOTORI 2MAFE 63-4 BRAKE MOTOR

The EUROMOTORI 2MAFE 63-4 Brake Motor offers efficient and reliable performance for a range of industrial applications. With a rated power of 0.18 kW, 1330 RPM, and a variety of voltage options, this motor is ideal for demanding environments that require consistent and precise operation.

Manufacturer: EUROMOTORI

Type: Brake Motor

Model: 2MAFE 63-4

Part no.: P-1163B03

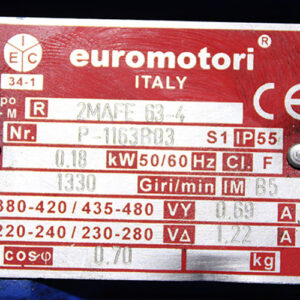

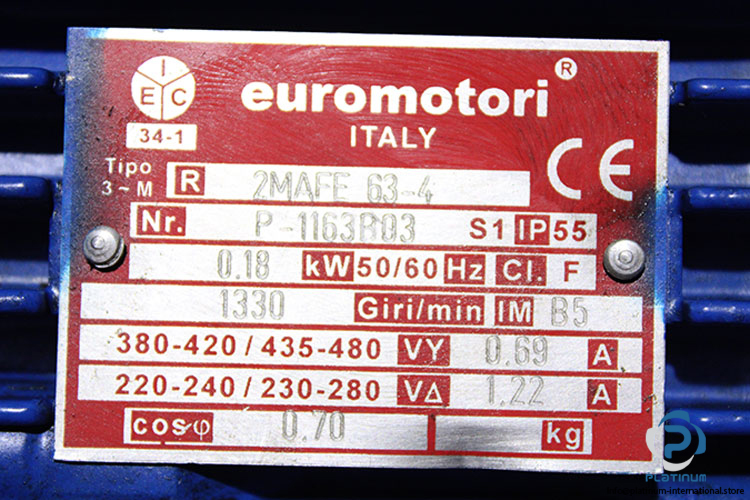

Technical Specifications

• Rated Power [kW]: 0.18
• Rated Voltage [V]:
  • 380 “ 420 / 435 “ 480 (star)
  • 220 “ 240 / 230 “ 280 (delta)
• Rated Current [A]: 0.69 / 1.22
• Rated Speed [giri/min]: 1330
• Frequency [Hz]: 50/60
• Protection Class [IP]: 55
• Thermal Class: F
• Duty: S1
• Mounting Positions: IMB5
• Power Factor [cos]: 0.7
