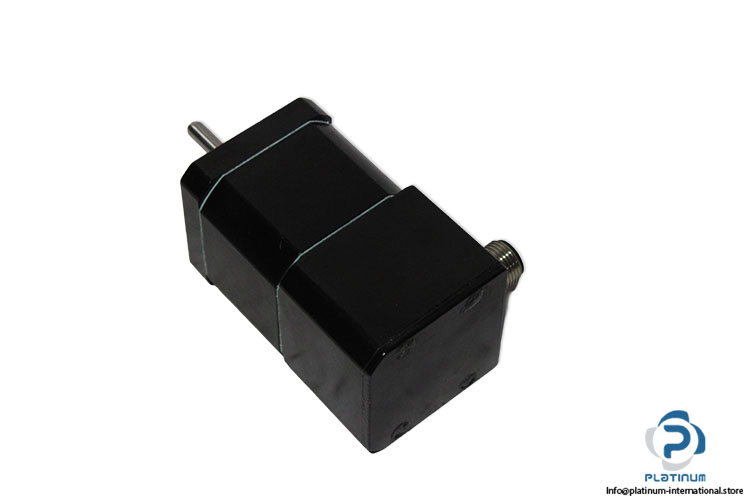

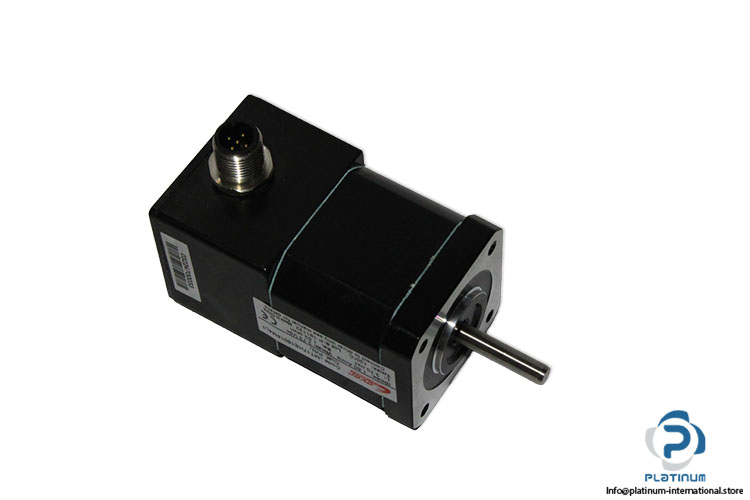

Ever MT17HE16018M4L1 Stepper Motor

In stock24 unitsReady to ship

244,44$

Stepper Motor The EVER MT17HE16018M4L1 is a high-efficiency NEMA 17 stepper motor delivering precise motion control with 1.80A current rating and hybrid 2-phase design.

Manufacturer
Ever Elettronica
SKU
1096852
Category
Servo Motors
Condition
New
Share
Massive Inventory

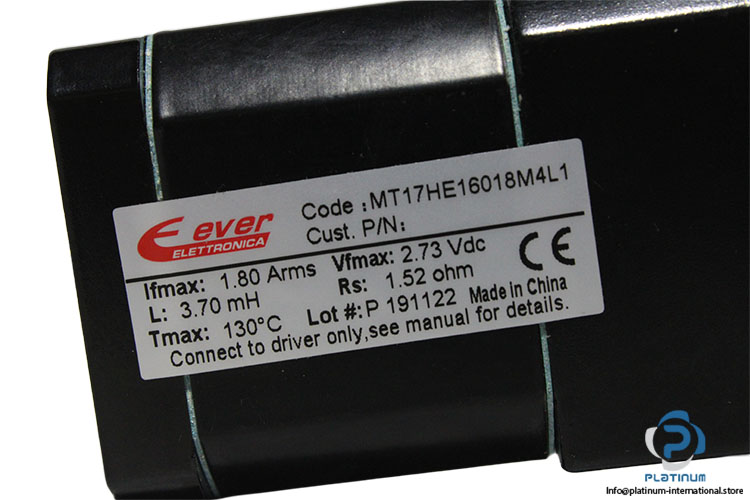

Global Shipping
Expert Support
Quality Guaranteed
Ref no.P 191122
Motor SizeNEMA 17
Current Rating (Ifmax)1.80A
Voltage Rating (Vfmax)2.73 V dc
Inductance (L)3.70 mH
Resistance (Rs)1.52 ohm
Max Temperature(Tmax)130 C
Step accuracy±5%
Temperaure rise80K max at nominal current
Ambient temperature-20° to +40° C
Insulation resistance100 Mohm min. 500Vdc.
Dielectric strength500 Vac 1 minute
Insulation classB, 130° C
Protection ShaftIP30
radial load21 N (at front shaft end)
Shaft axial load10 N
Motor shaftsingle shaft
2-phaseshigh efficiency hybrid step motors

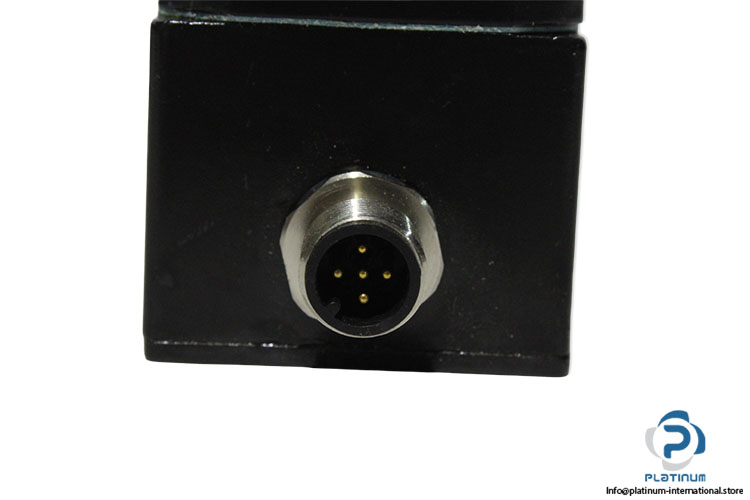

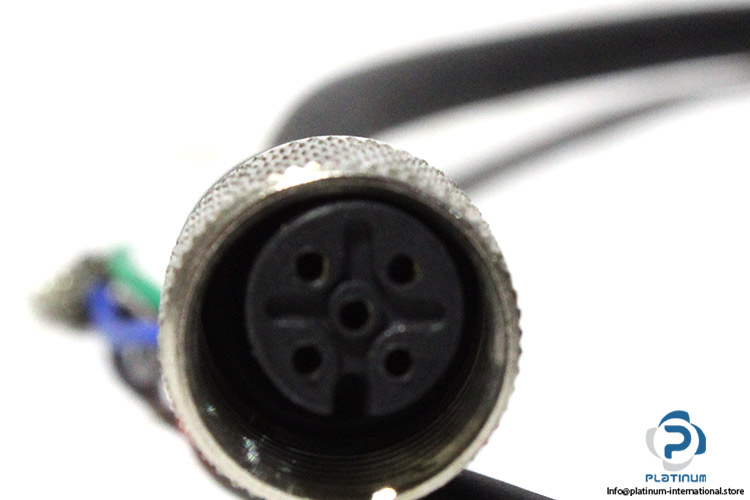

Connector TypeCircular Connector ,5-pin M12 female
Stock KeyJO-004
ConditionNew
SKU1096852
Weight0,4

More From Ever Elettronica

Ever SN4D2040H2L1-00 Stepper Motor Drive
New

Ever Elettronica

Ever SN4D2040H2L1-00 Stepper Motor Drive

SKU: 1099680

Qty: 1

Available through quotation
Ever MT23HE22028E4L3 Stepper Motor
New

Ever Elettronica

Ever MT23HE22028E4L3 Stepper Motor

SKU: 1096850

Qty: 30

199,99$
Ever SW4D2042H241-00 Stepper Motor Driver
New

Ever Elettronica

Ever SW4D2042H241-00 Stepper Motor Driver

SKU: 1093221

Qty: 1

Available through quotation
Ever MT23HE22042M4L1 Stepper Motor
New

Ever Elettronica

Ever MT23HE22042M4L1 Stepper Motor

SKU: 1096851

Qty: 68

199,99$

Related Products

SEW PSBF622/M EPH05/14/11 Planetary Servo Gear Unit
Used

SEW PSBF622/M EPH05/14/11 Planetary Servo Gear Unit

SKU: 998278

Qty: 1

Available through quotation
Alpha SP 140S-MF2-70-0G1-2S Planetary Gearbox
UsedAvailable on request

Alpha SP 140S-MF2-70-0G1-2S Planetary Gearbox

SKU: 968280

Available on request

Available through quotation
YIHAO YH 5um / 2200 LINEAR GRATING RULER
NewAvailable on request

YIHAO

YIHAO YH 5um / 2200 LINEAR GRATING RULER

SKU: 980402

Available on request

Available through quotation
Alpha SP 100-MC1-3-051-000 Planetary Gearbox
UsedAvailable on request

Alpha SP 100-MC1-3-051-000 Planetary Gearbox

SKU: 968344

Available on request

Available through quotation
Rexroth Star 1502-3-7065 Flanged Single NUT FEM-E-C
UsedAvailable on request

Rexroth Star 1502-3-7065 Flanged Single NUT FEM-E-C

SKU: 995397

Available on request

Available through quotation
Platinum International
Surplus, New & Used - Always Reliable
Ever Elettronica SKU: 1096852
Ever MT17HE16018M4L1 Stepper Motor
Ever MT17HE16018M4L1 Stepper Motor
Price244,44$
Stock24 In stock
ManufacturerEver Elettronica
CategoryServo Motors
ConditionNew
SKU1096852
Stepper Motor The EVER MT17HE16018M4L1 is a high-efficiency NEMA 17 stepper motor delivering precise motion control with 1.80A current rating and hybrid 2-phase design.
Description
Ref no.P 191122
Motor SizeNEMA 17
Current Rating (Ifmax)1.80A
Voltage Rating (Vfmax)2.73 V dc
Inductance (L)3.70 mH
Resistance (Rs)1.52 ohm
Max Temperature(Tmax)130 C
Step accuracy±5%
Temperaure rise80K max at nominal current
Ambient temperature-20° to +40° C
Insulation resistance100 Mohm min. 500Vdc.
Dielectric strength500 Vac 1 minute
Insulation classB, 130° C
Protection ShaftIP30
radial load21 N (at front shaft end)
Shaft axial load10 N
Motor shaftsingle shaft
2-phaseshigh efficiency hybrid step motors
Connector TypeCircular Connector ,5-pin M12 female
Stock KeyJO-004
ConditionNew
SKU1096852
Weight0,4
Technical Specifications
Weight0,4 kg
ManufacturerEver Elettronica
Type of ProductHigh efficiency STEPPER MOTOR
ModelMT17HE16018M4L1
Shelf No.260403
