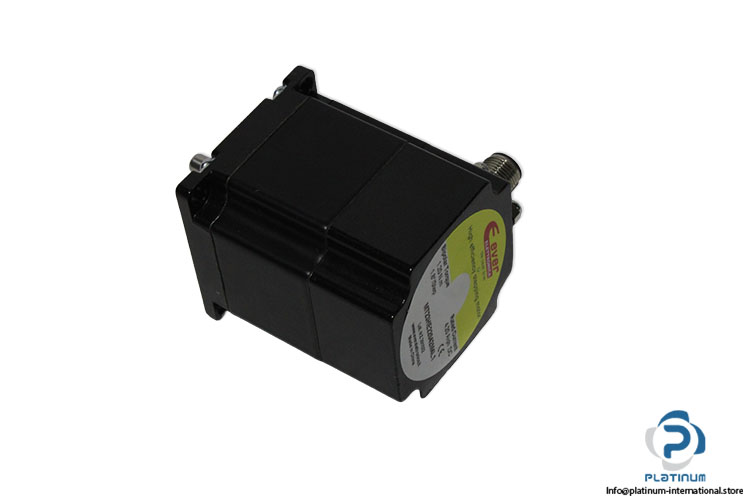

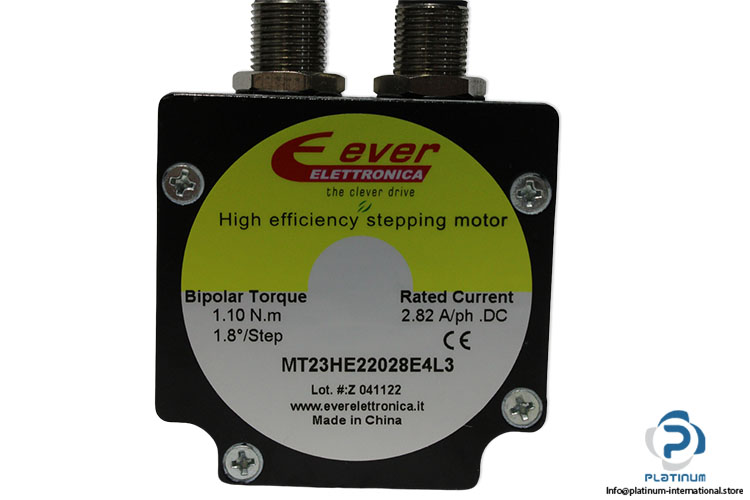

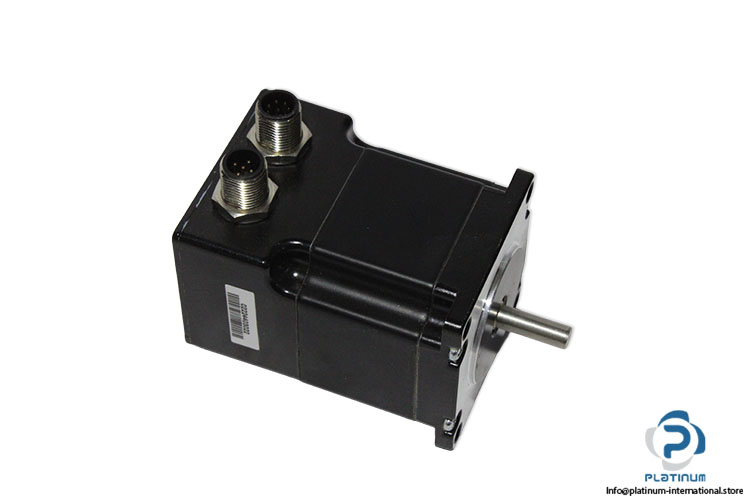

Ever MT23HE22028E4L3 Stepper Motor
New
In stock30 unitsReady to ship
199,99$
Stepper Motor The EVER ELETTRONICA MT23HE22028E4L3 is a high-efficiency NEMA 23 stepper motor delivering 1.10 N.m torque, 2.82 A/ph DC current, and precise 1.8° step angle with M12 connector.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ref no. | Z 041122 |
| Shaft diameter | 6,35 mm |
| Motor Size | NEMA 23 |
| number of motor stages | 2 |
| Bipolar Torque | 1.10 N.m |
| Rated Current | 2.82 A/ph .DC |
| STEP ANGLE AND ACCURACY | 1,8° ±5% |
| connection | 2 bipolar phases (4 wires) |
| ROTOR INERTIA | 280 g.cm.² |
| Step accuracy | ±5% |
| Temperaure rise | 80K max at nominal current |
| Ambient temperature | -20° C ~ +40° C |
| Insulation resistance | 100 Mohm min. 500Vdc. |
| Dielectric strength | 500 Vac 1 minute |
| Insulation class | B, 130° C |
| Protection Shaft | IP30 |
| radial load | 75 N (at front shaft end) |
| Shaft axial load | 15 N |
| Connector | Circular Connector m12 |
| Stock Key | jo-004 |
| Condition | New |
| SKU | 1096850 |
| Weight | 0,8 |
