Fafnir 3MMV216WIDUL Super Precision Angular Contact Ball Bearing
Manufacturer: FAFNIR
Type: Spindle Angular Contact Ball Bearing
Model: 3MMV216WI DUL
Replaces: 7216

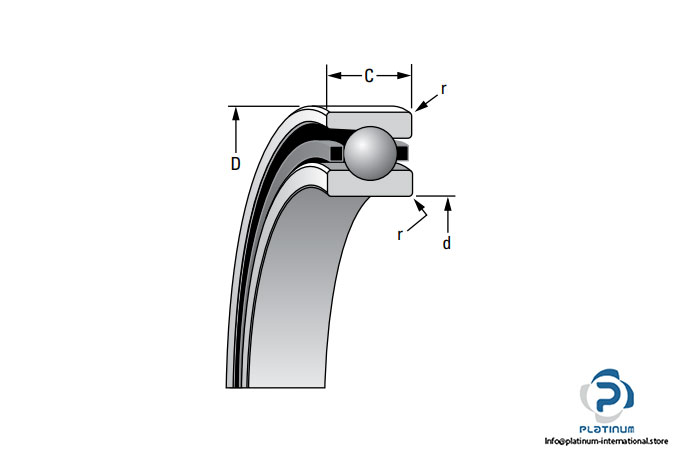

Dimensions
Bore Diameter d: 80 mm
Outer diameter D: 140 mm
Width C: 26 mm
Contact angle α: 25 °
Mounting: Duplex pairs of bearings
Basic load ratings:
Dynamic Cr: 73800 N
Static C0r: 98000 N
Operating Speed (DUL):
Grease: 7290 RPM
Oil: 12420 RPM
Preload (DUL): 1110 N
Cage: Molded reinforced nylon
