Fafnir Scjt 1 1/4 TWO-Bolt Flanged Unit
New
In stock3 unitsReady to ship
Manufacturer:
FAFNIR
Type:
Two-Bolt Flanged Mounted Bearings Setscrew Locking
Model:
SCJT 1 1/4
Bearing Number:
YA104/R
Housing Number:
T-40144
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: FAFNIR
Type: Two-Bolt Flanged Mounted Bearings Setscrew Locking
Model: SCJT 1 1/4
Bearing Number: YA104/R
Housing Number: T-40144
Series: SCJT

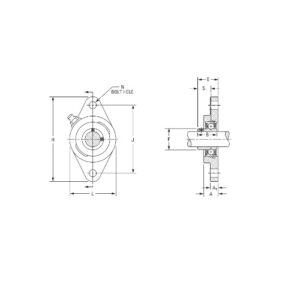

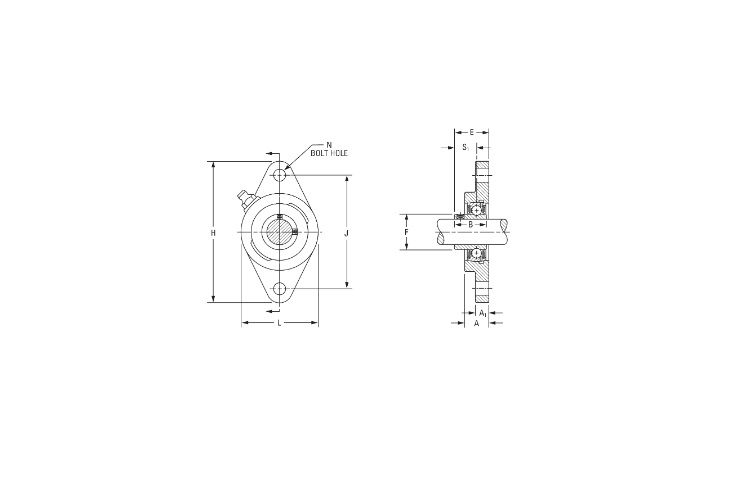

Dimensions
Shaft Size d: 1.25 Inch
Total Length H: 6.126 inch
Total Height L: 3.626 inch
Housing Width A: 0.969 inch
Bolt Hole Spacing J: 5.125 inch
Bolt Hole Size N : 0.516 inch
Inside Ring Width B: 1.4370 inch
Basic load rating:
Dynamic Cr: 3440 lbf
Static C0r: 6400 lbf
Seal Type: Narrow Shroud
Material, housing: Cast iron
Housing Construction: Two-Bolt Flange
Locking Device: Setscrew
