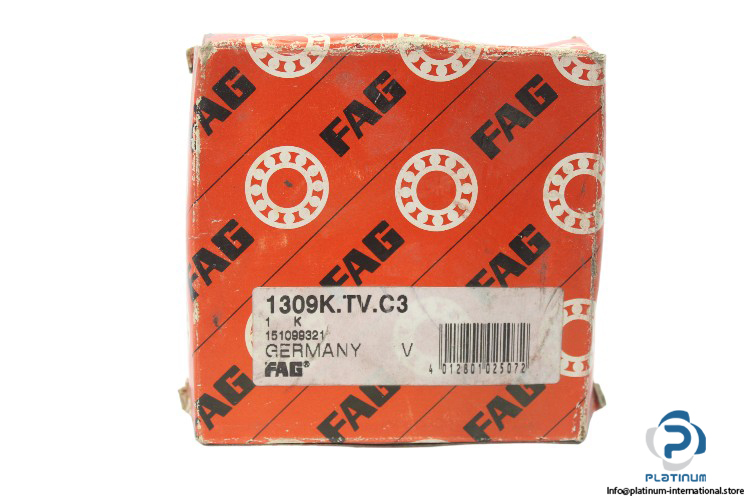

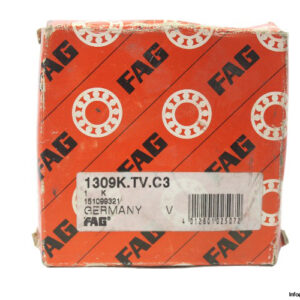

FAG 1309K.TV.C3 Self-Aligning Ball Bearing
New
In stock10 unitsReady to ship
Self-Aligning Ball Bearing
The FAG 1309K.TV.C3 is a durable self-aligning bearing with a 45 mm bore, K tapered bore, and C3 clearance. Designed for high-speed applications, it features a glass-fiber reinforced polyamide cage and supports speeds up to 7500 RPM.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 1309K.TV.C3 Self-Aligning Ball Bearing
The FAG 1309K.TV.C3 is a high-precision self-aligning ball bearing engineered to accommodate misalignment and shaft deflection in demanding applications. Featuring a C3 clearance class and a K tapered bore, this bearing ensures smooth operation under heavy dynamic and static loads.
Manufacturer: FAG
Type: Self-Aligning Ball Bearing
Model: 1309K.TV.C3
| Bore Diameter (d) | 45 mm |
| Outer Diameter (D) | 100 mm |
| Width | 25 mm |
| Dynamic Load Rating | 38,500 N |
| Static Load Rating | 12,700 N |
| Fatigue Load Limit | 810 N |
| Limiting Speed | 7500 RPM |
| Reference Speed | 6700 RPM |
| Cage | TV, solid cage made of glass-fiber reinforced polyamide PA66 |
| Bore Type | K, tapered bore |
| Clearance Class | C3 |
