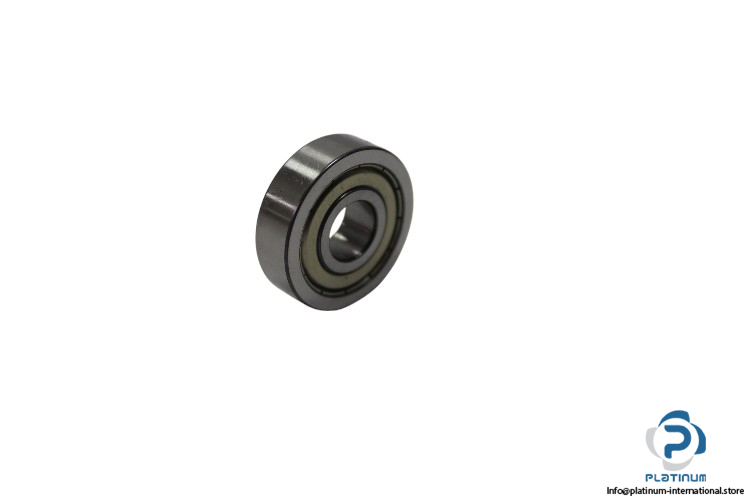

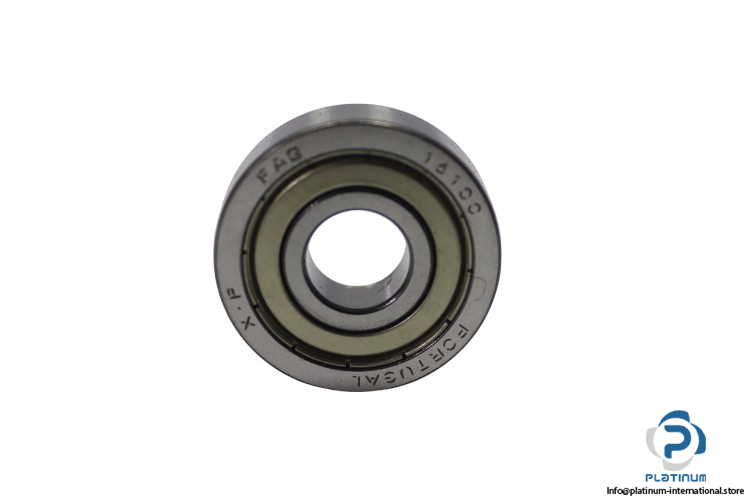

FAG 16100 2Z Deep Groove Ball Bearing
New
In stock9 unitsReady to ship
Deep Groove Ball Bearing
The FAG 16100 2Z is a high-performance deep groove ball bearing with a 10 mm bore, 2Z non-contact shields, and a steel sheet cage, optimized for high-speed, low-friction industrial use.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 16100 2Z Deep Groove Ball Bearing
The FAG 16100 2Z is a compact and efficient deep groove ball bearing designed for high-speed and low-friction applications. With steel sheet metal cage and 2Z non-contact shields on both sides, it offers reliable protection against contaminants while allowing for high rotational speeds and long service life.
Manufacturer: FAG
Type: Deep Groove Ball Bearing
Model: 16100 2Z
| Bore Diameter (d) | 10 mm |
| Outer Diameter (D) | 28 mm |
| Width (B) | 8 mm |
| Dynamic Load Rating (Cr) | 4,580 N |
| Static Load Rating (C0r) | 1,970 N |
| Fatigue Load Limit | 145 N |
| Limiting Speed | 34,500 1/min |
| Reference Speed | 28,500 1/min |
| Cage Type | Steel Sheet Metal |
| Sealing | 2Z, Non-contact Shield on Both Sides |
