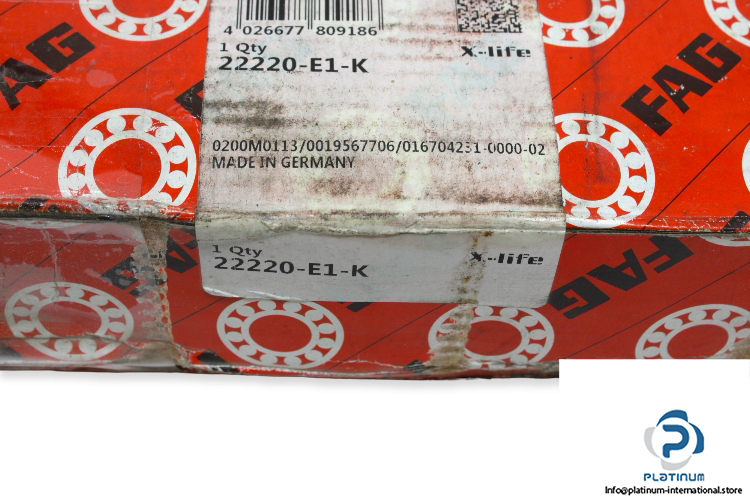

FAG 22220-E1-K Spherical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing with tapered bore

Model: 22220 E1-K

Replaces: 22220-E1-XL-K, 22220E1K

Dimensions:

Bore Diameter d: 100 mm

Outer diameter D: 180 mm

Width: 46 mm

Bore type: Tapered, taper 1:12

Dynamic load rating: 430000 N

Static load rating: 475000 N

Fatigue load limit: 53000 N

limiting speed: 4550 RPM

Reference speed: 3150 RPM

Cage material: Sheet metal cage

Operating temperature: -30 … +200 °C
