FAG 23024 Esk.tvpb Spherical Roller Bearing
New
In stock3 unitsReady to ship
Spherical Roller Bearing
The FAG 23024 ESK.TVPB is a heavy-duty spherical roller bearing with a 120 mm tapered bore, plastic TVPB cage, and high load ratings for industrial applications. Offers smooth operation at speeds up to 3950 RPM.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

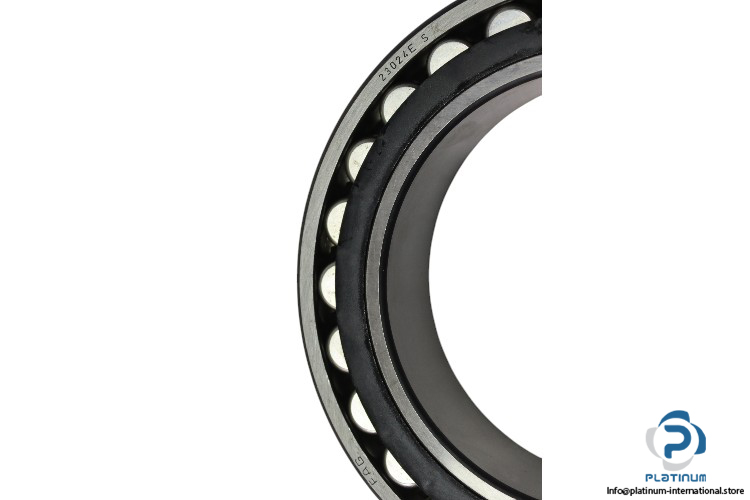

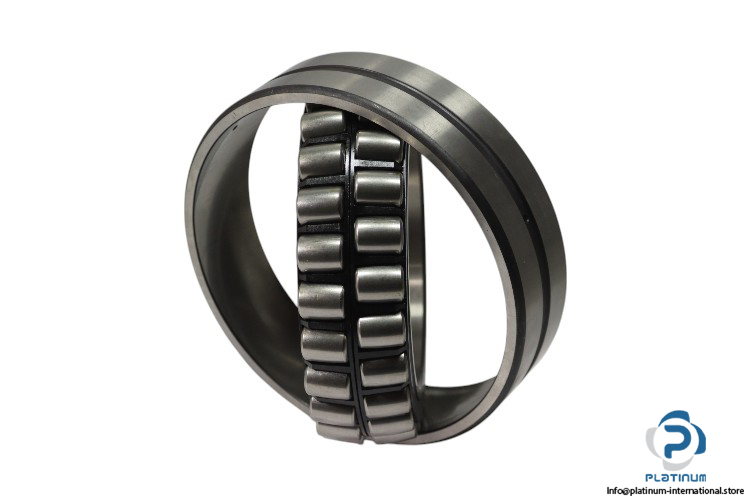

FAG 23024 ESK.TVPB Spherical Roller Bearing
The FAG 23024 ESK.TVPB is a high-performance spherical roller bearing designed for heavy-duty applications. With a K-type tapered bore (1:12 taper), a TVPB plastic cage, and superior dynamic and static load ratings, it ensures durability, reduced friction, and efficient load distribution under extreme conditions.
Manufacturer: FAG
Type: Spherical Roller Bearing
Model: 23024 ESK.TVPB
| Bore Diameter (d) | 120 mm |
| Outer Diameter (D) | 180 mm |
| Width (B) | 46 mm |
| Dynamic Load Rating (Cr) | 430,000 N |
| Static Load Rating (C‚r) | 580,000 N |
| Fatigue Load Limit (Radial) | 60,000 N |
| Limiting Speed | 3950 RPM |
| Reference Speed | 2800 RPM |
| Cage Type | TVPB, Plastic Cage |
| Bore Type | K, Tapered (1:12 taper) |
