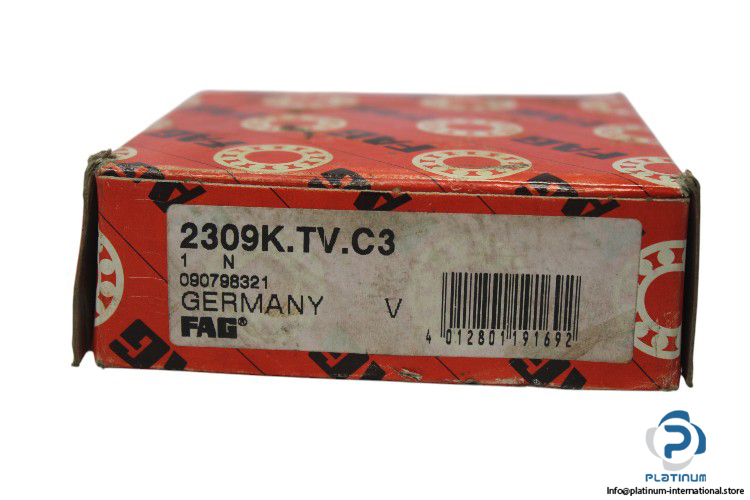

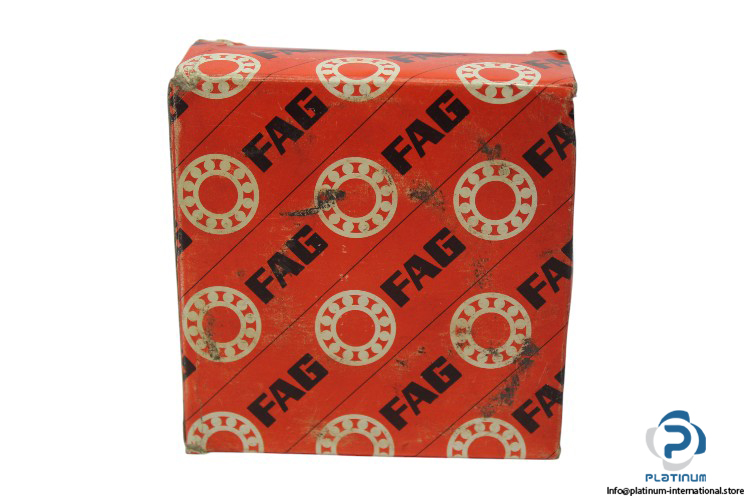

FAG 2309K.TV.C3 Self-Aligning Ball Bearing
New
In stock13 unitsReady to ship
Self-Aligning Ball Bearing
The FAG 2309K.TV.C3 is a high-performance self-aligning bearing with a 45 mm bore, K tapered bore, and C3 clearance. It features a durable TV polyamide cage and is ideal for applications with dynamic loads and shaft misalignment.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 2309K.TV.C3 Self-Aligning Ball Bearing
The FAG 2309K.TV.C3 is a self-aligning ball bearing designed for applications requiring high tolerance to shaft misalignment and dynamic loads. Featuring a K tapered bore and C3 internal clearance, it ensures smooth operation under varying conditions. The solid TV cage, made of glass-fiber reinforced polyamide PA66, provides enhanced durability and low friction performance.
Manufacturer: FAG
Type: Self-Aligning Ball Bearing
Model: 2309K.TV.C3
| Bore Diameter (d) | 45 mm |
| Outer Diameter (D) | 100 mm |
| Width (B) | 36 mm |
| Dynamic Load Rating | 55,000 N |
| Static Load Rating | 16,600 N |
| Fatigue Load Limit | 1,060 N |
| Limiting Speed | 7,000 1/min |
| Reference Speed | 8,000 1/min |
| Cage | TV, solid cage made of glass-fiber reinforced polyamide PA66 |
| Bore Type | K, Tapered bore |
| Clearance | C3 |
