FAG 23230ES.TVPB Spherical Roller Bearing

Name: FAG 23230ES.TVPB SPHERICAL ROLLER BEARING
SKU: 1086606
Availability: LimitedAvailability

fag-23230ES.TVPB-spherical-roller-bearing-new

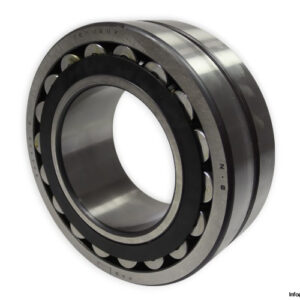

fag-23230ES.TVPB-spherical-roller-bearing-new-1

New

In stock1 unitReady to ship

SPHERICAL ROLLER BEARING

FAG 23230ES.TVPB Spherical Roller Bearing with 150 mm bore, 270 mm outer diameter, and 96 mm width. Features a plastic cage, high load ratings, and cylindrical bore for reliable heavy-duty applications.

Manufacturer

FAG

SKU

1086606

Category

Spherical Bearings

Condition

New

150 23230ES.TVPB 270°bearing bore Cage Capacity Cylindrical diameter Duty Fag Heavy High Industrial Load mm Outer Plastic Roller Spherical

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

FAG 23230ES.TVPB SPHERICAL ROLLER BEARING

The FAG 23230ES.TVPB is a high-capacity spherical roller bearing designed for heavy-duty industrial applications. With its cylindrical bore and reinforced plastic cage (TVPB), it offers durability, high load resistance, and consistent performance even under challenging operating conditions.

Manufacturer: FAG

Type: Spherical Roller Bearing

Model: 23230ES.TVPB

Bore Diameter (d)	150 mm
Outer Diameter (D)	270 mm
Width (B)	96 mm
Dynamic Load Rating	1,280,000 N
Static Load Rating	1,660,000 N
Fatigue Load Limit	133,000 N
Limiting Speed	2400 1/min
Reference Speed	1400 1/min
Cage Type	TVPB (Plastic Cage)
Temperature Range	-30 °C to 120 °C
Bore Type	Cylindrical
