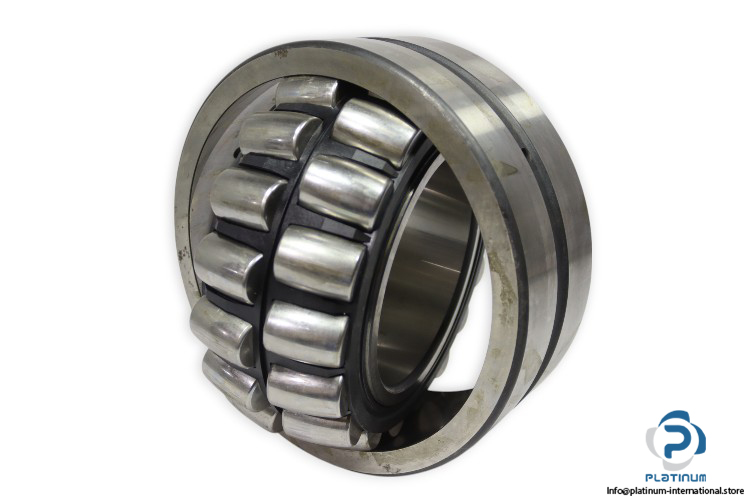

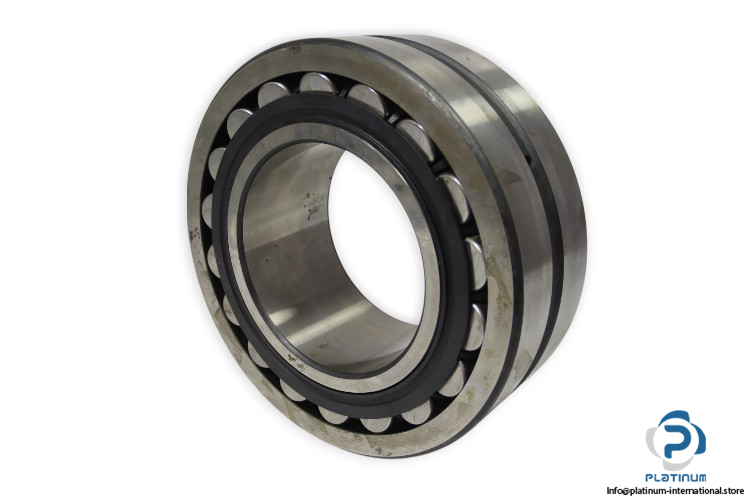

FAG 23232ES.TVPB Spherical Roller Bearing

Name: FAG 23232ES.TVPB SPHERICAL ROLLER BEARING
SKU: 1086607
Availability: LimitedAvailability

fag-23232ES.TVPB-spherical-roller-bearing-new

fag-23232ES.TVPB-spherical-roller-bearing-new-1

New

In stock1 unitReady to ship

SPHERICAL ROLLER BEARING

FAG 23232ES.TVPB spherical roller bearing with 160 mm bore, 290 mm outer diameter, and 104 mm width. Features plastic TVPB cage, cylindrical bore, and high load ratings for demanding industrial use.

Manufacturer

FAG

SKU

1086607

Category

Spherical Bearings

Condition

New

160 23232ES.TVPB bearing bore Cage Capacity Cylindrical Duty Fag Heavy High Industrial Load mm Roller Spherical Tvpb

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

FAG 23232ES.TVPB SPHERICAL ROLLER BEARING

The FAG 23232ES.TVPB is a high-capacity spherical roller bearing engineered for heavy-duty industrial applications. With a cylindrical bore, reinforced plastic cage, and excellent load ratings, it delivers reliable performance and extended service life even under demanding operating conditions.

Manufacturer: FAG

Type: Spherical Roller Bearing

Model: 23232ES.TVPB

Bore Diameter (d)	160 mm
Outer Diameter (D)	290 mm
Width (B)	104 mm
Dynamic Load Rating	1,460,000 N
Static Load Rating	1,910,000 N
Fatigue Load Limit	150,000 N
Limiting Speed	2,210 1/min
Reference Speed	1,280 1/min
Cage Type	TVPB (Plastic Cage)
Temperature Range	-30 to 120 °C
Bore Type	Cylindrical
