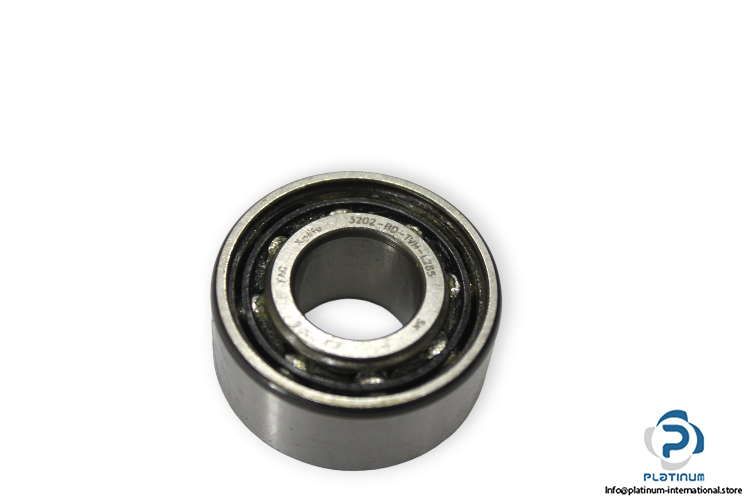

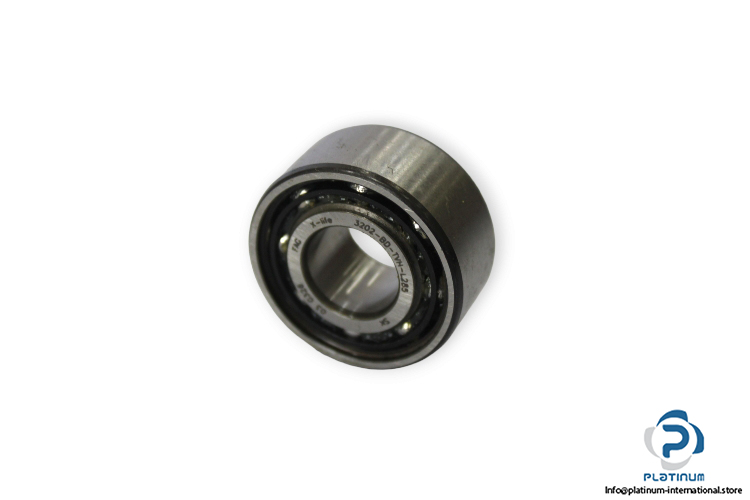

FAG 3202-BD-TVH-L285 Double ROW Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Double Row Angular Contact Ball Bearing

Model: 3202BD-TVH-L285

Replaces: 3203-BD-XL-TVH-L285, 3203-B-TVH

Dimensions

Bore Diameter d: 15 mm

Outer diameter D: 35 mm

Width B: 15.9 mm

Contact angle: 30 °

Basic load ratings, radial:

Dynamic C_r: 12600 N

Static C_0r: 7400 N

Fatigue load limit C_ur: 520 N

Limiting speed: 16700 rpm

Reference speed: 18500 rpm

Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66

Lubricant: Grease L285

Operating temperature: -20 … +120 °C
