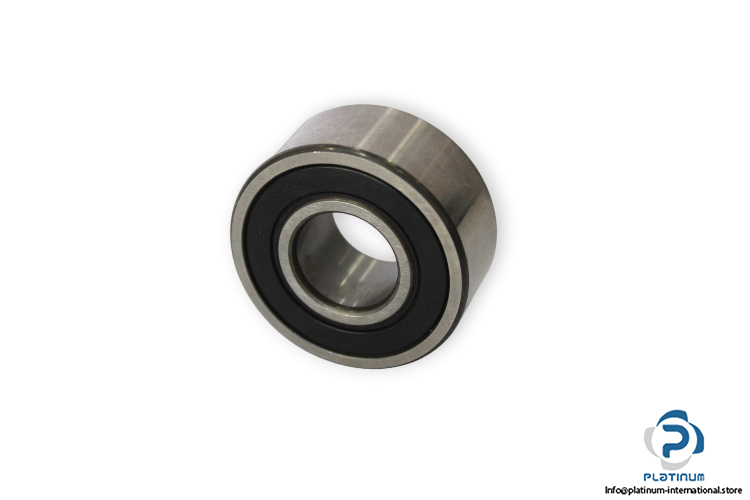

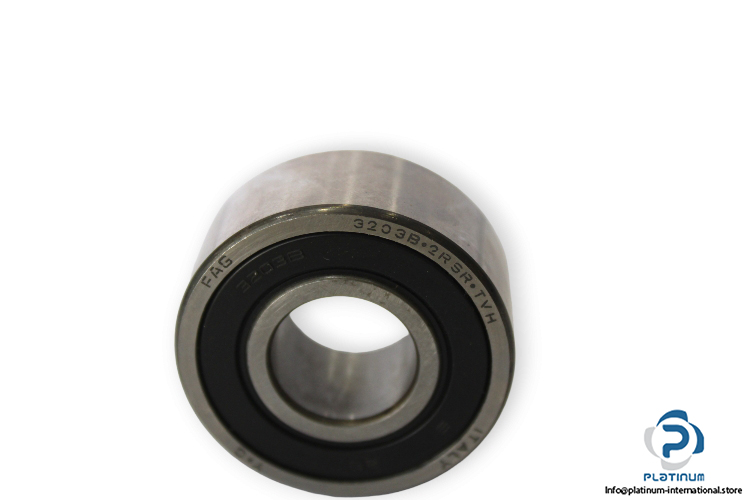

FAG 3203B.2RSR.TVH Double ROW Angular Contact Ball Bearing
New
Available on request
Angular Contact Ball Bearing
Double row FAG angular contact ball bearing with rubber seals on both sides, reinforced polyamide cage, and high load capacity for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

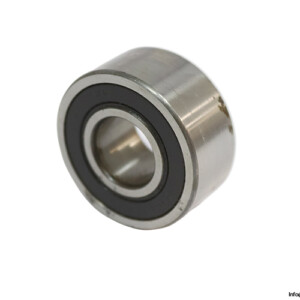

FAG 3203B.2RSR.TVH Angular Contact Ball Bearing
The FAG 3203B.2RSR.TVH is a double row angular contact ball bearing designed to support combined radial and axial loads while ensuring reliable performance and long service life in industrial applications.
Manufacturer: FAG / Schaeffler
Type: Double Row Angular Contact Ball Bearing
Model: 3203B.2RSR.TVH
| Bore Diameter (d) | 17 mm |
| Outer Diameter (D) | 40 mm |
| Width (B) | 17.5 mm |
| Contact Angle | 30° |
| Dynamic Load Rating (Cr) | 15,500 N |
| Static Load Rating (C0r) | 9,500 N |
| Fatigue Load Limit (Cur) | 660 N |
| Limiting Speed | 14,600 rpm |
| Cage | TVH, solid cage made of glass-fiber reinforced polyamide PA66 |
| Sealing | 2RSR, rubber seals on both sides |
| Design Variant | B, bearing without filling slot |
| Operating Temperature Range | -20 to +100 °C |
