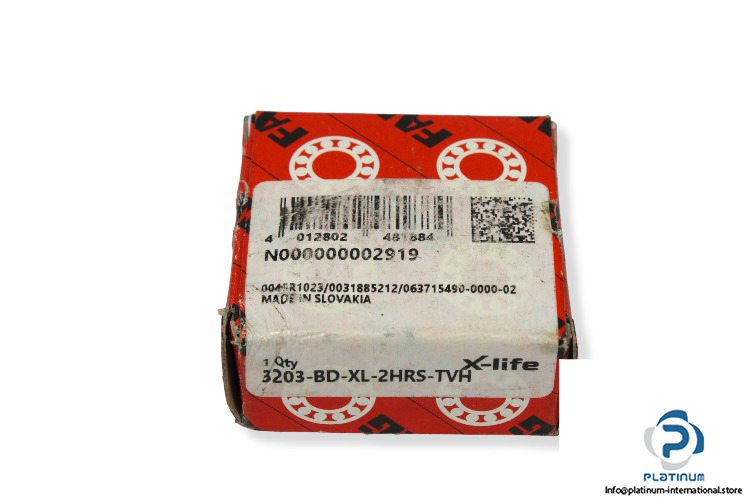

FAG 3203-BD-XL-2HRS-TVH Double ROW Angular Contact Ball Bearing
Manufacturer: Schaeffler FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3203 BD XL 2HRS TVH
Replaces: 3203-B-2RSR-TVH, 3203-BD-2HRS-TVH

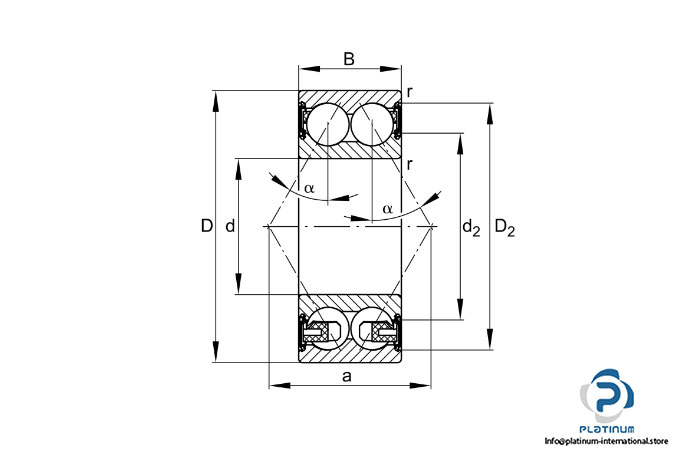

Dimensions
Bore Diameter d: 17 mm
Outer diameter D: 40 mm
Width B: 17.5 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 15500 N
Static C0r: 9500 N
Fatigue load limit Cur: 660 N
Limiting speed: 14600 rpm
Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
Seal: 2HRS, Contact seal on both sides
Operating temperature: -20 … +100 °C
