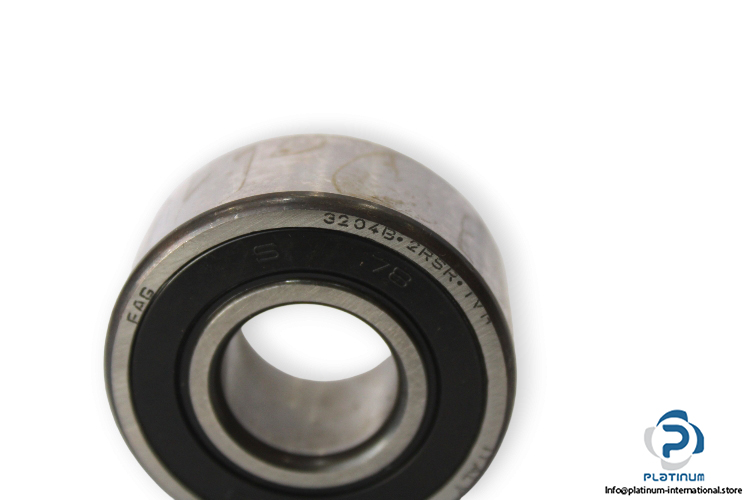

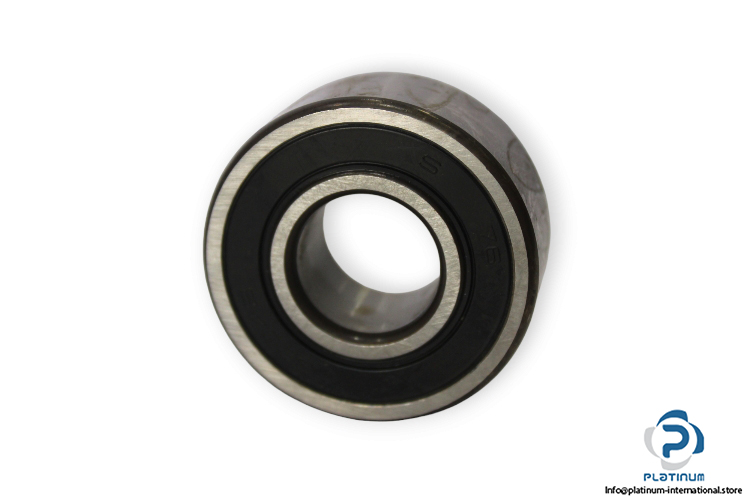

FAG 3204B.2RSR.TVH Double ROW Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Double Row Angular Contact Ball Bearing

Model: 3204 B.2RSR.TVH

Dimensions

Bore Diameter d: 20 mm

Outer diameter D: 47 mm

Width B: 20.6 mm

Contact angle: 30 °

Basic load ratings:

Dynamic C_r: 20600 N

Static C_0r: 12900 N

Fatigue load limit C_ur: 900 N

Limiting speed: 12100 rpm

Sealing: Contact seal on both sides

Lubricant : GA14, Ball bearing grease, low noise

Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
