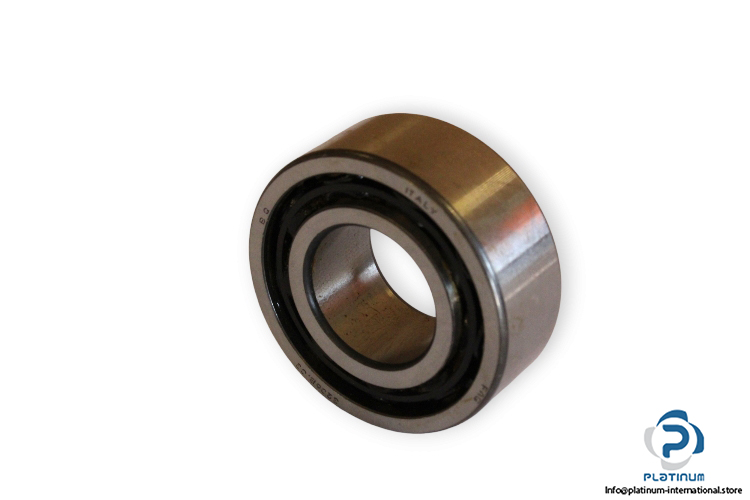

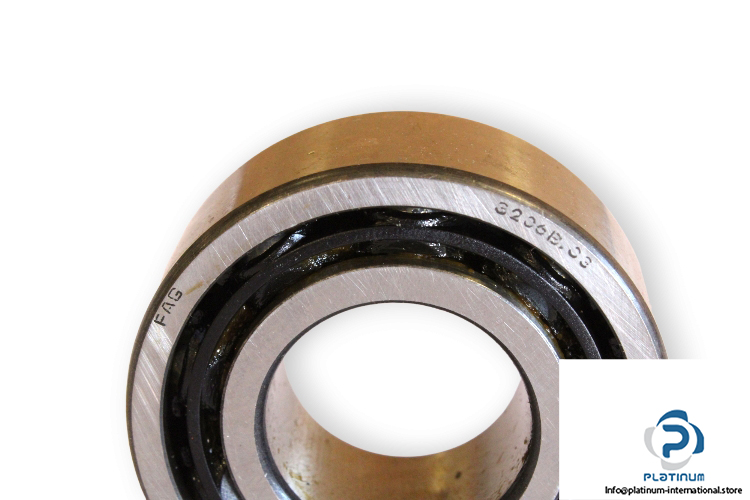

FAG 3206B.C3 Double ROW Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3206 B.C3

Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 62 mm
Width B: 23.8 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C_r: 31000 N
Static C_0r: 22200 N
Fatigue load limit C_ur: 1540 N
Limiting speed: 9000 rpm
Reference speed: 11100 rpm
Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
Axial internal clearance: C3
Lubricant: L285, Grease
