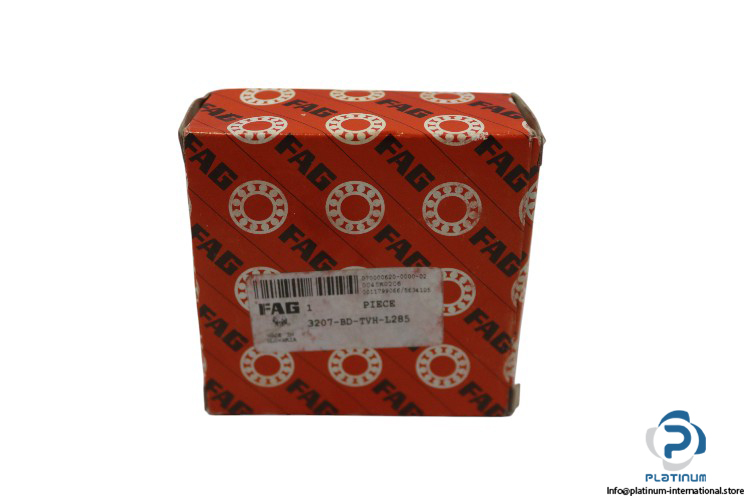

FAG 3207-BD-TVH-L285 Double ROW Angular Contact Ball Bearing
New
In stock3 unitsReady to ship
23,99$
Double Row Angular Contact Ball Bearing
FAG 3207-BD-TVH-L285 Double Row Angular Contact Ball Bearing features a 35 mm bore diameter and 72 mm outer diameter, designed to handle high axial loads and high speeds, with a contact angle of 30°.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 3207-BD-TVH-L285 Double Row Angular Contact Ball Bearing
The FAG 3207-BD-TVH-L285 Double Row Angular Contact Ball Bearing is designed to handle high axial loads in both directions, offering excellent performance for applications requiring high-speed operation and robust load capacity.
Manufacturer: FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3207-BD-TVH-L285
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 72 mm |
| Width (B) | 27 mm |
| Contact Angle | 30 ° |
| Dynamic Load Rating (Cr) | 41,000 N |
| Static Load Rating (C0r) | 30,000 N |
| Fatigue Limit Load (Cur) | 2,090 N |
| Limiting Speed | 7,600 1/min |
| Reference Speed | 9,900 1/min |
| Cage Design | TVH, Solid cage made of glass-fiber reinforced polyamide PA66 |
| Lubricant | L285, Grease |
