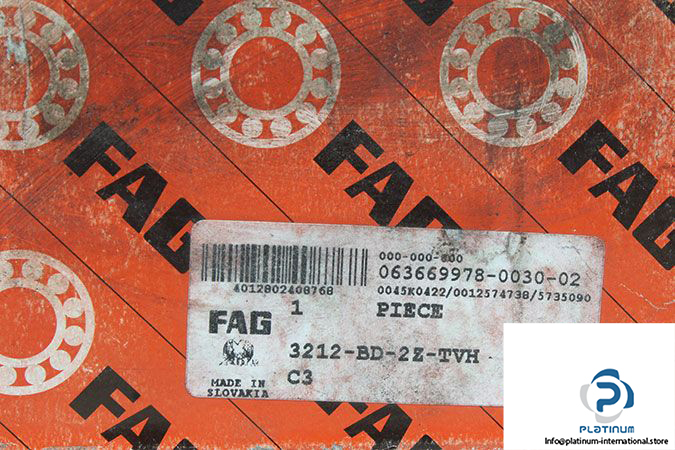

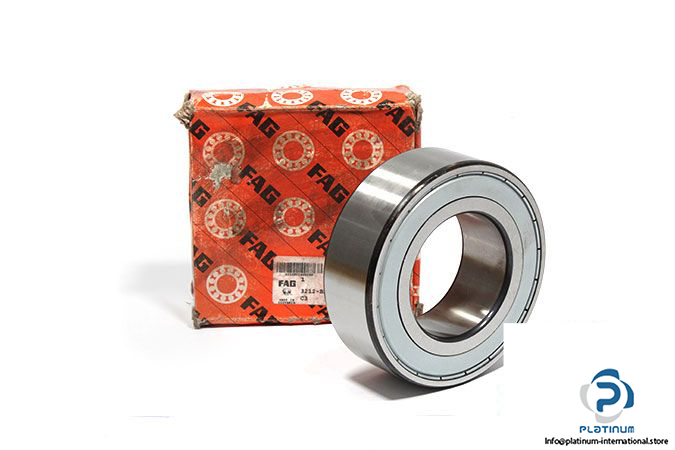

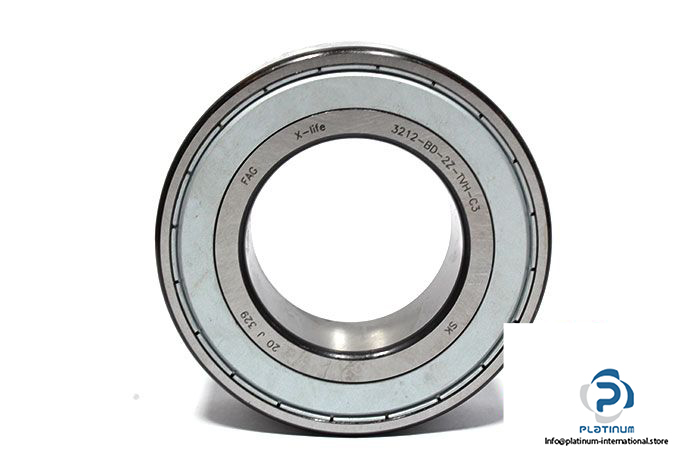

FAG 3212-BD-2Z-TVH/C3 Double ROW Angular Contact ‎Ball Bearing ‎

Manufacturer: Schaeffler FAG

Type: Double row angular contact ball bearing

Part No: 3212-BD-2Z-TVH/C3

Bore Diameter d: 60 mm

Outer diameter D: 110 mm

Width B: 36.5 mm

Chamfer r_min: 1.5 mm

Contact Angle: 30°

Basic load ratings:

Dynamic C_r: 75 kN

Static C_0r: 64 kN

Fatigue limit load C_ur: 4400 N

Limiting Speed: 4750 rpm

Reference speed: 6700 rpm

Cage design: TVH; Solid cage made from glass fibre reinforced polyamide PA66, ball-guided

Seal: ZZ; Non-contact sealing shield on both sides (sheet metal gap seal)
