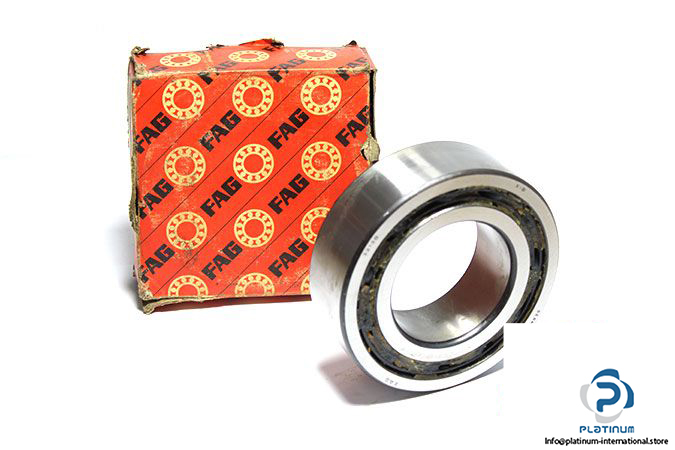

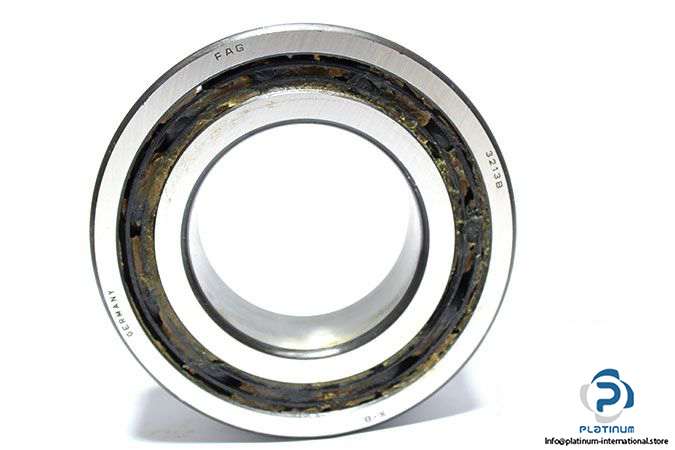

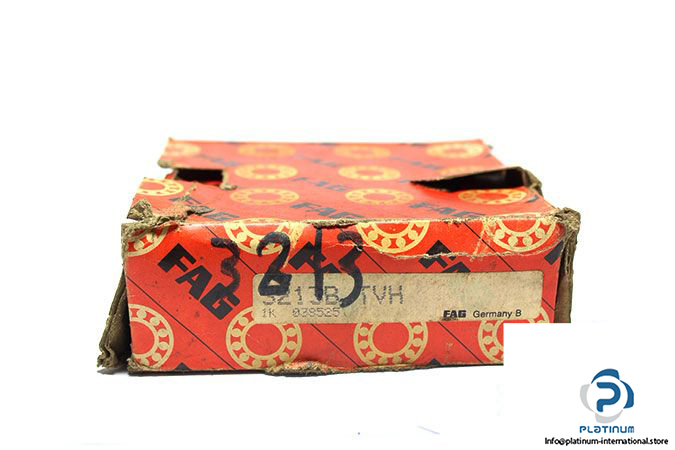

FAG 3213B.TVH Double ROW Angular Contact Ball Bearing
Manufacturer: Schaeffler FAG
Type: Double row angular contact ball bearing
Part No: 3213B.TVH
Bore Diameter: 65 mm
Outer diameter: 120 mm
Width: 38.1 mm
Chamfer rmin: 1.5 mm
Contact Angle: 25°
Design: Modified internal construction, nominal contact angle, without filling slot
Cage: Solid cage made from glass fibre reinforced polyamide PA66, ball-guided
Weight: 1.64 kg
