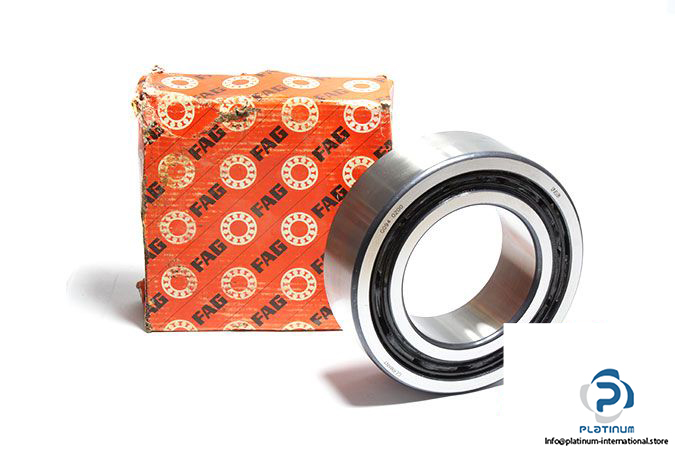

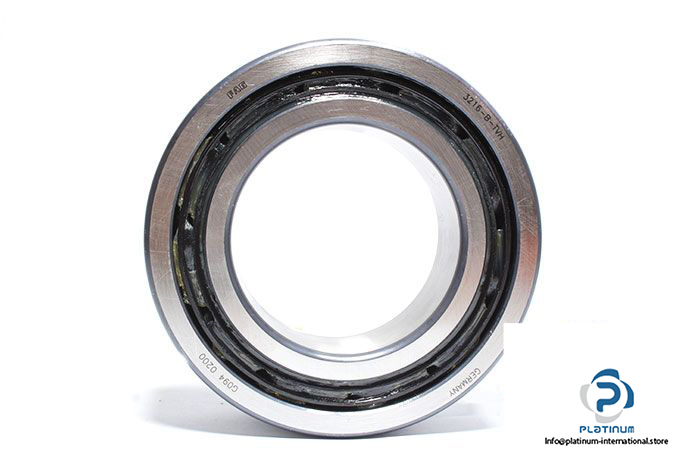

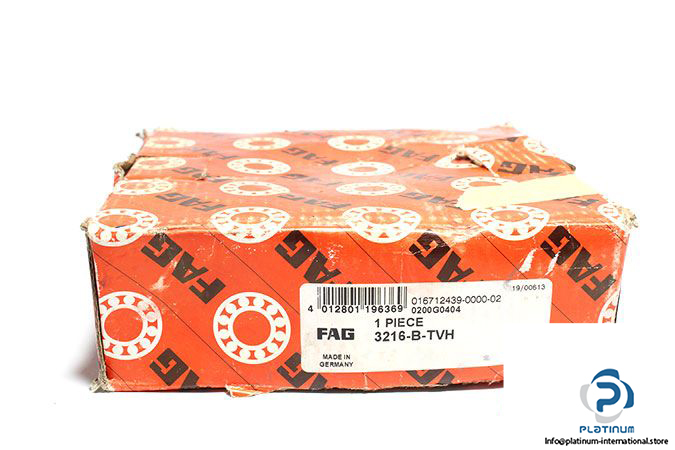

FAG 3216-B-TVH Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact ball bearing ( Spindle Bearing)

Part No: 3216-B-TVH

Replaces: 3216B.TVH

Bore Diameter: 80 mm

Outer Diameter: 140 mm

Width: 44.4 mm

Chamfer r_min: 2 mm

Contact Angel: 25°

Basic Load Ratings:

Dynamic C_r: 99 kN

Static C_0r: 102 kN

Fatigue Limit Load C_ur: 5100 N

Limiting Speed: 4900 rpm

Reference Speed: 5100 rpm

Cage Design: TVH, Solid cage made from glass fibre reinforced polyamide PA66, ball-guided

Weight: 2.4 kg
