Bearings Rolling Bearings Angular Contact

FAG 3302 Btvh Double ROW Angular Contact Ball Bearing

Name: FAG 3302 BTVH DOUBLE ROW ANGULAR CONTACT BALL BEARING
Brand: FAG
SKU: 997357
Availability: LimitedAvailability

fag-3302-BTVH-angular-contact-ball-bearing

fag-3302-btvh-angular-contact-ball-bearing-1

fag-3302-btvh-angular-contact-ball-bearing-2

New

In stock2 unitsReady to ship

Angular Contact Ball Bearing

Double row FAG 3302BTVH angular contact ball bearing with 30° contact angle, polyamide cage, and high load carrying capacity for industrial applications.

Manufacturer

FAG

SKU

997357

Category

Angular Contact

Condition

New

3302BTVH Angular Ball bearing Cage Contact Double Fag High Industrial Load Polyamide Precision Row Schaeffler

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

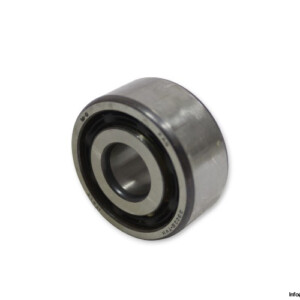

Schaeffler / FAG 3302BTVH Angular Contact Ball Bearing

The Schaeffler / FAG 3302BTVH is a double row angular contact ball bearing designed to accommodate combined radial and axial loads while maintaining high operational reliability and long service life in industrial applications.

Manufacturer: Schaeffler / FAG

Type: Double Row Angular Contact Ball Bearing

Model: 3302BTVH

Replaces: 3302-BD-XL-TVH

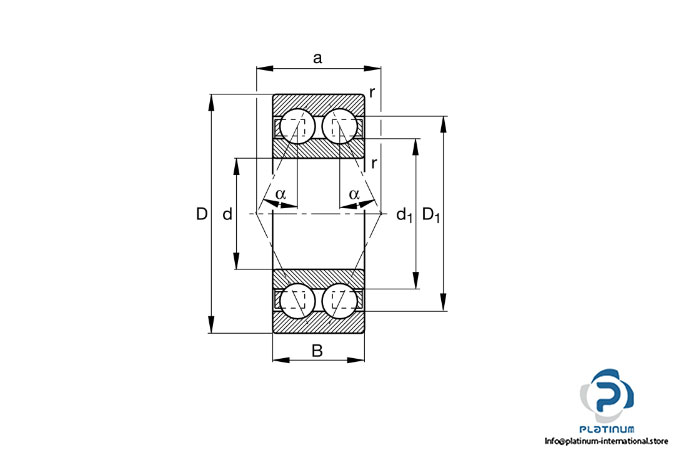

Bore Diameter (d)	15 mm
Outer Diameter (D)	42 mm
Width (B)	19 mm
Contact Angle	30°
Dynamic Load Rating (Cr)	17,000 N
Static Load Rating (C0r)	10,400 N
Fatigue Load Limit	720 N
Cage	TVH, solid cage made of glass-fiber reinforced polyamide PA66
