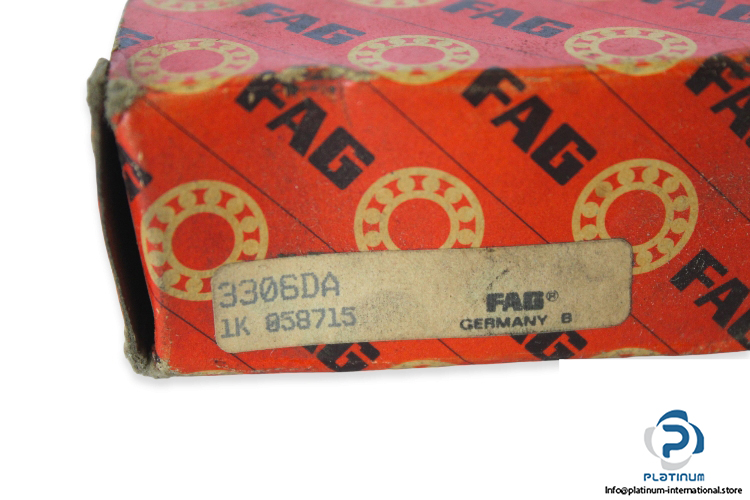

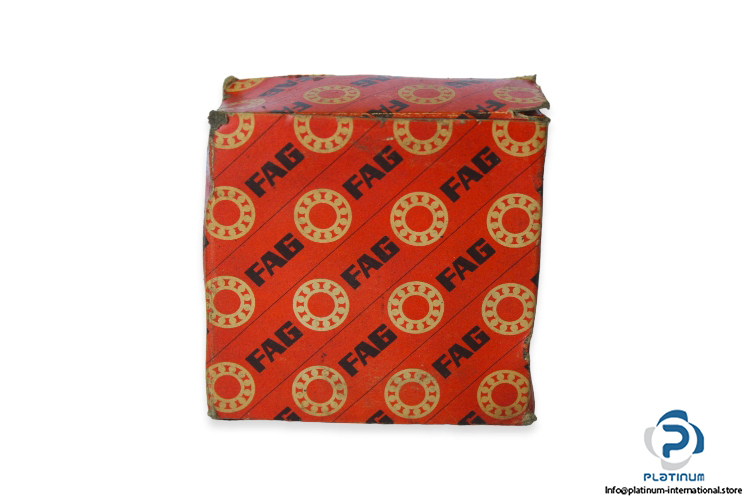

FAG 3306DA Double ROW Angular Contact Ball Bearing
Manufacturer: Schaeffler FAG
Type: Double Row Angular Contact Ball Bearing With split separable inner ring
Model: 3306DA
Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 72 mm
Width B: 30.2 mm
Contact angle: 45 °
Basic load ratings, radial:
Dynamic Cr: 41500 N
Static C0r: 34500 N
Fatigue load rating: 1870 N
Limiting Speed : 10900 rpm
Reference speed: 7500 rpm
Cage: steel sheet metal
Operating temperature: -30 … +150 °C
