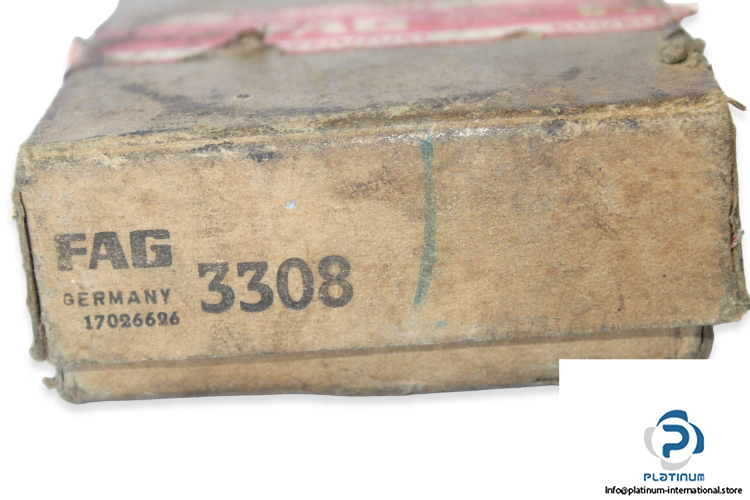

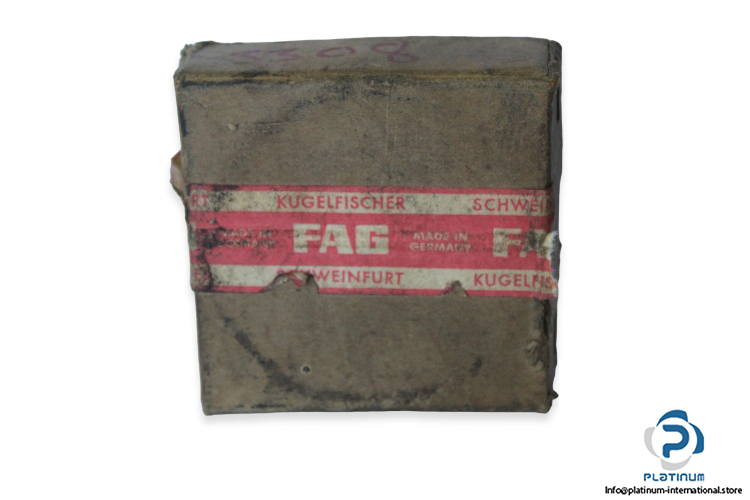

FAG 3308 Double ROW Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Double Row Angular Contact Ball Bearing

Model: 3308

Dimensions

Bore Diameter d: 40 mm

Outer diameter D: 90 mm

Width B: 36.5 mm

Contact angle: 30 °

Basic load ratings, radial:

Dynamic C_r: 67000 N

Static C_0r: 48500 N

Fatigue load rating: 3350 N

Limiting Speed : 8000 rpm

Reference speed: 7000 rpm

Operating temperature: -30 … +120 °C
