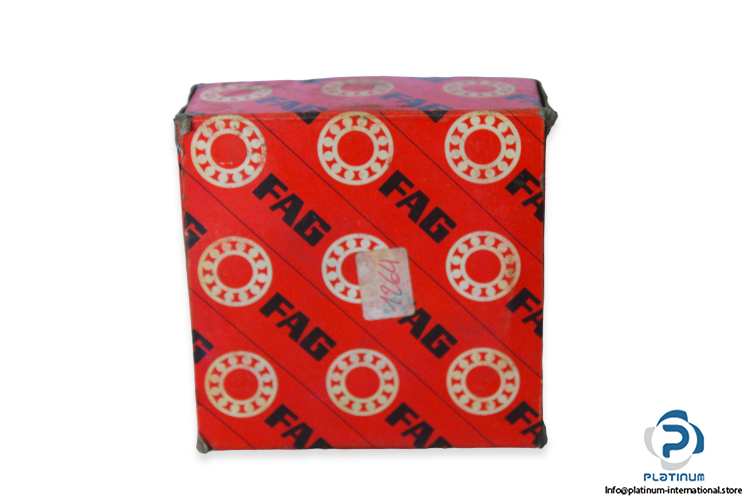

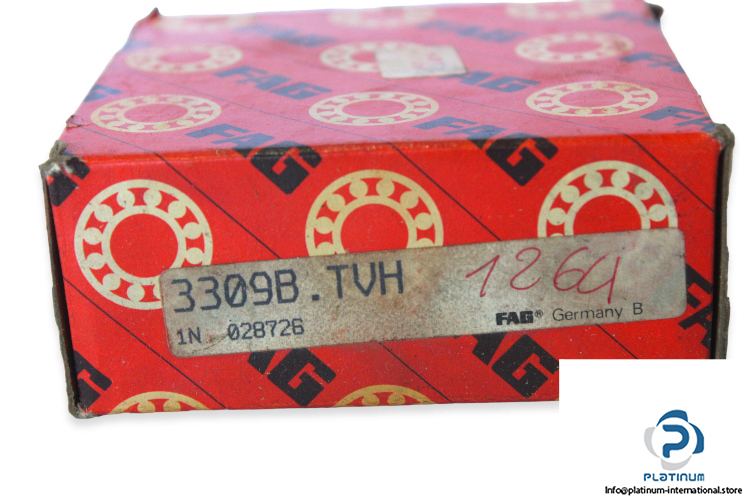

FAG 3309B.TVH Double ROW Angular Contact Ball Bearing
Manufacturer: Schaeffler FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3309B.TVH
Replaces: 3309-BD-XL-TVH-L285
Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 100 mm
Width B: 39.7 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 72000 N
Static C0r: 54000 N
Fatigue load rating : 3700 N
Limiting Speed : 5500 rpm
Reference speed: 6700 rpm
Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
Operating temperature: -20 … +120 °C
