FAG 3310B.TVH Double ROW Angular Contact Ball Bearing
New
In stock1 unitReady to ship
Double Row Angular Contact Ball Bearing
The FAG 3310B.TVH bearing features a 50 mm bore diameter, 93,000 N dynamic load rating, and a solid glass-fiber reinforced polyamide PA66 cage, offering high performance for high-load and high-speed industrial applications.0003310B.TVH5093AngularBallbearingboreCageContactdiameterDoubleDynamicFagGlass-FiberHigh-SpeedIndustrialLoadmmNPA66RatingreinforcedRow
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

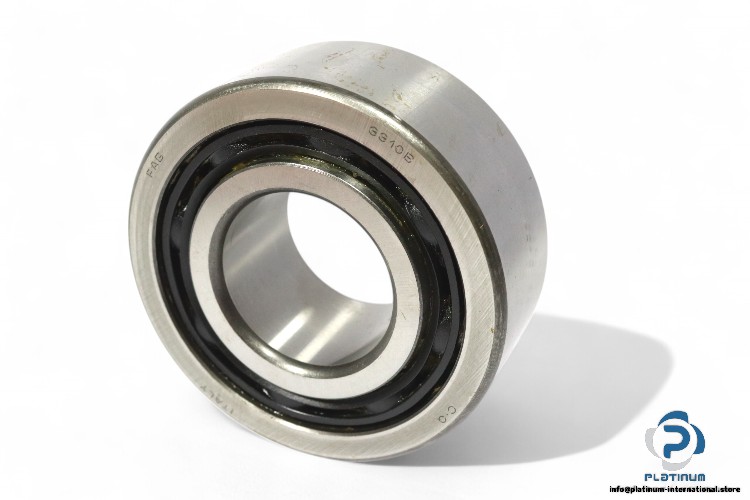

FAG 3310B.TVH Double Row Angular Contact Ball Bearing
The FAG 3310B.TVH Double Row Angular Contact Ball Bearing is designed for high-load applications with exceptional performance. This bearing features a solid cage made of glass-fiber reinforced polyamide PA66 for enhanced durability and stability, and is suitable for a wide range of precision industrial applications.
Manufacturer: FAG
Type: DOUBLE ROW ANGULAR CONTACT BALL BEARING
Model: 3310B.TVH
This FAG double row angular contact ball bearing offers high load capacity and reliability with a durable cage design, making it ideal for heavy-duty and high-speed applications in industrial machinery.
| Bore Diameter (d) | 50 mm |
| Outer Diameter (D) | 110 mm |
| Width | 44.4 mm |
| Dynamic Load Rating | 93,000 N |
| Static Load Rating | 70,000 N |
| Reference Speed | 6,300 1/min |
| Limiting Speed | 6,500 1/min |
| Fatigue Load Limit | 4,850 N |
| Cage | TVH, Solid cage made of glass-fiber reinforced polyamide PA66 |
