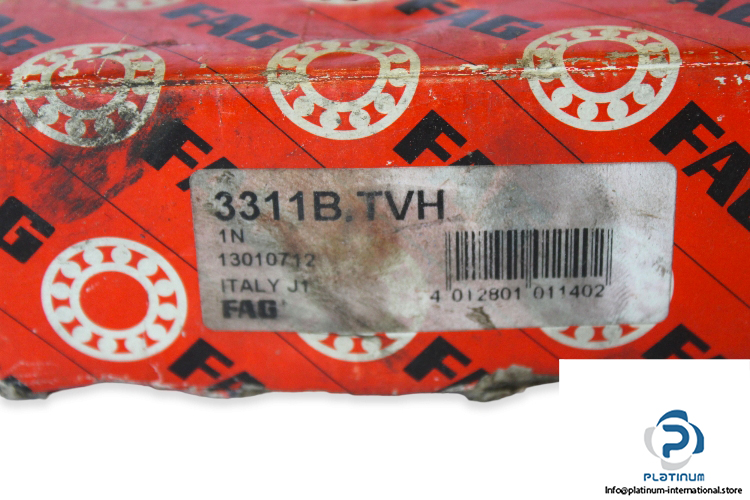

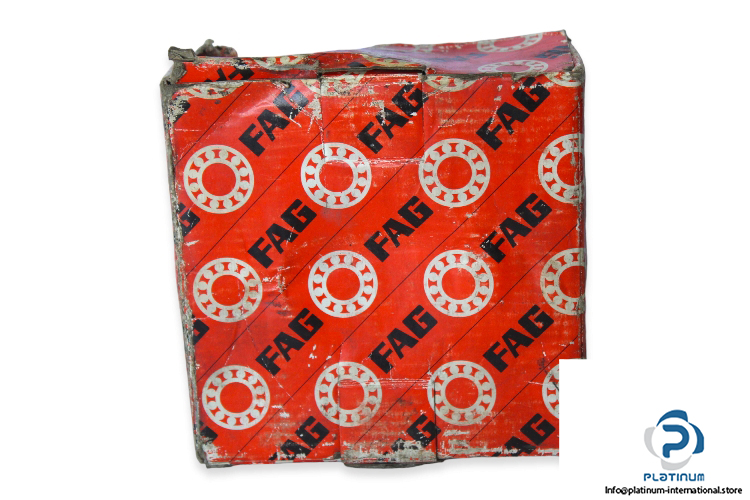

FAG 3311B.TVH Double ROW Angular Contact Ball Bearing
Manufacturer: Schaeffler FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3311 B.TVH
Replaces: 3311-BD-XL-TVH-L285
Dimensions
Bore Diameter d: 55 mm
Outer diameter D: 120 mm
Width B: 49.2 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 116000 N
Static C0r: 88000 N
Fatigue load rating : 6100 N
Limiting Speed : 4350 rpm
Reference speed: 5900 rpm
Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
Operating temperature: -20 … +120 °C
