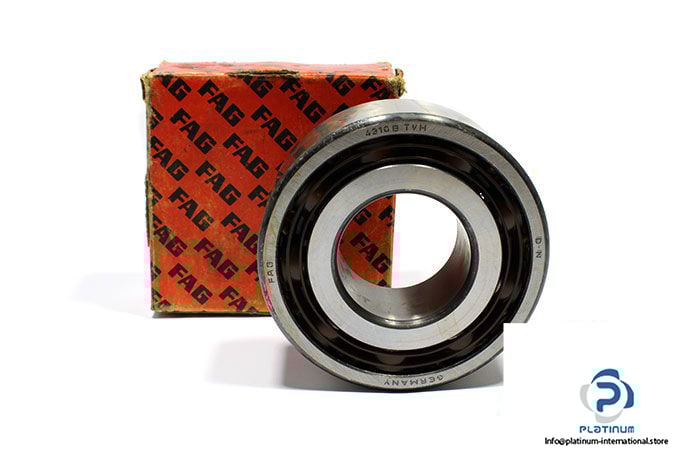

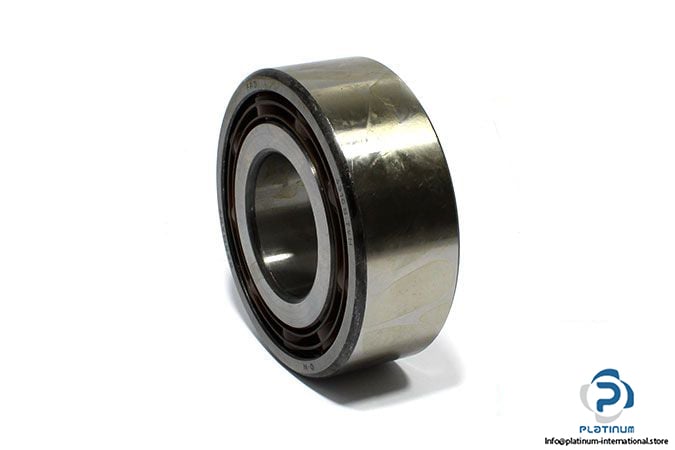

FAG 4310B.TVH Double ROW Deep Groove Ball Bearing

Manufacturer: Schaeffler FAG

Type: Double Row Deep Groove Ball Bearing

Model: 4310-B-TVH

Replaces: 4310 B.TVH

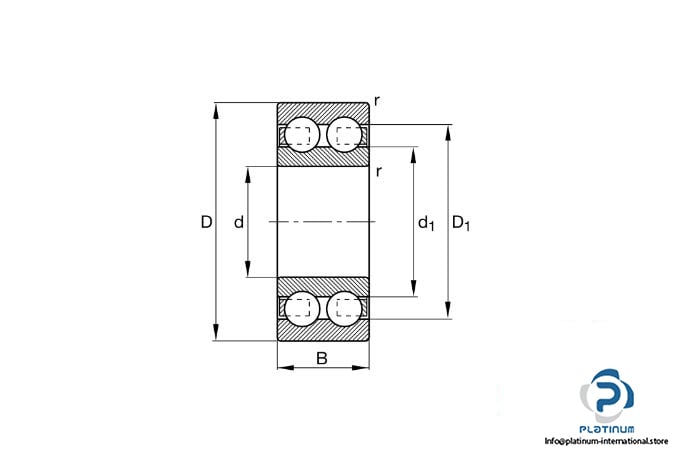

Dimensions

Bore Diameter d: 50 mm

Outer diameter D: 110 mm

Width B: 40 mm

Chamfer dimension r _min: 2 mm

Basic load ratings:

Dynamic C_r: 92000 N

Static C_0r: 76000 N

Fatigue load limit C_ur: 4600 N

Reference speed: 5000 rpm

Limiting speed: 4800 rpm

Operating temperature:  -20 … +120 °C

Cage: Solid cage made of glass-fiber reinforced polyamid PA66

Weight: 1.65 kg
