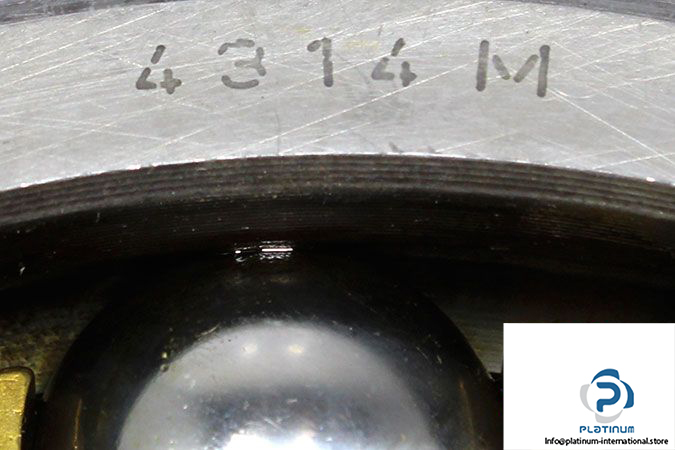

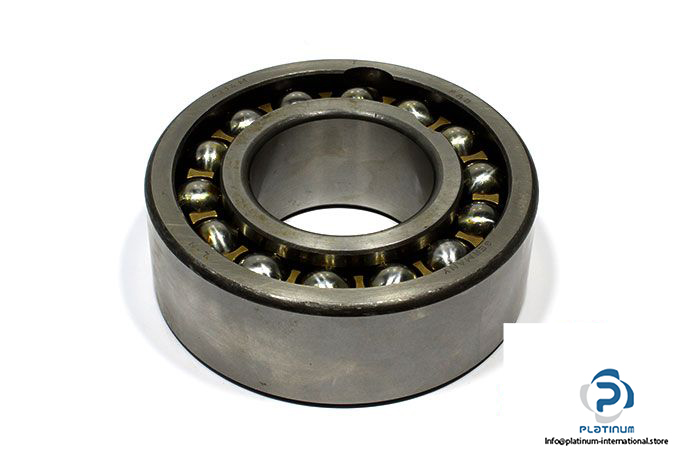

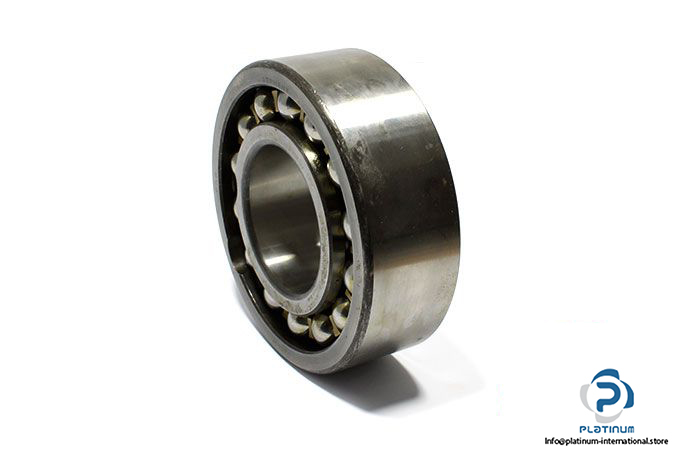

FAG 4314 M Double ROW Deep Groove Ball Bearing

Manufacturer: Schaeffler FAG

Type: Double Row Deep Groove Ball Bearing

Model: 4314 M

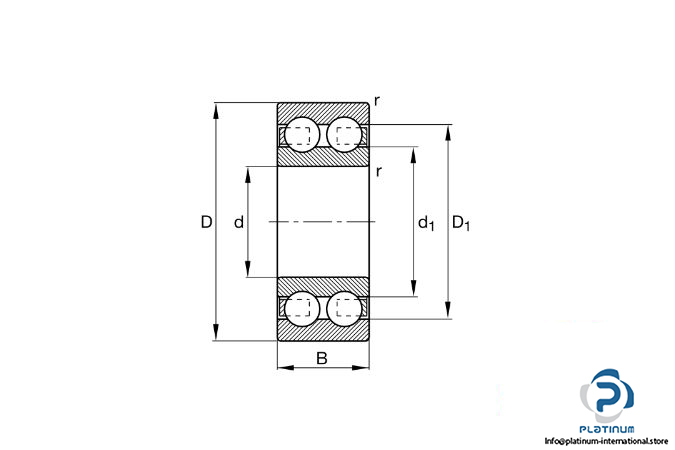

Dimensions

Bore Diameter d: 70 mm

Outer diameter D: 150 mm

Width B: 51 mm

Chamfer dimension r _min: 2.1 mm

Basic load ratings:

Dynamic C_r: 156000 N

Static C_0r: 131000 N

Fatigue load limit C_ur: 7900 N

Cage: Brass

Weight: 4.36 kg
