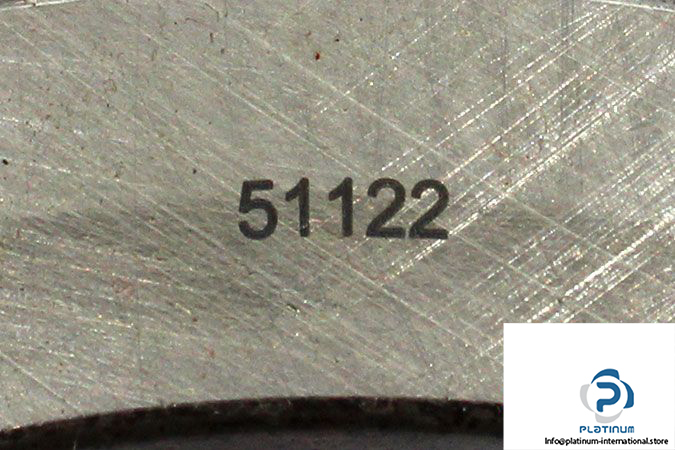

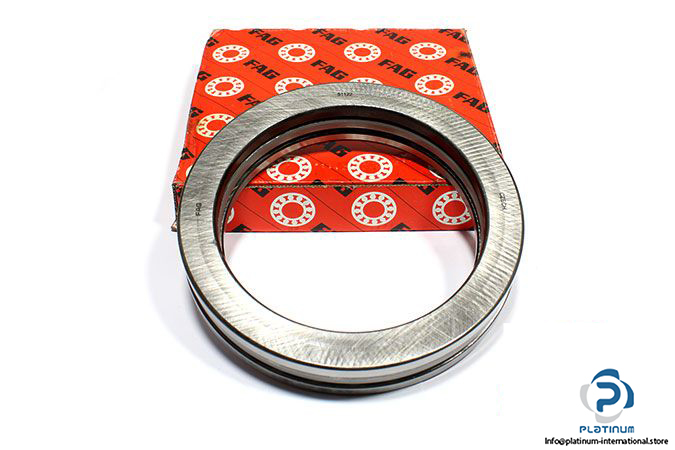

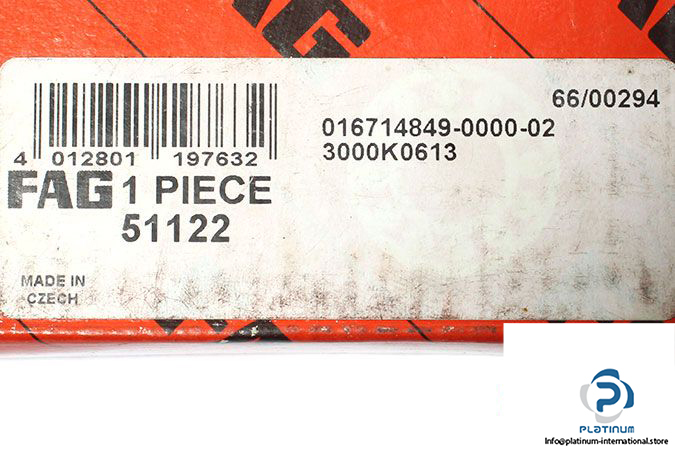

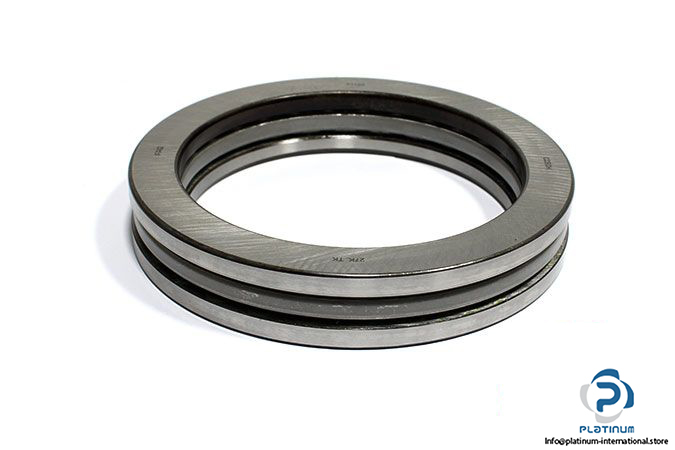

FAG 51122 Axial Deep Groove Ball Bearing

Manufacturer: FAG

Type: Axial Deep Groove Ball Bearing single direction

Model: 51122

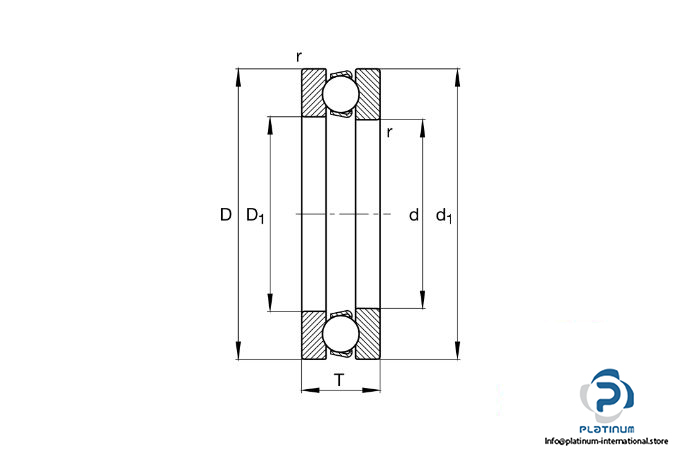

Dimensions

Inner diameter shaft washer d: 110 mm

Outer diameter housing washer D: 145 mm

Height T: 25 mm

Outer diameter shaft washer d₁: 145 mm

Minimum chamfer dimension r_min:  1 mm

Basic load ratings, axial:

Dynamic C_a: 87000 N

Static C_0a: 290000 N

Fatigue load rating C_ua: 11600 N

Limiting speed: 3350 rpm

Reference speed: 2800 rpm

Cage: Steel Sheet Metal

Operating temperature: -30 … +150 °C

Weight: 1 kg
