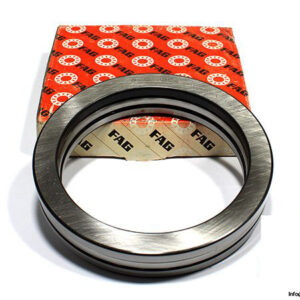

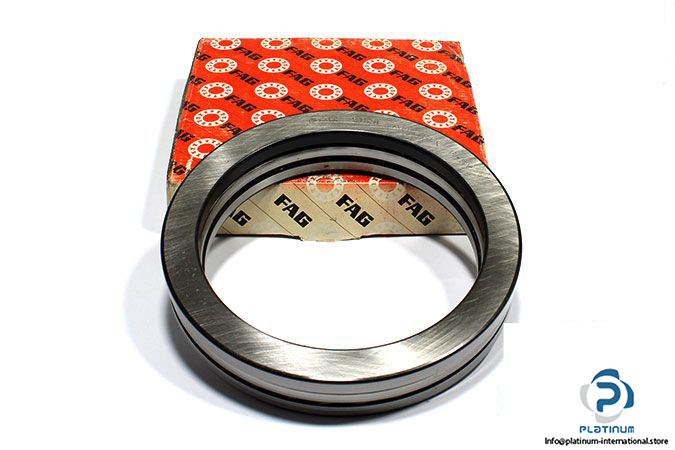

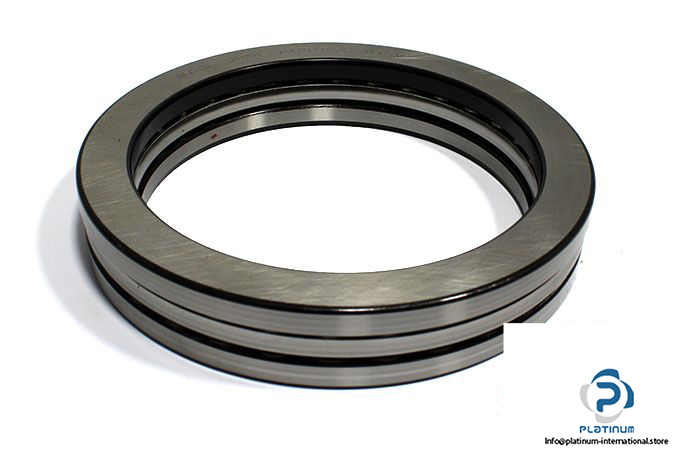

FAG 51128 Axial Deep Groove Ball Bearing

Manufacturer: FAG

Type: Axial Deep Groove Ball Bearing single direction

Model: 51128

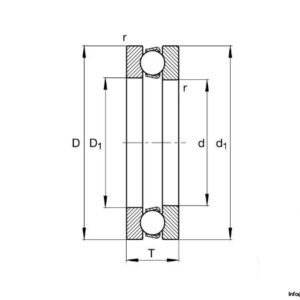

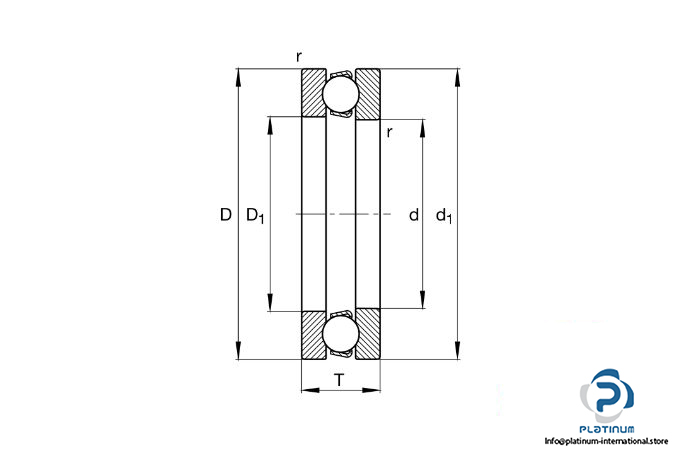

Dimensions

Inner diameter shaft washer d: 140 mm

Outer diameter housing washer D: 180 mm

Height T: 31 mm

Outer diameter shaft washer d₁: 178 mm

Minimum chamfer dimension r_min: 1 mm

Basic load ratings, axial:

Dynamic C_a: 111000 N

Static C_0a: 400000 N

Fatigue load rating C_ua: 14600 N

Limiting speed: 2750 rpm

Reference speed: 2330 rpm

Cage: Steel Sheet Metal

Operating temperature: -30 … +150 °C

Weight: 1.9 kg
